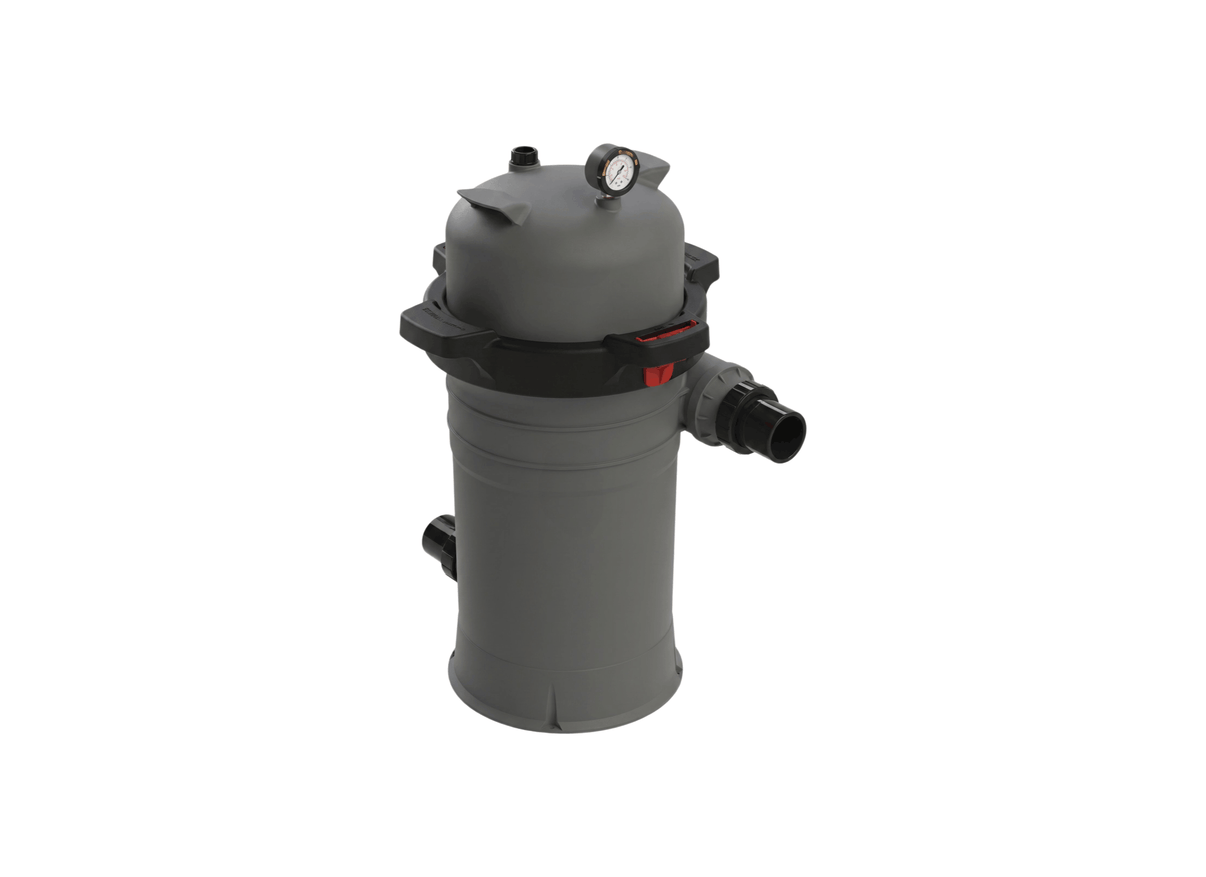

PoolControls Zenclean Cartridge Filter 100G Single Element Pool & Spa Filter with UV Resistant Tank

Compact pool and spa filtration is provided by the Zenclean Cartridge Filter 100, using a single-element cartridge housed within a high-strength, UV-resistant tank. Its low-height design is suited to filtration systems where available installation space is limited.

A large one-piece cartridge element provides the filtration surface for trapping dirt and debris during operation. Unlike sand filtration, the cartridge system does not require backwashing, while the filter element can be cleaned and rinsed with a garden hose.

The filtration assembly has 50 mm inlet and outlet connections for integration with the pool filtration system. Maximum operating pressure is specified at 50 PSI, with a maximum operating temperature of 40°C (104°F). An indicative pressure gauge provides an indication of when servicing may be required.

Maintenance access is supported by an easy-grip lid handle, knee-height rigid tank base and locking ring with quick-release latch. An air relief valve is included in the upper assembly, while the UV-resistant plastic tank forms the main housing of the filter.

Features

• Single cartridge element handles filtration within the filter tank.
• High-strength, UV-resistant tank forms the main filter housing.
• Low-height construction suits systems with limited installation space.
• 50 mm inlet and outlet connections provide pool system connections.
• Large one-piece cartridge element provides the filtration surface for dirt and debris.
• Easy-grip lid handle provides access to the upper filter assembly.
• Indicative pressure gauge helps indicate when filter servicing may be required.
• Knee-height rigid base provides access for cartridge replacement.
• Air relief valve allows trapped air to be released from the tank.
• Quick-release locking ring allows the top tank to be removed and installed.
• Cartridge element can be cleaned and rinsed using a garden hose.
• Maximum operating pressure is specified at 50 PSI.
• Maximum operating temperature is specified at 40°C (104°F).
