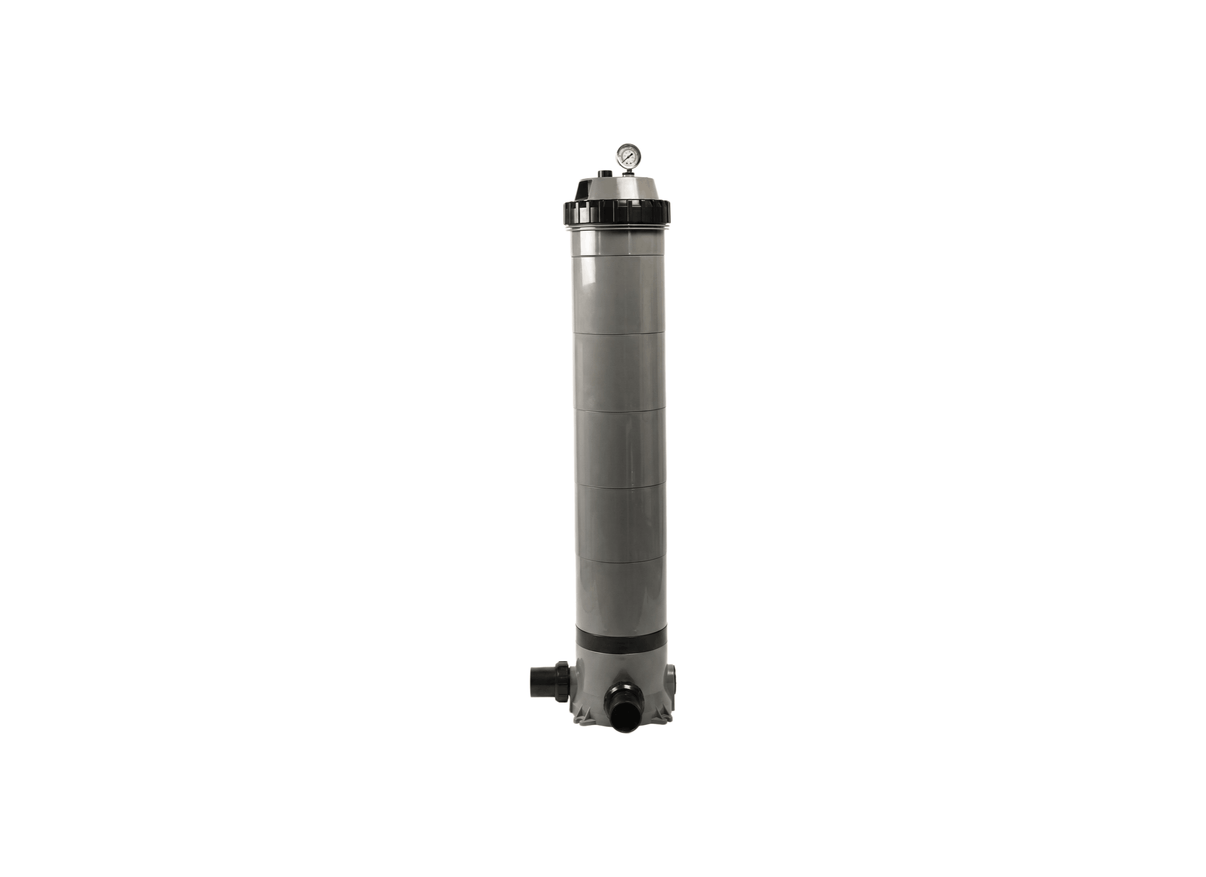

PoolControls Zenclean Cartridge Filter 200B 15 Micron Pool & Spa Filter with UV Resistant Tank

Higher-capacity cartridge filtration for residential and semi-commercial pools is provided by the Zenclean Cartridge Filter 200B. Its UV-resistant tank is fitted with a heavy-duty ring-lock lid, while the B Series assembly includes a universal standard union connection, pressure gauge and cartridge filter element.

The 200B cartridge element provides a 16.82 m² filter area with a 15 micron rating and 180 folds. Its maximum flow rate is listed as 680 L/Min (120 GPM, 27.2 m³/hr), with a flow velocity of 0.375 GPM/ft² (0.917 m³/hr/m²). The valve connection is 2.0 inch / 63 mm.

Tank operating limits are specified at a maximum pressure of 250 kPa / 36 psi (2.5 bar) and a maximum temperature of 40°C (104°F). The cartridge element is Ø183 mm in diameter and is listed as 544.5 x 2 mm in length in the technical table.

An oil-filled pressure gauge provides an overview of operating pressure, while the screw-type air bleed valve releases trapped air from inside the tank. The heavy-duty ring-lock lid provides access to the cartridge element for cleaning and replacement.

Features

• UV-resistant tank forms the main housing for the cartridge filter.
• 16.82 m² filter area is provided by the 200B cartridge element.
• 15 micron cartridge element provides the specified filtration rating.
• 180-fold cartridge element is specified for the 200B model.
• Heavy-duty ring-lock lid provides access to the cartridge element.
• Screw-type air bleed valve allows trapped air to be released from the tank.
• Oil-filled pressure gauge provides a view of operating pressure.
• Universal standard union connection is included in the B Series configuration.
• 2.0 inch / 63 mm valve connection provides the specified connection size.
• Maximum flow rate figures are listed as 680 L/Min (120 GPM, 27.2 m³/hr).
• Maximum operating pressure is rated at 250 kPa / 36 psi (2.5 bar).
• Maximum temperature is specified at 40°C (104°F).
