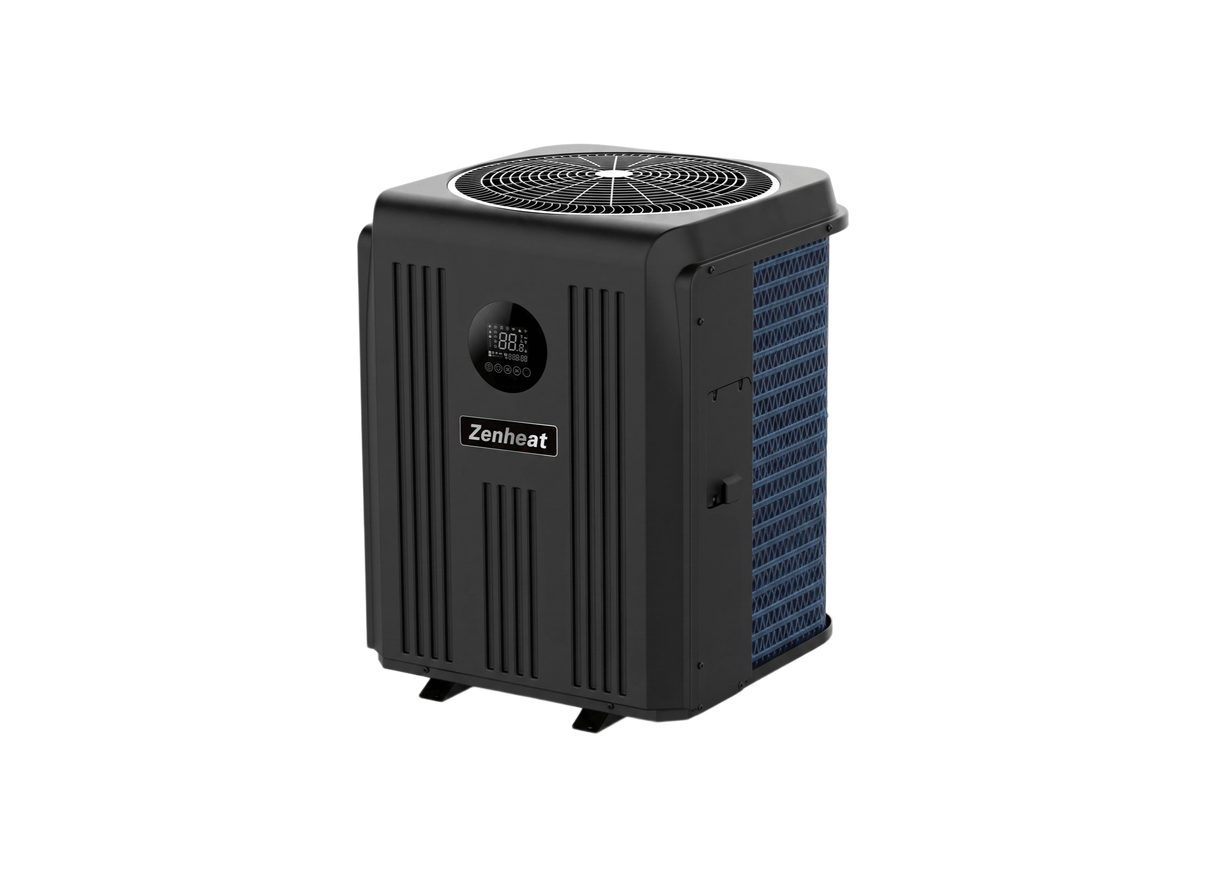

PoolControls Zenheat ZHT17 Vertical Airflow Inverter Pool Heater with R32 Refrigerant

Configured for residential pool and spa heating, the Zenheat ZHT 17 uses a fully inverter air-source heat pump system with R32 refrigerant and a titanium heat exchanger. The DC inverter arrangement is designed with vertical airflow through the top discharge outlet, while automatic defrosting is provided by a 4-way valve. The unit operates from a 220–240V, single-phase, 50Hz power supply.

The ZHT 17 has a maximum power input of 2.50 kW and maximum current of 11.9 A, with a specified water flow volume of 5.5 m³/h. Its working temperature range is -15°C to 43°C, defining the temperature conditions stated for operation. The model's electrical input and water-flow specifications distinguish it within the ZHT range.

The heater uses an ABS casing with an IPX4 waterproof level. Noise is specified at 43–55 dB(A) at 1 metre and 23–35 dB(A) at 10 metres. Its net weight is 57 kg, with a gross weight of 70 kg, providing the product and packaged weights for installation and handling considerations.

Net dimensions measure 650 × 650 × 770 mm, while package dimensions are 680 × 720 × 910 mm. The ZHT 17 therefore uses the same stated physical and package dimensions as the ZHT 13, while retaining its own power input, current, water flow and noise specifications.

Features

• A high-end Mitsubishi compressor forms part of the ZHT 17 heating configuration.
• The fully inverter system is presented with an COP of up to 16.
• Built-in WiFi provides an integrated connection for heater control.
• The premium touchscreen display gives direct access to the unit's operating interface.
• Heating, cooling and automatic modes provide the operating selections specified for the range.
• Multi-protection functions are incorporated into the heater's operating configuration.
• The titanium heat exchanger provides the specified heat exchange arrangement.
