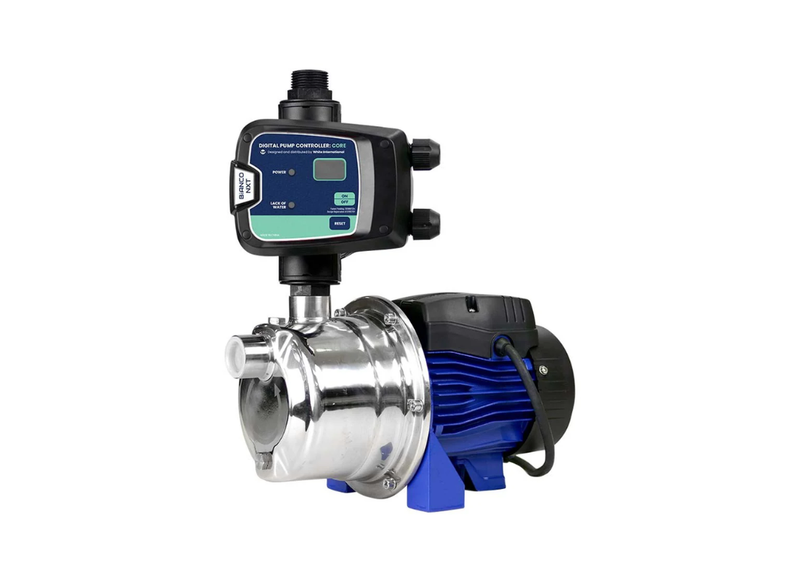

Bianco INOX90S2NXT Stainless Steel Self Priming Jet Pressure Pump with NXT Controller
Australia-Wide
(08) 9240 2992
Official Bianco
Peace of Mind
Product Overview
The Bianco INOX90S2NXT is a compact stainless steel self-priming jet pressure pump designed for reliable household water pressure and rainwater tank supply systems. Built with corrosion-resistant stainless steel pump components and supplied with the Bianco iCON nXt intelligent controller, the pump automatically starts and stops based on water demand while protecting the system from dry running and pressure fluctuations. It is ideal for domestic water supply, irrigation, garden watering, and general pressure boosting applications.
Powered by a 0.75kW single-phase motor, the INOX90S2NXT delivers up to 78 litres per minute with a maximum head of approximately 50 metres. The self-priming jet pump design allows suction lifts up to about 9 metres, making it suitable for installations where the water source is below the pump such as tanks, wells, or underground storage.
The integrated nXt intelligent controller provides advanced protection and monitoring features including dry-run protection with automatic restart, anti-cycle protection to prevent rapid pump cycling, and a digital display for real-time system pressure monitoring. The controller also includes a built-in check valve and automatic restart after power interruption, ensuring consistent and reliable water supply for domestic pressure systems.
FEATURES
- 0.75kW single phase motor (240V)
- Maximum flow: 78 litres per minute
- Maximum head: 50 metres
- Self priming jet pump design
- Corrosion resistant stainless steel pump body
- Bianco iCON nXt intelligent controller
- Automatic start and stop operation
- Dry run protection with automatic restart
- Anti-cycle protection to prevent rapid pump cycling
- Digital pressure display for system monitoring
- 1" inlet and 1" outlet connections
- Designed for clean water pressure systems
SPECIFICATIONS
| Max Flow | 78 L/Min |
| Max Head | 50 m |
| Power | 0.90 kW / 240v |
| Rated Current | 10 Amps |
| Suitable For | Domestic Water Supply / Irrigation / Pressure Boosting / Water Transfer |
| Body Material | Stainless Steel |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What intelligent control and safety features are included for system protection?
Real-time pressure monitoring and anti-cycle safeguards are integrated into the INOX90S2NXT via an iCON nXt controller.
What maximum flow and head performance can be expected?
The INOX-90-S2-NXT generates a 50-metre maximum head while delivering 78 litres per minute of clean water.
What construction materials and port connection dimensions are built into the body?
Corrosion-resistant stainless steel forms the housing of the INOX 90 S2 NXT, featuring 1-inch inlet and outlet connections.
What types of domestic water tasks are suitable for this self-priming system?
Garden watering, rainwater harvesting, and household pressure boosting are ideal tasks for the INOX90S2NXT.
What motor specifications and electrical supply power this assembly?
A 0.75kW single-phase 240V motor energizes the INOX_90_S2_NXT for dependable everyday performance.
