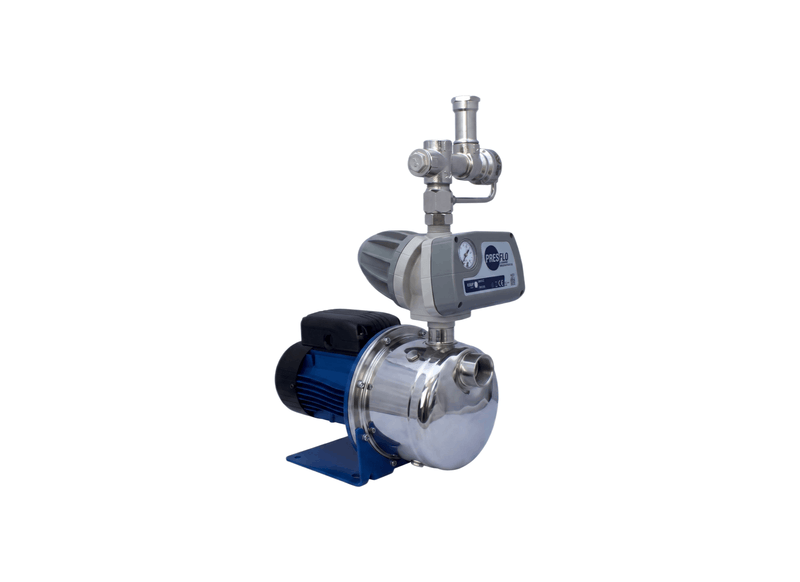

Goulds XBGR75-PC-AS Stainless Steel Built-In Ejector Jet Pump for Rainwater Harvesting with Aquasaver Valve
Australia-Wide
(08) 9240 2992
Official Goulds
Peace of Mind
Product Overview
Configured for rainwater harvesting with higher flow capability, the Goulds XBGR75PC-AS combines a self-priming centrifugal jet pump with an Aquasaver rainwater-to-mains diversion valve. This complete system automatically switches between rainwater storage and mains water supply depending on tank level.
The AISI 304 stainless steel pump body delivers a maximum head of 34 metres and a maximum flow rate of 65 litres per minute. The 0.55 kW motor operates on 220–240 V single-phase. Suction is Rp 32 mm and discharge is Rp 25 mm. The pump handles clean liquids from -10°C to +40°C.
The Aquasaver valve provides automatic switching between rainwater and mains supply based on tank level. The self-priming design allows the pump to draw water from rainwater tanks below pump level, subject to the limits specified in the technical documentation. The motor enclosure is IP55 with Class F insulation, and automatic reset thermal overload protection is included.
The unit is supplied with a pre-wired terminal junction box. This system is intended for residential rainwater harvesting where higher flow and automatic mains backup are required. Installation requires a level, frost-protected surface with adequate ventilation.
FEATURES
- Aquasaver valve automatically switches between rainwater and mains supply.
- Self-priming design enables operation with suction lift from rainwater tanks.
- 0.55 kW motor provides higher flow capability for harvesting systems.
- Rp 32 mm suction and Rp 25 mm discharge connections for standard plumbing integration.
- IP55 motor enclosure protects against dust and moisture ingress.
- AISI 304 stainless steel construction for corrosion resistance.
- Automatic reset thermal protection safeguards the motor during operation.
SPECIFICATIONS
| Max Flow | 65 L/Min |
| Max Head | 34 m |
| Power | 0.55 kW / 240v |
| Suitable For | Water Supply / Irrigation |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 32 mm |
| Outlet Size | 25 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Is the system configured for rainwater harvesting and automatic water-source switching?
The Acquasaver Rainwater Diverter System is combined with the XBGR series pump for rainwater harvesting, with the system also suited to garden, irrigation and domestic applications using the XBGR75-PC-AS.
What material is used for the pump body construction?
A 304 Stainless Steel pump body provides the casing construction specified for the XBGR_75PC-AS, supporting the pump's stainless-steel design.
What maximum operating pressure can the pump accommodate?
With a maximum operating pressure of 6 Bar, the upper pressure limit specified for the XBGR75/PC-AS is clearly defined for operation.
What inlet connection size is provided on the pump?
A 1-inch inlet connection is provided on the pump, matching the specified inlet size for XBGR-75PC-AS.
What power ratings are specified for the pump motor?
Rated at 0.75 kW P1 and 0.55 kW P2, the pump power specification for XBGR75_PC-AS defines both stated power ratings.
