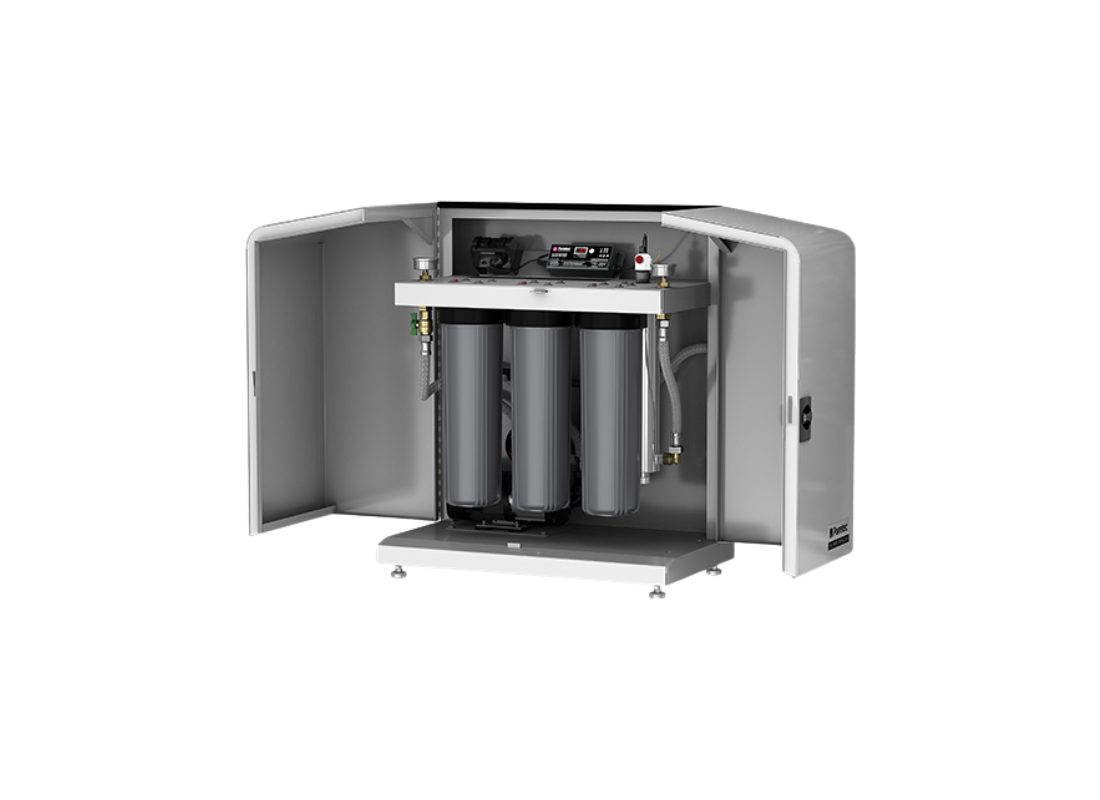

Puretec HYBRID-P3-LF Weatherproof UV Rainwater Filter with CMB SP 3 47 Pump Max 50LPM 875kPa

Environmental demands encountered in external whole house applications are addressed by the HYBRID-P3-LF weather proof rainwater treatment package. This model from the Puretec Hybrid P series integrates high flow triple filtration with ultraviolet disinfection and an integrated pressure boosting pump. It is suitable for external installation in a floor mounted configuration using its lockable cabinet. The unit provides a technical solution for managing sediment and microbiological contaminants.

The housing assembly is manufactured from durable materials and features a lockable cabinet with gull wing access doors for maintenance accessibility. It incorporates 20 inch MaxiPlus housing bowls and a grade 304 stainless steel Radfire UV chamber. Internal filtration is provided by PL05MP2 pleated sediment CB05MP2 carbon block and PX01MP2 polyspun cartridges. The system features an integrated CMB-SP 3-47 pressure pump to manage distribution. It operates in liquid temperatures up to 52 degrees Celsius.

This system achieves a maximum flow rate of 50 L/Min and operates across a pressure range of 300 to 875 kPa. Plumbing is connected via 1 inch BSP male fittings at 25 mm. The assembly utilizes an RL6 UV lamp and operates on a 240 V electrical supply. The triple stage filtration process achieves a nominal 1 micron rating removing the finest silt and sand to allow for clear water for UV disinfection efficiency during high volume distribution through the distribution loops.

Low carbon and energy efficiency is supported by the lockable weather proof cabinet and an electronic controller that monitors lamp life and system status. The unit follows AS 3497 certifications for water treatment and includes a quartz sleeve RQS6 to isolate the UV lamp from liquid contact. Radfire technology provides natural chemical free disinfection killing 99.9 percent of bacteria and cysts. Routine servicing is facilitated by the HR-G13R11P kit containing filters and the RL6 lamp.

• Weather proof lockable cabinet features gull wing access doors for protection of internal components.
• Integrated CMB-SP 3-47 pressure pump provides water boosting for large whole house distribution.
• Radfire ultraviolet technology provides 99.9 percent reduction of bacteria and germs using a natural process.
• Triple stage filtration includes a 20 inch MaxiPlus pleated sediment cartridge for removal of heavy silt.
• Integrated carbon block filter stage targets the reduction of chlorine taste odour and chemicals.
• Polyspun sediment cartridge achieves 1 micron filtration for the removal of fine silt before UV disinfection.
• Electronic controller monitors RL6 lamp status and features audible failure alarms and a digital countdown.

Warranty: 3 year warranty is 1 year parts and labour, 2 years parts only. Excludes consumables.
