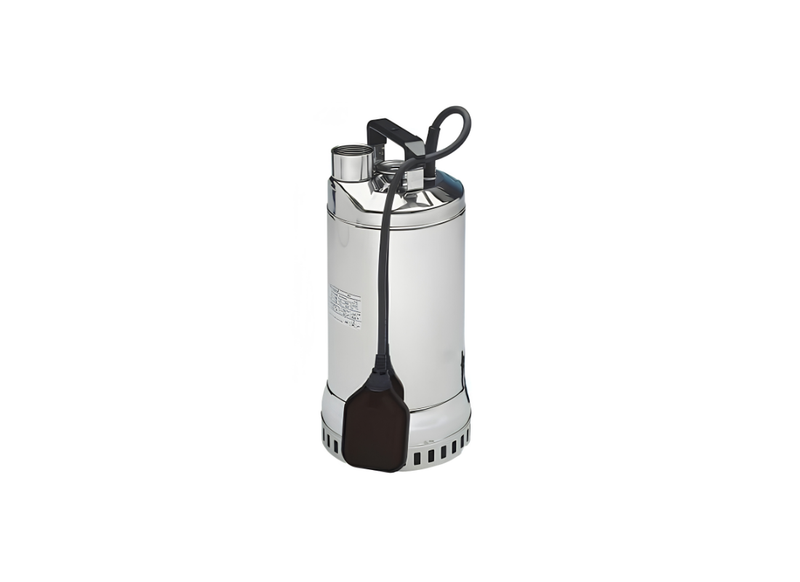

Lowara DIWA11 Stainless Steel Watertight Motor Drainage Pump for Domestic Pumping with Open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Engineered to optimize fluid velocity paths and hydraulic stability, the DIWA11 grey water pump manages high-capacity transfer. Representing submersible pumps for clean and slightly dirty water manufactured in AISI 304 stainless steel, this architecture supports the extraction of fluids from cellars. The system assists the continuous pumping of domestic wastewater.
Fluid is propelled by an open impeller connected to a single-phase 240v configuration. The watertight motor utilizes a 1.1 kW output capacity, drawing 6.83 Amps. The assembly delivers a max flow of approximately 375 L/Min and achieves a max head of 13.4 m. The dry motor is cooled by the pumped liquid, permitting operation up to 50°C.
Wear along the primary shaft is controlled by the DRIVELUB SEAL SYSTEM, a seal layout encompassing an oil chamber. This merges a V-ring with a silicon carbide seal to supply a barrier against infiltration. The diffuser plate is coated with polyurethane for resistance to abrasion. Intake is managed via a 32 mm inlet and fluid exits through a 32 mm outlet.
With a net weight of 17 kg, the unit provides stable positioning. A pre-assembled float switch governs automatic operation, activating at a minimum liquid level of 25 mm. The device is equipped with a 10-meter H07RN-F power cord, matching IPX8 standards for absolute submersion. This layout passes suspended solids up to 8 mm.
Features
- Manufactured utilizing EN 10088-1-X5CrNi18-10 stainless steel for the impeller and motor casing.
- Features an internal capacitor integrated directly into the electrical starting mechanism.
- Equipped with a Class F insulation framework designed to withstand internal temperatures up to 155°C.
- Includes specialized thermal overload protection built to interrupt power during critical heat events.
- Functions reliably under a maximum immersion depth limit of 7 meters inside collection sumps.
- Constructed with standard NBR elastomers for consistent sealing flexibility across the shaft line.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum dynamic elevation head is certified for this submersible dewatering drainage pump?
Providing in commercial piping networks, the DIWA11 attains a peak dynamic elevation head of approximately 13.4 m propelling fluid upward.
Regarding plumbing flow distribution, what peak liquid volume and connection port sizing apply to this submersible dewatering drainage pump?
Dispatching into plant fluid networks, the DIWA-11 sustains a maximum delivery flow capacity of approximately 375 L/Min plumbed with Rp 1-1/2" (40 mm) discharge threaded port.
To protect against corrosive fluid attack, what alloy metallurgy and mechanical seals are engineered into this submersible dewatering drainage pump?
Formed against corrosive liquid exposure, the DIWA 11 features metallurgy of AISI 304 stainless steel pump casing, diffusers, and polyurethane-coated open impeller complemented by precision mechanical seals to eliminate corrosion leaks.
For proper power connection, what motor kilowatt power and electrical supply voltage current support this submersible dewatering drainage pump?
Incorporating under steady electrical current, the DIWA_11 is driven by an electric motor rated at 1.1 kW (1.5 HP) powered by 220–240 V, 50 Hz, single-phase drawing 6.83 A.
How do the maximum immersion depth limit and permissible fluid operating temperature protect this submersible dewatering drainage pump?
Operating under wet well operations, the DIWA11 maintains a maximum 7 m immersion depth with allowable liquid temperatures up to 40°C and supports 8 mm suspended solids.
