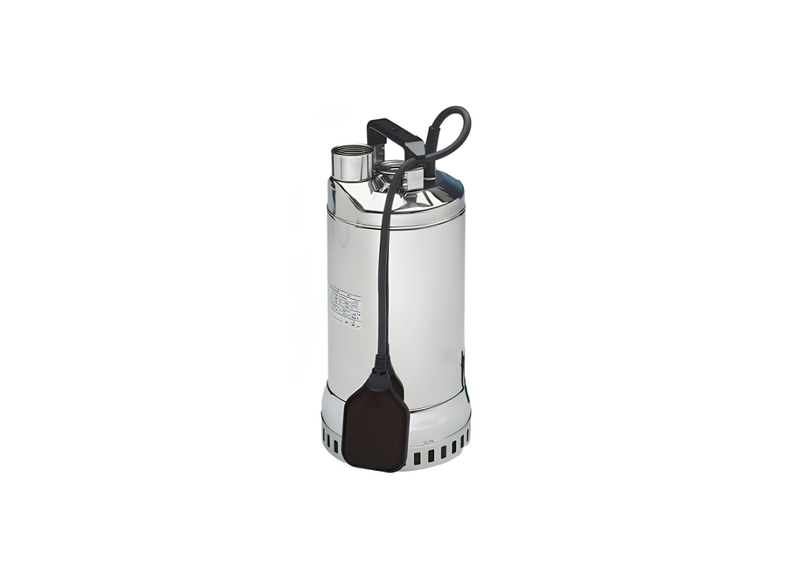

Lowara DIWA5T Stainless Steel 3-Phase Drainage Pump for Cellar Draining with Open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The DIWA5T model handles the operational challenges of managing domestic wastewater. Incorporating submersible pumps for clean and slightly dirty water manufactured in AISI 304 stainless steel, this grey water pump manages the extraction demands associated with emptying tanks and processing output from residential washing machines without a float switch.
Powered by a three-phase 415v electrical configuration, the motor generates 0.55 kW of output drawing a rated current of 1.48 Amps. The hydraulic assembly reliably achieves a maximum flow rate of approximately 250 L/Min and reaches a maximum head of 8.6 m. The dry electric motor is cooled by the pumped liquid, safely permitting activation up to 50°C.
Wear is controlled by the DRIVELUB SEAL SYSTEM, a multiple seal layout encompassing an internal oil chamber. This system merges a V-ring with a silicon carbide mechanical seal, creating a barrier against infiltration. The diffuser plate is coated with polyurethane for resistance to hydraulic abrasion. Fluid is driven by an open impeller through a 32 mm inlet.
Weighing exactly 11 kg, the device supports stable positioning within sumps. The structural casing delivers IPX8-rated protection for absolute underwater submersion. Class F insulation keeps the electrical layout secure, and the assembly is supplied with a 10-meter H07RN-F power cord, supporting the transfer of suspended solids up to 8 mm.
Features
- Manufactured utilizing EN 10088-1-X5CrNi18-10 stainless steel for the upper cover and robust motor casing.
- Operates via a standard three-phase electrical layout without an integrated pre-assembled float switch.
- Features a standard lip seal that is continuously lubricated by the internal fluid mechanism.
- Equipped with a motor configured for 2-pole operation operating at a standard 50 Hz frequency.
- Constructed with standard NBR elastomers integrated directly into the mechanical seal configuration.
- Endures a maximum immersion depth limit of 7 meters inside designated ecological drainage pits.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Under nominal system flow, what maximum delivery volume and outlet diameter are maintained by this submersible dewatering drainage pump?
Issuing across connected plumbing lines, the DIWA5T achieves a peak delivery flow rate of approximately 250 L/Min across Rp 1-1/2" (40 mm) discharge threaded port.
Which alloy construction materials and mechanical face seal specifications prevent corrosion damage in this submersible dewatering drainage pump?
Created with alloy metallurgy components, the DIWA-5-T incorporates alloy construction of AISI 304 stainless steel pump casing, diffusers, and polyurethane-coated open impeller and mechanical face seals to resist corrosive fluid attack.
Which electrical motor power specifications and line voltage current draw power this submersible dewatering drainage pump?
Featuring by commercial electrical feeds, the DIWA 5 T draws 1.48 A through an electric motor rated at 0.55 kW (0.75 HP) operating on 380–415 V, 50 Hz, three-phase.
Under wet pit conditions, what maximum immersion depth and liquid temperature boundaries apply to this submersible dewatering drainage pump?
Operating across submersible wastewater pits, the DIWA_5_T operates with a maximum 7 m immersion depth across operating liquid temperatures up to 40°C and manages 8 mm suspended solids.
Across vertical water circuits, what peak dynamic lift head is delivered by this submersible dewatering drainage pump?
Achieving across vertical pipe runs, the DIWA5T delivers a maximum dynamic head rating of approximately 8.6 m to elevate fluid.
