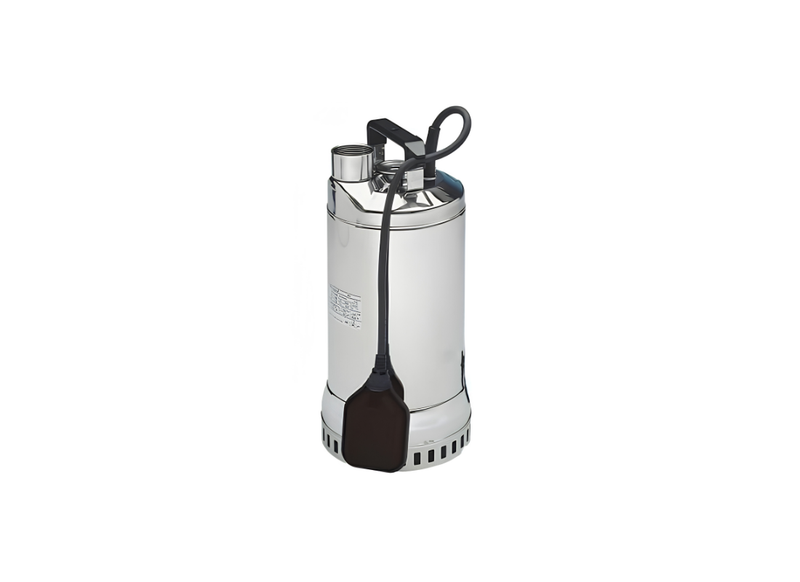

Lowara DIWA7T Stainless Steel Silicon Carbide Seal Drainage Pump for Ecological Applications with Open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Constructed around an AISI 304 stainless steel housing, the DIWA7T grey water pump provides high structural stability. By incorporating submersible pumps for clean and slightly dirty water manufactured in AISI 304 stainless steel, this unit handles continuous fluid tasks. The casing is engineered to assist the emptying of tanks and domestic wastewater loops.
This three-phase 415v unit utilizes a 0.75 kW motor that draws a rated current of 2.46 Amps. The system achieves a maximum flow of approximately 325 L/Min and projects liquid to a maximum head of 11.2 m without requiring a float switch. The dry electric motor is actively cooled by the pumped liquid, permitting activation provided the temperature stays below 50°C.
To protect the internal chamber, the assembly employs the DRIVELUB SEAL SYSTEM, utilizing a V-ring alongside a silicon carbide mechanical seal within an oil chamber. The diffuser plate is heavily coated with polyurethane, supplying resistance to abrasion. Liquid enters through a 32 mm base inlet and exits via a 32 mm threaded outlet.
With a documented net weight of 13 kg, the device provides reliable positioning within catchments. The unit is fitted with a 10-meter H07RN-F power cord and delivers IPX8-rated protection for submersion. Class F insulation ensures the electrical layout remains completely secure, allowing the pump to safely pass suspended solids up to 8 mm.
Features
- Manufactured utilizing EN 10088-1-X5CrNi18-10 stainless steel for the structural shaft end and hardware.
- Designed specifically for three-phase electrical environments without a pre-assembled automatic float switch.
- Features a standardized 2-pole motor architecture designated for 50 Hz industrial power networks.
- Equipped with a thermoplastic polyurethane diffuser configuration to withstand harsh operational abrasion.
- Constructed to endure a maximum immersion depth of 7 meters inside designated ecological drainage pits.
- Utilizes high-grade NBR elastomers for consistent internal sealing across varying fluid temperatures.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
In heavy fluid pumping, what metallurgy profile and mechanical face seals defend this submersible dewatering drainage pump against chemical attack?
Created with corrosion-resistant alloy materials, the DIWA7T provides alloy metallurgy of AISI 304 stainless steel pump casing, diffusers, and polyurethane-coated open impeller paired with mechanical seals to protect against corrosion.
Under commercial power supply, what motor kilowatt power and operating voltage feed energize this submersible dewatering drainage pump?
Featuring by facility power panels, the DIWA-7-T incorporates an electric motor rated at 0.75 kW (1.0 HP) connecting to 380–415 V, 50 Hz, three-phase with current feed of 2.46 A.
What maximum submersion depth in meters and fluid operating temperature limits are certified for this submersible dewatering drainage pump?
Operating across submerged utility sumps, the DIWA 7 T provides a maximum 7 m immersion depth with fluid operating temperatures up to 40°C and accommodates 8 mm suspended solids.
Which vertical elevation head performance is maintained by this submersible dewatering drainage pump?
Achieving across building service lines, the DIWA_7_T provides a peak dynamic lift head of approximately 11.2 m pushing water upward.
How many liters per minute does this submersible dewatering drainage pump discharge across its connected piping ports?
Issuing across facility piping networks, the DIWA7T supplies a maximum fluid delivery volume of approximately 325 L/Min through Rp 1-1/2" (40 mm) discharge threaded port.
