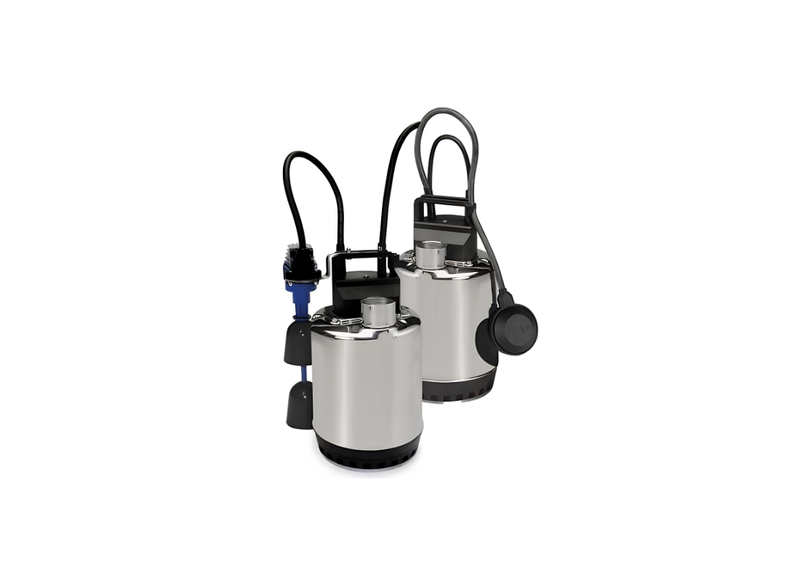

Lowara DOC3-GW Stainless Steel Magnetic Float Submersible Drainage Pump for Flooded Areas with Semi-open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Implementing advanced casing parameters, the DOC 3 Sump Pump c/w Magnetic Float Switch establishes a rigid barrier against subterranean exposure. Engineered for domestic wastewater transfer, this 4 kg net weight unit actively protects its central mechanics from abrasive conditions. On a single-phase 240v circuit, it draws 1.43 Amps to execute displacement.
The internal semi-open impeller allows the system to process suspended solid matter up to 10mm in diameter without creating obstructions. This hydraulic capability ensures that debris encountered during emergency draining moves freely. Fluid routing stabilizes pressure, expediting water outward through the designated 32 mm threaded discharge channel.
Confronting severe water ingress, the framework activates through a magnetic bell float switch. This specialized sequence ensures automated responses to rising fluid levels within confined spaces. Pushing a maximum flow of 135 L/Min, the pump systematically reduces standing water volumes with a 6.3 meter max head pushing capabilities.
Supporting mechanical efficiency, thermal protocols prevent the drive from surpassing safe thresholds. By utilizing the surrounding fluid medium as an active cooling agent, the assembly disperses generated heat safely beneath the 40°C limit. These integrated safeguards shield the unit from degradation during extensive drainage tasks.
Features
- Fabricated with an IPX8 protection classification
- Constructed utilizing 304 Stainless Steel and Noryl materials
- Motor operates with Class B 130 degree thermal insulation
- Submersion depth is rated to a maximum of 5 meters
- Supplied with a pre-assembled 10 meter power cord and plug
- Net Weight: 4 kg
SPECIFICATIONS
| Max Flow | 135 L/Min |
| Max Head | 6.3 m |
| Power | 0.25 kW / 240v |
| Rated Current | 1.43 A |
| Suitable For | Flooded Basements |
| Body Material | Noryl and 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What alloy metallurgy profile and mechanical face seal construction provide corrosion defense in this submersible drainage sump pump?
Specified against corrosive liquid exposure, the DOC3-GW provides alloy metallurgy of corrosion-proof technopolymer casing and stainless steel motor body paired with mechanical seals to protect against corrosion.
For safe power hookup, what motor kilowatt rating and electrical supply voltage feed run this submersible drainage sump pump?
Built under steady electrical current, the DOC3-GW incorporates an electric motor rated at 0.25 kW (0.33 HP) connecting to 220–240 V, 50 Hz, single-phase with current feed of 1.43 A.
Regarding submersible duty, what maximum immersion depth and fluid operating temperature limits apply to this submersible drainage sump pump?
Submerged in effluent pit environments, the DOC3 GW sustains a maximum 5 m immersion depth across fluid operating temperatures up to 40°C and accommodates 10 mm solids passage.
How high can liquid rise under the peak vertical elevation head of this submersible drainage sump pump?
Circulating in commercial piping networks, the DOC3_GW provides a peak dynamic lift head of approximately 6.3 m pushing water upward.
How much fluid flow in liters per minute is delivered through the discharge connection of this submersible drainage sump pump?
Releasing into plant fluid networks, the DOC3-GW supplies a maximum fluid delivery volume of approximately 135 L/Min through Rp 1-1/4" (32 mm) vertical discharge threaded port.
