SKU: DOC7-GW

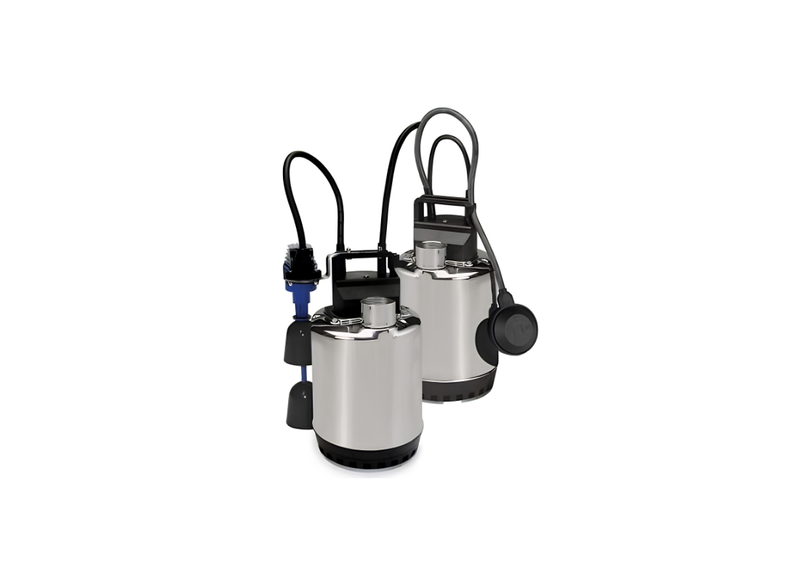

Lowara DOC7-GW Stainless Steel Thermal Submersible Drainage Pump for Laundry with Semi-open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Confronting the challenges of narrow infrastructure, the DOC7 Sump Pump c/w Magnetic Float Switch provides a response to precise fluid management. Engineered for sumps where traditional swings are obstructed, the magnetic bell float ensures automated activation. Operating on a 240v supply, the unit draws 3.47 Amps.
Routing liquids through the volute, the system generates a maximum flow of 225 L/Min. The assembly achieves a vertical delivery limit evaluated at a 10.8 meter max head, forcing wastewater outward via a 32 mm discharge channel with its robust 0.55 kW drive. The 6 kg net weight profile ensures it remains grounded during heavy fluid transfer cycles.
Formed to withstand underwater exposure, the housing resists abrasive elements. This minimizes degradation during continuous submersion. Internally, the semi-open impeller processes suspended solid debris up to 10mm in diameter, reducing the risk of internal blockages or operational halting.
Supporting long-term efficiency, built-in thermal overload protection governs the circuitry to prevent unsafe temperature spikes. The dry motor relies entirely on the pumped liquid medium to disperse generated heat safely below the maximum 40°C limit. These protocols shield the system from degradation during extensive drainage operations.
Features
- Integrates an internal capacitor specifically for starting phases
- Constructed with a primary shell of 304 Stainless Steel and Noryl
- Features a standard maximum operational submersion depth of 5 meters
- Includes a completely pre-assembled 10 meter electrical cord
- Built strictly to Class 130 (B) motor insulation parameters
- Net Weight: 6 kg
SPECIFICATIONS
| Max Flow | 225 L/Min |
| Max Head | 10.8 m |
| Power | 0.55 kW / 240v |
| Rated Current | 3.47 A |
| Suitable For | Flooded Areas |
| Body Material | Noryl and 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Across rising discharge lines, what dynamic elevation head does this submersible drainage sump pump maintain?
Providing across facility piping systems, the DOC7-GW produces a maximum dynamic head of approximately 10.8 m to lift fluid upward.
Across commercial plumbing lines, what peak delivery flow and discharge pipe sizing does this submersible drainage sump pump maintain?
Dispatching across commercial distribution lines, the DOC7-GW delivers a peak delivery flow rate of approximately 225 L/Min discharging through Rp 1-1/4" (32 mm) vertical discharge threaded port.
In commercial water loops, what alloy metallurgy and mechanical face seals guard this submersible drainage sump pump against corrosion?
Formed with resilient metallurgy construction, the DOC7 GW features alloy construction of corrosion-proof technopolymer casing and stainless steel motor body with mechanical face seals to resist corrosion and chemical attack.
What motor power in kilowatts and line voltage current feed power this submersible drainage sump pump?
Incorporating by industrial electrical lines, the DOC7_GW is powered by an electric motor rated at 0.55 kW (0.75 HP) running on 220–240 V, 50 Hz, single-phase with a current draw of 3.47 A.
How deep can this submersible drainage sump pump be submerged and what fluid operating temperature limits apply?
Submerged across submersible wastewater pits, the DOC7-GW provides a maximum 5 m immersion depth with fluid operating temperatures up to 40°C and accommodates 10 mm solids passage.
