SKU: DOC7

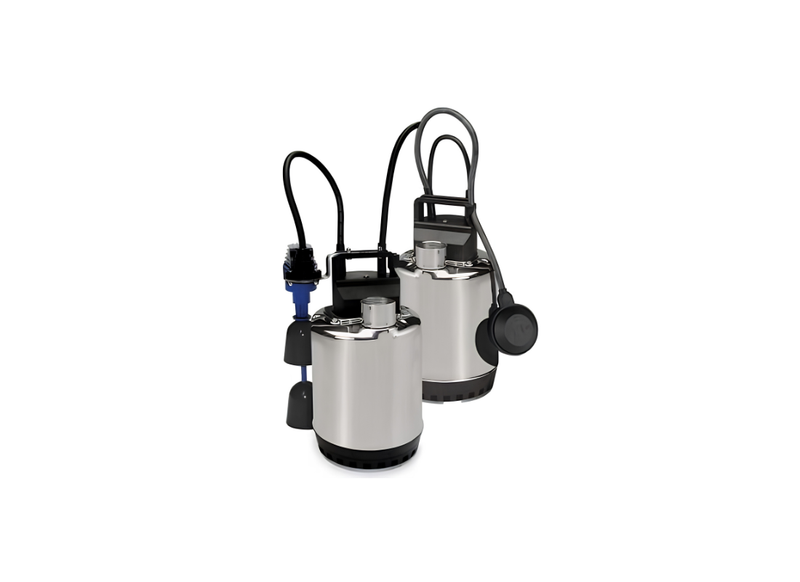

Lowara DOC7 Stainless Steel Dry Motor Submersible Drainage Pump for Emergency Draining with Semi-open Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Orchestrating efficient fluid velocity paths, the DOC7 Sump Pump c/w Float Switch maximizes hydraulic transfer rates across drainage infrastructure. By stabilizing internal pressures, the design channels accumulated liquids away from flooded areas. This synchronization reduces turbulence, allowing rapid dewatering on a single-phase 240v supply drawing 3.47 Amps.
Confronting domestic fluid management demands, the extraction framework triggers automated responses via a standard float switch. Pushing a maximum flow of 225 L/Min, it systematically reduces water volumes, achieving a 10.8 meter max head to support demanding vertical transfer requirements.
Formed around a corrosion-resistant exterior, the 6 kg net weight envelope establishes a barrier against subterranean elements. Shielding internal components from wastewater, the casting ensures stability. The semi-open impeller permits the passing of suspended solid matter up to 10mm in diameter, forcing extracted liquids out a 32 mm discharge port.
Assisting water removal, thermal protection governs the 0.55 kW drive circuitry to prevent temperature spikes. Relying on the surrounding liquid medium for heat dispersion, safeguards ensure efficiency safely under the 40°C limit. This secures structural longevity during intense tasks.
Features
- Manufactured utilizing high-grade 304 Stainless Steel and Noryl
- Built with Class 130 (B) motor insulation specifications
- Allows operational immersion depths reaching up to 5 meters
- Features an IPX8 waterproof protection rating
- Incorporates a pre-wired 10 meter cable with a standard plug
- Net Weight: 6 kg
SPECIFICATIONS
| Max Flow | 225 L/Min |
| Max Head | 10.8 m |
| Power | 0.55 kW / 240v |
| Rated Current | 3.47 A |
| Suitable For | Laundry Drainage |
| Body Material | Noryl and 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor power kilowatt rating and operating electrical voltage current apply to this submersible drainage sump pump?
Incorporating by commercial electrical feeds, the DOC7 relies on an electric motor rated at 0.55 kW (0.75 HP) energized via 220–240 V, 50 Hz, single-phase drawing 3.47 A.
Under submerged operating conditions, what immersion depth rating and liquid temperature range are certified for this submersible drainage sump pump?
Submerged under submerged drainage conditions, the DOC-7 maintains a maximum 5 m immersion depth with allowable liquid temperatures up to 40°C and supports 10 mm solids passage.
Regarding vertical fluid elevation, what dynamic head is achieved by this submersible drainage sump pump?
Providing across vertical pipe runs, the DOC 7 reaches a maximum dynamic elevation head of approximately 10.8 m across vertical runs.
For plant piping connections, what maximum flow volume and discharge port diameter are certified on this submersible drainage sump pump?
Dispatching across connected plumbing lines, the DOC_7 delivers a peak volumetric flow of approximately 225 L/Min via connected Rp 1-1/4" (32 mm) vertical discharge threaded port.
To defend against fluid corrosion, what alloy materials and mechanical face seal metallurgy are used in this submersible drainage sump pump?
Formed with alloy metallurgy components, the DOC7 employs alloy construction of corrosion-proof technopolymer casing and stainless steel motor body with mechanical face seals to guard against chemical attack and corrosion.
