SKU: DOC7VX

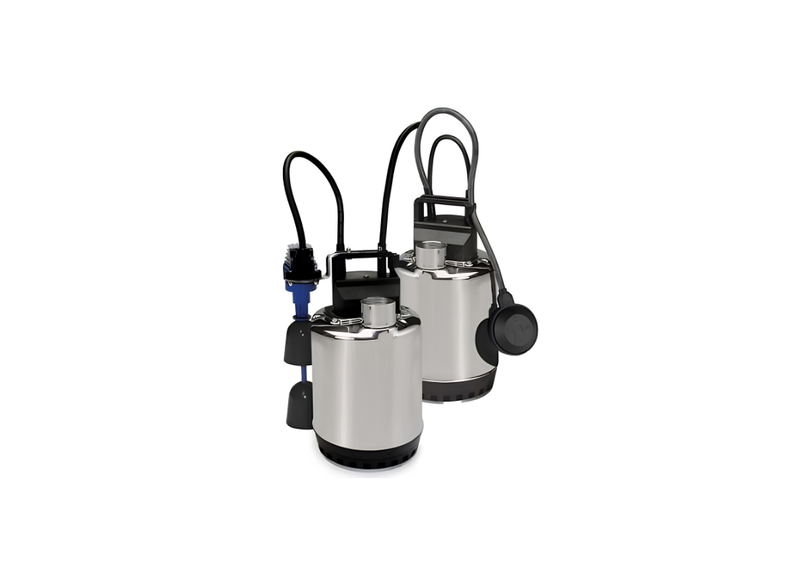

Lowara DOC7VX Stainless Steel 20mm Solids Submersible Drainage Pump for Rainwater Tanks with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Addressing the challenges of emergency water extraction, the DOC7 Vortex Sump Pump c/w Float Switch incorporates advanced protection. Engineered for emptying residential sumps, the single-phase 240v unit utilizes thermal overload containment to protect the motor from overheating. The active circuitry draws 2.96 Amps to ensure reliable performance.
The internal architecture leverages a specialized vortex impeller for heavier debris handling. This configuration allows the system to process suspended solid matter up to 20mm in diameter without risking internal blockages. Accommodating larger particles, fluid dynamics stabilize pressure while expediting wastewater outward through a 32 mm discharge port.
Facilitating drainage operations across submerged zones, the framework generates a maximum flow of 175 L/Min. Activating automatically via a pre-assembled float switch, the system manages continuous liquid displacement with a 6.8 meter max head. The 0.55 kW drive delivers torque to clear tanks smoothly.
Constructed to endure submerged environments, the primary housing acts as a resilient barrier against underground conditions. This layout minimizes degradation while maintaining a strict 6 kg net weight. The dry motor is actively cooled by the pumped liquid, dispersing heat below the 40 degrees threshold.
Features
- Engineered with a robust IPX8 waterproof protection standard
- Includes a 10 meter electrical power cable fitted with a plug
- Allows operational immersion depths down to a maximum of 5 meters
- Built with Class 130 (B) thermal motor insulation limits
- Structural assembly relies on 304 Stainless Steel and Noryl materials
- Net Weight: 6 kg
SPECIFICATIONS
| Max Flow | 175 L/Min |
| Max Head | 6.8 m |
| Power | 0.55 kW / 240v |
| Rated Current | 2.96 A |
| Suitable For | Rainwater Tanks |
| Body Material | Noryl and 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What permissible liquid operating temperature and maximum immersion depth protect this submersible drainage sump pump?
Submerged under wet well operations, the DOC7VX operates with a maximum 5 m immersion depth across operating liquid temperatures up to 40°C and manages 20 mm solids passage.
Through its heavy-duty impellers, what peak vertical lift head does this submersible drainage sump pump develop?
Providing across building service lines, the DOC-7-VX sustains a peak dynamic head of approximately 6.8 m to propel clean liquid upward.
What maximum volumetric flow capacity and outlet connection dimensions apply to this submersible drainage sump pump?
Dispatching across facility piping networks, the DOC 7 VX maintains a maximum discharge flow rate of approximately 175 L/Min utilizing Rp 1-1/4" (32 mm) vertical discharge threaded port.
Which corrosion-resistant alloy specifications and mechanical seals protect this submersible drainage sump pump during operation?
Formed with corrosion-resistant alloy materials, the DOC_7_VX ensures alloy metallurgy protection with corrosion-proof technopolymer casing and stainless steel motor body and precision mechanical face seals against corrosion.
Under standard plant power service, what electrical supply voltage and motor kilowatt power energize this submersible drainage sump pump?
Incorporating by facility power panels, the DOC7VX runs on an electric motor rated at 0.55 kW (0.75 HP) supplied by 220–240 V, 50 Hz, single-phase at a current of 2.96 A.
