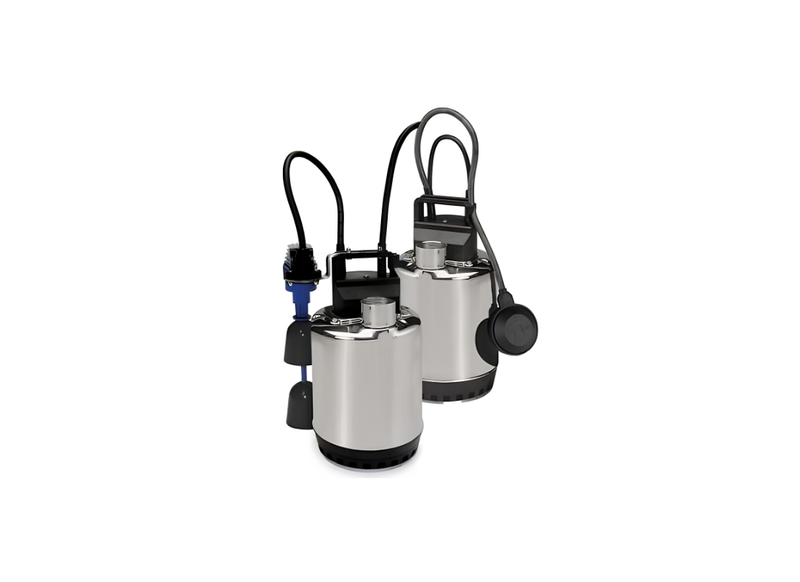

Lowara DOC7VXT Stainless Steel 20mm Handling Submersible Drainage Pump for Basements with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Serving specialized residential fluid extraction, the DOC7 Vortex Sump Pump (No Float) delivers a rugged framework. Designed for passive integration, the system omits a standard float switch for direct connection to external controllers. Powered by a three-phase 415v circuit, the motor draws 1.55 Amps to stabilize heavy wastewater velocity paths.
The internal architecture utilizes an advanced vortex impeller to expand its debris handling capabilities. This configuration allows the unit to process suspended solid matter up to 20mm in diameter without risking blockages. Accommodating these larger particles, the assembly expedites wastewater outward via a 32 mm threaded discharge port.
Facilitating reliable drainage operations, the mechanism generates a maximum flow of 175 L/Min. The three-phase 0.55 kW drive delivers sufficient continuous torque to manage a vertical delivery limit evaluated at a 6.8 meter max head. The 6 kg net weight profile ensures the pump remains securely grounded at the base of deep collection pits.
Constructed to endure harsh environments, the housing acts as a resilient barrier against abrasive conditions. The dry motor relies entirely on the pumped liquid medium to dissipate heat, safely maintaining temperatures below the 40°C maximum limit. Lacking a pre-fitted plug, the assembly allows technicians to execute hardwired setups.
Features
- Manufactured with an IPX8 waterproof environmental protection rating
- Evaluated to withstand operational submersion depths down to 5 meters
- Engineered strictly to Class 130 (B) motor thermal insulation tolerances
- Component architecture utilizes 304 Stainless Steel and Noryl materials
- Provided with a standard 10 meter power cable lacking a molded plug
- Net Weight: 6 kg
SPECIFICATIONS
| Max Flow | 175 L/Min |
| Max Head | 6.8 m |
| Power | 0.55 kW / 415v |
| Rated Current | 1.55 A |
| Suitable For | Flooded Garages |
| Body Material | Noryl and 304 Stainless Steel |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the alloy casing and mechanical face seal metallurgy resist chemical attack in this submersible drainage sump pump?
Formed for demanding fluid environments, the DOC7VXT relies on alloy construction of corrosion-proof technopolymer casing and stainless steel motor body paired with mechanical face seals to withstand liquid corrosion.
How is this submersible drainage sump pump energized regarding electrical motor kilowatt power and line voltage current draw?
Incorporating from dedicated power supplies, the DOC-7-VXT features an electric motor rated at 0.55 kW (0.75 HP) powered by 380–415 V, 50 Hz, three-phase with a rating of 1.55 A.
Across drainage and wastewater duties, what maximum immersion depth and operating temperature apply to this submersible drainage sump pump?
Operating in wet sump installations, the DOC 7 VXT sustains a maximum 5 m immersion depth with liquid operating temperatures up to 40°C and manages 20 mm solids passage.
When pumping through tall risers, what maximum dynamic head does this submersible drainage sump pump reach?
Providing through distribution piping lines, the DOC_7_VXT develops a maximum dynamic elevation head of approximately 6.8 m to elevate water.
When supplying fluid across pipework, what peak flow volume and discharge connection sizing apply to this submersible drainage sump pump?
Dispatching through designated connection lines, the DOC7VXT provides a peak fluid flow rate of approximately 175 L/Min connecting via Rp 1-1/4" (32 mm) vertical discharge threaded port.
