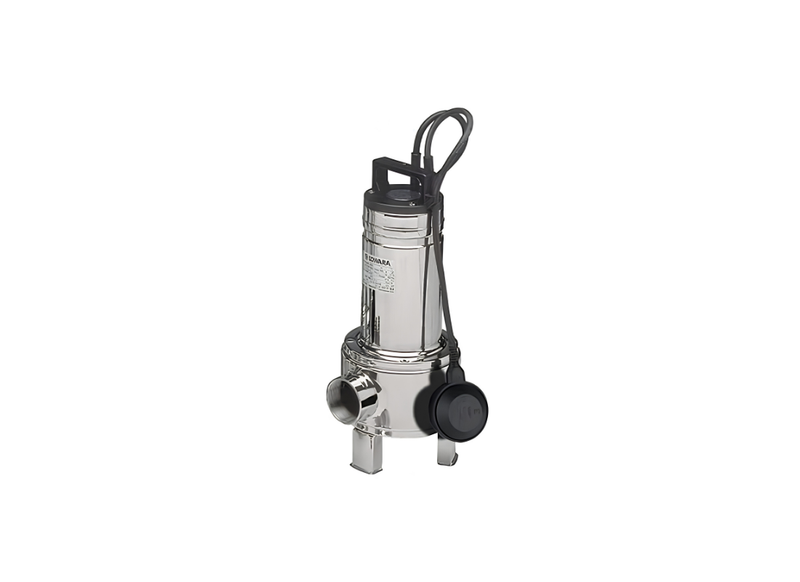

Lowara DOMO10 Stainless Steel 50mm Solids Submersible Drainage Pump for Septic Tanks with Channel Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Constructed to endure challenging fluid extraction tasks, the DOMO 10 Channel Impeller, Auto Float model features a highly durable 304 Stainless Steel casing. This Lowara DOMO 10 unit integrates an advanced hydraulic path to effectively process demanding wastewater operations. The external architecture is developed for the emptying of septic tanks, providing resilient protection against abrasive elements.
The internal motor system operates on a Single-phase 240v electrical supply, utilizing a 0.75 kW power configuration to drive the primary shaft. This precise electrical calibration draws 5.84 Amps, establishing a stable magnetic field for rotation. The watertight electric motor is safely enclosed and specifically engineered to support the draining of flooded basements.
Designed with a multi-layered barrier strategy, the pump incorporates the DRIVELUB multiple seal system to safeguard internal components from moisture infiltration. A V-ring and silicon carbide mechanical seal work in conjunction with an oil chamber to provide an extreme barrier. The lip seal remains continuously lubricated by the DRIVELUB system, ensuring long-term wear resistance.
Featuring a high-capacity channel impeller, this system achieves a maximum flow rate of approximately 500 L/Min. The optimized volute design supports a maximum head of 8.5 m, establishing consistent pressure maintenance. With 50 mm inlet and outlet port configurations, the assembly efficiently handles liquids with suspended solids up to 50 mm without internal blockages.
Features
- Engineered with a Channel Impeller to process fluid volumes.
- Utilizes a DRIVELUB multiple seal system to maintain watertightness.
- Constructed from 304 Stainless Steel for excellent structural resilience.
- Equipped with a silicon carbide mechanical seal providing abrasion resistance.
- Designed to efficiently transport liquids containing large suspended solids.
- Features an integrated auto float switch mechanism.
- Incorporates IPX8 protection and Class 155°C (F) thermal insulation.
SPECIFICATIONS
| Max Flow | 500 L/Min |
| Max Head | 8.5 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.84 Amps |
| Suitable For | Septic tanks, Basements |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
In water transfer operations, what maximum flow volume and discharge pipe diameter apply to this submersible sewage wastewater pump?
Issuing through system pipework runs, the DOMO10 maintains a maximum delivery flow volume of approximately 500 L/Min across Rp 2" (50 mm) discharge threaded port.
What corrosion-resistant alloy standards and mechanical face seal components are specified for this submersible sewage wastewater pump?
Created for harsh corrosive applications, the DOMO-10 incorporates alloy metallurgy of AISI 304 stainless steel motor casing and pump body with Drivelub mechanical seals and precision mechanical seals to guard against corrosion.
In building power panels, what electrical operating voltage and motor kilowatt rating run this submersible sewage wastewater pump?
Featuring from facility electrical circuits, the DOMO 10 utilizes an electric motor rated at 0.75 kW (1.0 HP) operating on 220–240 V, 50 Hz, single-phase drawing 5.84 A.
In sump and pit installations, what maximum immersion depth and fluid temperature boundaries apply to this submersible sewage wastewater pump?
Certified under wet well operations, the DOMO_10 sustains a maximum 5 m immersion depth across fluid operating temperatures up to 35°C and accommodates 50 mm solids passage.
How effectively does this submersible sewage wastewater pump propel liquid upward through vertical risers?
Achieving through plant water circuits, the DOMO10 achieves a peak dynamic head of approximately 8.5 m to propel liquid upward.
