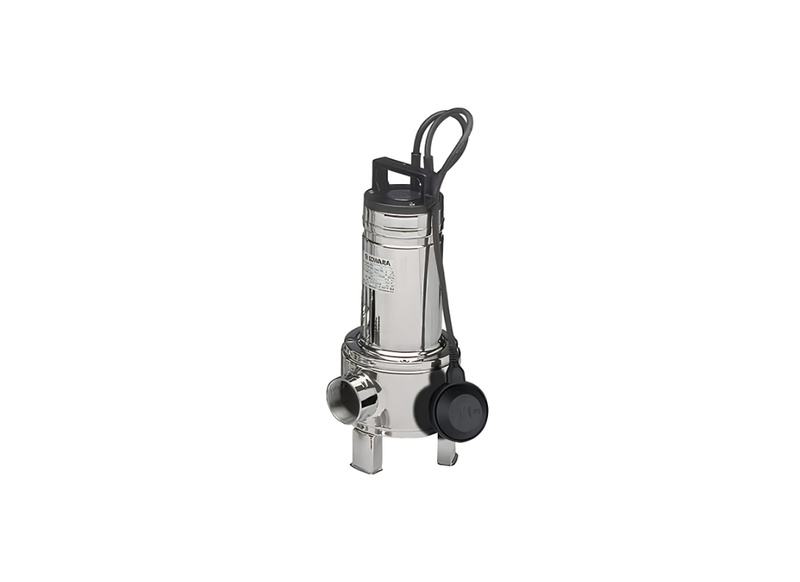

Lowara DOMO15 Stainless Steel 10m Cable Submersible Drainage Pump for Wet Basements with Channel Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Formulated to sustain substantial vertical lift parameters, this DOMO 15 Channel Impeller, Auto Float configuration effectively mitigates high-pressure wastewater accumulation. The Lowara DOMO 15 establishes optimal thermodynamic behavior across rigorous duty cycles, maintaining fluid velocity paths for the pumping of effluent. Its internal hydraulic stability is meticulously calibrated.
The outer housing is constructed utilizing 304 Stainless Steel, forming a rigid protective boundary against environmental degradation. This premium casting ensures that the pump remains structurally viable even when completely submerged in abrasive liquid mediums. The architecture is engineered to safely process liquids containing suspended solids, maintaining uncompromised fluid trajectories.
Driven by a 1.1 kW Single-phase 240v motor, this unit manages heavy-duty electrical loads by pulling a rated current of 7.02 Amps. The robust dry motor design is tightly sealed to prevent electrical faults during prolonged submersion. This system is intended to support the rapid emptying of residential sumps, processing water volumes without exceeding the 35°C liquid temperature limit.
The unit™s core performance parameters include achieving a maximum flow rate of approximately 600 L/Min and sustaining a maximum head of 11 m. By utilizing 50 mm inlet and outlet connections, the system reduces internal friction. The critical DRIVELUB multiple seal system integrates a highly resilient silicon carbide mechanical seal and an oil chamber, continuously lubricating the primary lip seal.
Features
- Features a resilient Channel Impeller designed for liquid transfer.
- Integrates a DRIVELUB multiple seal system against infiltration.
- Built with a robust 304 Stainless Steel casting.
- Includes a specialized silicon carbide mechanical seal for abrasion defense.
- Engineered to safely convey liquids with large suspended solids.
- Features IPX8 protection and Class 155°C (F) motor insulation.
- Pre-configured with an automatic float switch.
SPECIFICATIONS
| Max Flow | 600 L/Min |
| Max Head | 11 m |
| Power | 1.1 kW / 240v |
| Rated Current | 7.02 Amps |
| Suitable For | Effluent, Flooded basements |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
To prevent liquid corrosion, what alloy metallurgy and mechanical seal materials are built into this submersible sewage wastewater pump?
Created against fluid chemical attack, the DOMO15 relies on alloy construction of AISI 304 stainless steel motor casing and pump body with Drivelub mechanical seals paired with mechanical face seals to withstand liquid corrosion.
What motor power rating in kilowatts and operating line voltage current support this submersible sewage wastewater pump?
Featuring under nominal voltage supply, the DOMO-15 features an electric motor rated at 1.1 kW (1.5 HP) powered by 220–240 V, 50 Hz, single-phase with a rating of 7.02 A.
What maximum immersion depth limit in meters and permissible liquid temperature govern this submersible sewage wastewater pump?
Certified across submersible wastewater pits, the DOMO 15 maintains a maximum 5 m immersion depth with allowable liquid temperatures up to 35°C and supports 50 mm solids passage.
Across elevated building circuits, what maximum dynamic head does this submersible sewage wastewater pump supply?
Achieving in multi-story elevation loops, the DOMO_15 develops a maximum dynamic elevation head of approximately 11 m to elevate water.
When pumping into distribution lines, what peak delivery flow and connection dimensions does this submersible sewage wastewater pump maintain?
Issuing into building service circuits, the DOMO15 provides a peak fluid flow rate of approximately 600 L/Min connecting via Rp 2" (50 mm) discharge threaded port.
