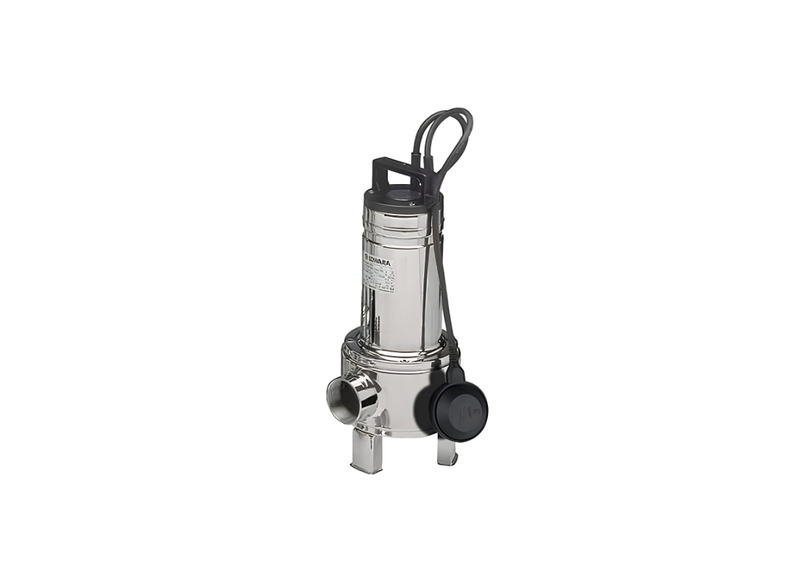

Lowara DOMO7 Stainless Steel Auto Float Submersible Drainage Pump for Dirty Water with Channel Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
The Lowara DOMO 7 is engineered for the Pumping of effluent. This DOMO 7 Channel Impeller, Auto Float unit utilizes advanced hydraulics for consistent fluid displacement. The system is intended to support the emptying of residential sumps with enhanced reliability, ensuring stable thermal operations within the maximum 35°C liquid temperature boundary.
Utilizing a 304 Stainless Steel casting, this pump safely resists abrasive particulate matter. The structure is configured for liquid exchange, mitigating wear associated with suspended solids up to 35 mm. The casing is explicitly designed to withstand continuous submersion while tightly protecting internal drive components from structural degradation.
Operating on a Single-phase 240v configuration, this pump draws 3.94 Amps to generate mechanical force. The thermodynamic design utilizes the surrounding fluid to dissipate heat, stabilizing the 0.55 kW motor during extraction. This energy setup supports a maximum flow capacity of approximately 320 L/Min, ensuring rapid dewatering.
The unit achieves a maximum head of 7.5 m, leveraging a precision channel impeller to maintain fluid momentum. The 40 mm inlet and outlet ports accommodate consistent flow stability. The DRIVELUB multiple seal system ensures the oil chamber continuously lubricates the lip seal, providing a barrier against infiltration and safeguarding the mechanical seal.
Features
- Features an efficient Channel Impeller for fluid passage.
- Engineered with a DRIVELUB multiple seal system.
- Constructed from durable 304 Stainless Steel.
- Equipped with a silicon carbide mechanical seal.
- Designed to safely accommodate suspended solids.
- Incorporates IPX8 protection and Class 155°C (F) insulation.
- Pre-assembled with an auto float switch.
SPECIFICATIONS
| Max Flow | 320 L/Min |
| Max Head | 7.5 m |
| Power | 0.55 kW / 240v |
| Rated Current | 3.94 Amps |
| Suitable For | Effluent, Septic tanks |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 40 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What dynamic vertical elevation head can this submersible sewage wastewater pump achieve across pipework?
Achieving through distribution piping lines, the DOMO7 produces a maximum dynamic head of approximately 7.5 m to lift fluid upward.
Across facility piping circuits, what peak flow volume and outlet connection sizing does this submersible sewage wastewater pump provide?
Issuing through designated connection lines, the DOMO-7 delivers a peak delivery flow rate of approximately 320 L/Min discharging through Rp 1-1/2" (40 mm) discharge threaded port.
Regarding chemical attack mitigation, what alloy metallurgy and mechanical seal faces protect this submersible sewage wastewater pump?
Created for demanding fluid environments, the DOMO 7 features alloy construction of AISI 304 stainless steel motor casing and pump body with Drivelub mechanical seals with mechanical face seals to resist corrosion and chemical attack.
How much electrical power in kilowatts and what supply voltage current draw are certified for this submersible sewage wastewater pump?
Featuring from dedicated power supplies, the DOMO_7 is powered by an electric motor rated at 0.55 kW (0.75 HP) running on 220–240 V, 50 Hz, single-phase with a current draw of 3.94 A.
How deep can this submersible sewage wastewater pump operate underwater and what liquid operating temperature limits are sustained?
Certified under submerged drainage conditions, the DOMO7 supports a maximum 5 m immersion depth with permissible liquid operating temperatures up to 35°C and manages 35 mm solids passage.
