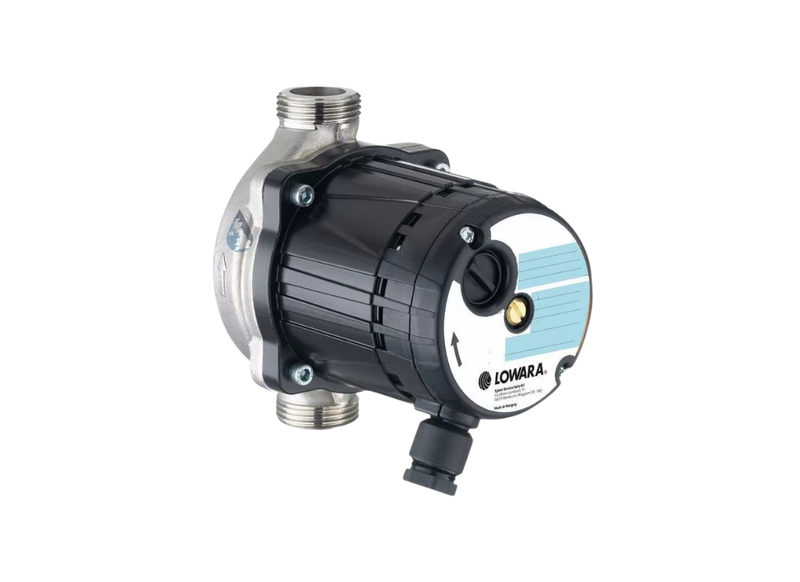

Lowara TLCHN-25-7L Stainless Steel High Flow Circulator Pump for Commercial Hot Water with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Sanitary light commercial high-flow and high-head installations including secondary hot water recirculation in multi-unit dwellings, motels, and schools are efficiently served by the Lowara TLCHN 25-7L. This wet rotor circulator pump delivers enhanced performance for commercial hot water distribution systems.
Three speed manual selection provides performance flexibility across varying system demands. Speed 1 at 220 W draws 1.03 A, Speed 2 at 228 W draws 1.04 A, and Speed 3 at 260 W draws 1.13 A on 240 V single-phase supply. Maximum head is approximately 7.1 m with flow reaching 140 L/Min.
Heavy-duty construction features a stainless steel pump body with composite material impeller. The ceramic wear ring and axial and radial bearings are lubricated by the pumped liquid. The design is specifically configured for higher flow and head requirements in light commercial sanitary water applications.
Threaded connections with 1"1/4 and 1"1/2 sizes support flexible installation. The pump is suitable for horizontal or vertical piping with motor axis horizontal. Liquid temperature capability ranges from +2°C to +110°C with recommended maximum of 65°C. Maximum operating pressure is 10 bar PN10 with IP44 protection.
FEATURES
- Stainless steel pump body for corrosion resistance in commercial applications
- Three speed manual selector for system matching
- Ceramic bearings lubricated by pumped liquid
- Composite impeller for high flow performance
- Ceramic wear ring providing extended durability
- Heavy-duty design for light commercial applications
- Single-phase 230 V 50 Hz power supply with integrated terminal box
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Is this circulator suitable for commercial facilities like motels and schools?
Engineered for multi-unit dwellings, motels, and schools, the TLCHN 25-7L handles demanding light commercial hot water loops.
What is the electrical draw across the three speed settings?
On a 240 V line, the TLCHN-25-7L draws 220 W (1.03 A) on Speed 1, 228 W (1.04 A) on Speed 2, and 260 W (1.13 A) on Speed 3.
What is the recommended maximum fluid temperature for sanitary water?
While capable of handling up to 110°C, the TLCHN 25 7L has a recommended operating limit of 65°C for domestic sanitary loops.
What pipe connection dimensions are compatible with this model?
Standard threaded connections in 1"1/4 and 1"1/2 sizes allow the TLCHN_25_7L to integrate smoothly into commercial pipework.
What peak head and flow volume does this light commercial pump achieve?
Delivering high-capacity recirculation, the TLCHN 25-7L achieves a maximum head of 7.1 m with flow reaching 140 L/Min.
