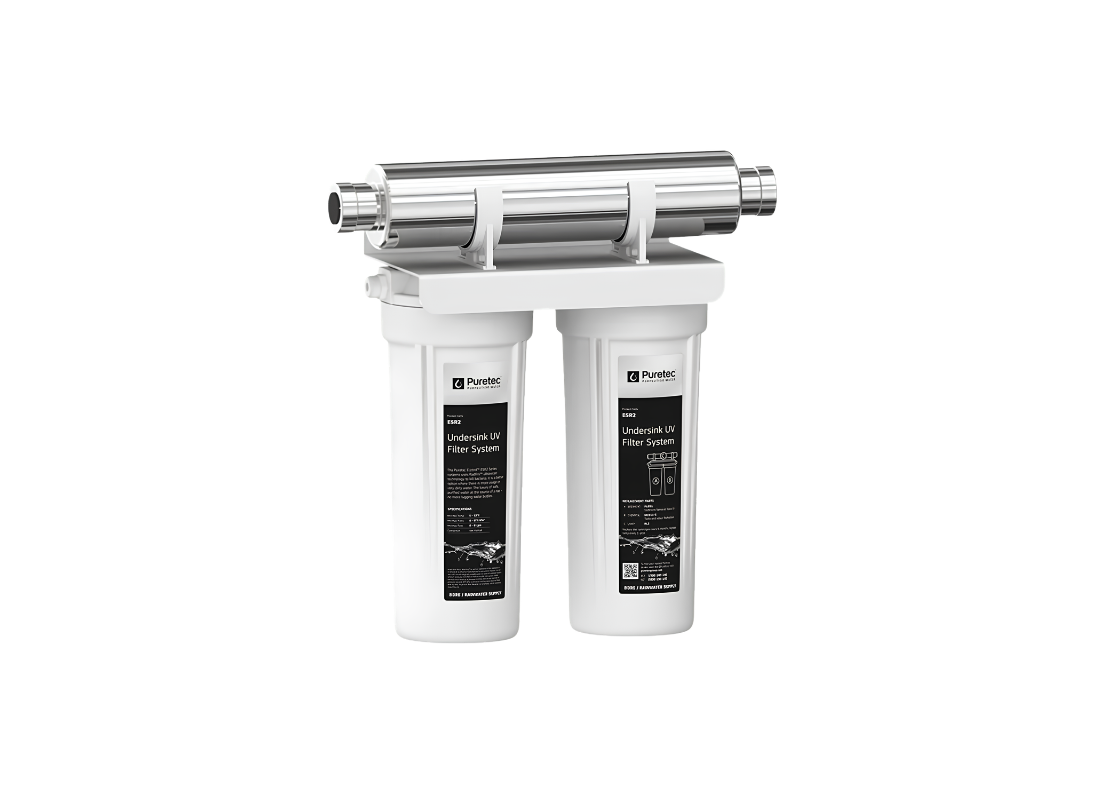

Puretec ESR2-T1-LF Undersink UV Rainwater Filter with Tripla T1 3 Way Mixer Tap Max 7.5LPM 500kPa

Internal fluid velocity paths are managed in the ESR2-T1-LF through a triple stage undersink assembly integrated with a Tripla T1 mixer tap. As a member of the Puretec Ecotrol ESR2 series it provides a consolidated path for sediment removal and ultraviolet disinfection at the kitchen bench. It is suitable for undersink installation where a 3-way mixer tap combines hot cold and filtered water in a single unit. This system provides a technical solution for safe drinking water for whole house applications.

Manufactured with a stainless steel bracket the housing assembly surrounds the Radfire UV chamber and internal filter cartridges. The unit uses 10 inch cartridges including the PL051 sediment filter and the MC011-S silver impregnated carbon block. It weighs 7 kg and operates in liquids from 0 to 52 degrees Celsius. The assembly features the Tripla T1 3-way mixer tap which requires a 33 mm hole for installation and provides a 4-star WELS rating for efficient fluid distribution in residential kitchens.

This unit is rated for a maximum flow of 7.5 L/Min and operates efficiently across a pressure range of 300 to 500 kPa. It connects to the fluid supply via 15 mm fittings and braided hoses for the mixer tap. Power is supplied at 240 V to the RL2 UV lamp which is regulated by an electronic ballast. The triple stage process achieves a clarifies rating that kills harmful microorganisms including E.coli Cryptosporidium and Giardia cysts while clarifies the water by removing sediment and silt from the supply.

Low carbon and energy efficiency is supported by the automatic operation of the UV stage which provides 12,000 hours of lamp life. The system meetings AS 3497 certifications for water treatment and features a silver impregnated stage 3 cartridge to prevent bacterial growth. Radfire technology provides natural chemical free purification for alternative water supplies. Maintenance is facilitated by the included smart tee and cartridges offering a path for clarifies and clarifies water through a stylish 3-in-1 tap.

• Radfire ultraviolet technology provides chemical free disinfection killing 99.9 percent of bacteria.
• Triple stage filtration includes a sediment cartridge for clarifying water and silt removal.
• Tripla T1 3-way mixer tap provides hot cold and filtered water from a single stylish faucet.
• Silver impregnated carbon cartridge specifically prevents bacterial growth and removes taste.
• System achieves flow rates up to 7.5 L/Min for safe drinking water at the kitchen bench.
• Electronic controller manages the RL2 ultraviolet lamp which offers a 12,000 hour life.
• Easy undersink installation with all necessary plumbing fittings smart tee and bracket.

Warranty: ESR2 Filter System warranty is 1 year parts and labour, plus 5 years parts only. Excludes cartridges.
