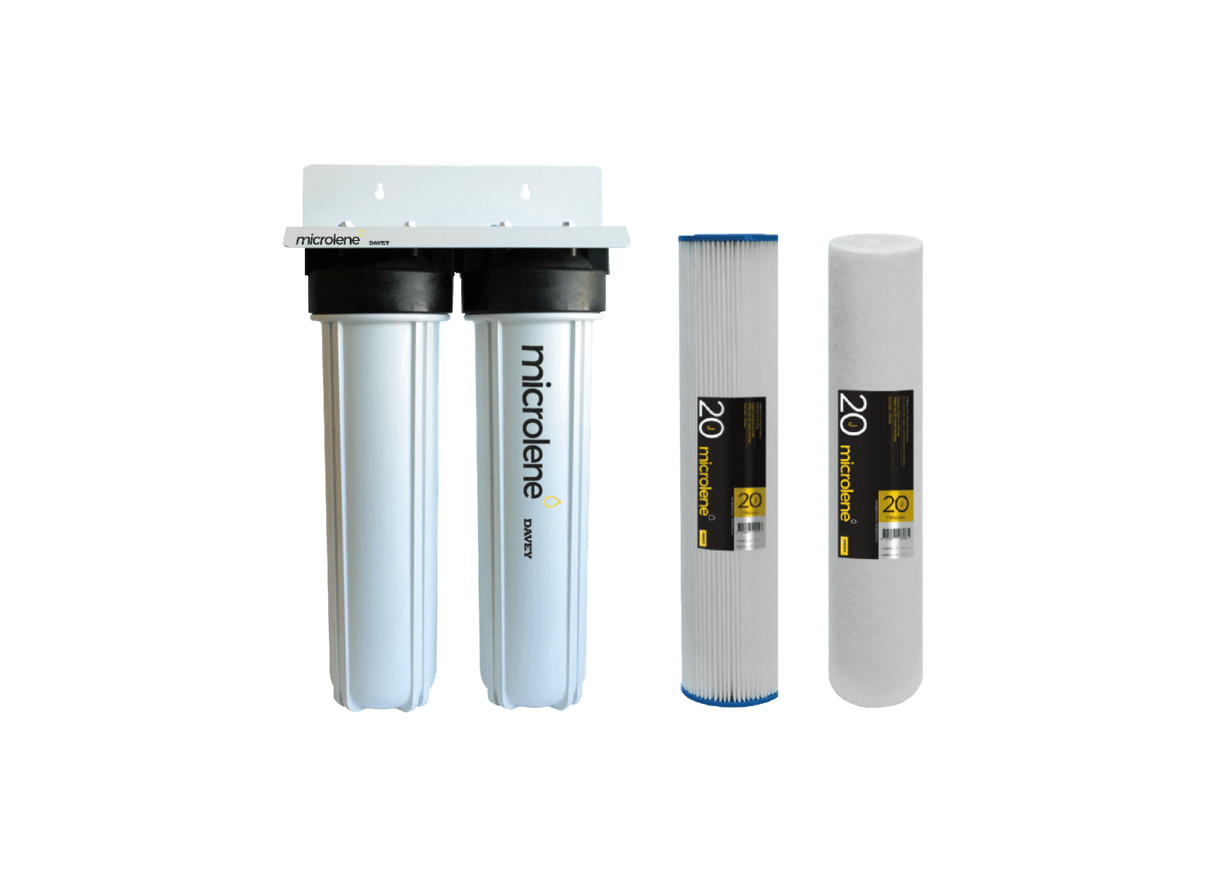

Davey Microlene KAS20J 20" Jumbo Twin Rainwater Filter Kit 20/1 Micron with Spanner

Large residential rainwater systems requiring high flow rates use the Davey Microlene KAS20J twin 20 inch jumbo filter pack. This kit is for families needing comprehensive sediment removal and reduction of parasitic cysts. It is for installation in whole-of-house utility loops where flow demands are high and water clarity is required. The assembly includes two stages of high capacity filtration within jumbo 20 inch housings.

Constructed from reinforced polypropylene, the housing assembly is durable and designed for a maximum system pressure of 880 kPa. The internal media includes a 20 micron poly pleated cartridge for the removal of coarse sediment and dirt. The secondary stage utilizes a 1 micron poly spun cartridge to capture fine particles. This jumbo configuration provides high media volume to ensure stability during pressurized service in larger sites.

The system operates using 25mm 1 inch BSP female connections and is specified for a recommended maximum flow rate of 155 L/min. As a passive filtration rack, it provides physical barriers for clear water. Its large internal volume accommodates high-capacity cartridges for whole-of-house filtration applications. It is rated for water temperatures up to 40 degrees Celsius and ambient temperatures reaching 50 degrees Celsius.

Operational safety is provided by built-in pressure relief valves and WaterMark certification. The kit is supplied with a housing spanner and all necessary fixings for the mounting bracket to facilitate installation. It is designed to be paired with UV systems for a complete water treatment solution on rainwater supplies. This high capacity twin jumbo pack offers a filtration foundation for large residential infrastructures.

• Manufactured with high durability reinforced polypropylene jumbo housings
• Features a 20 micron poly pleated cartridge for coarse sediment capture
• Features a 1 micron poly spun cartridge for fine particle reduction
• Specified for 25mm 1 inch BSP female inlet and outlet plumbing ports
• Provides jumbo 20 inch cartridges for maximum filtration surface area
• Supplied with a dedicated housing spanner and mounting bracket fixings
