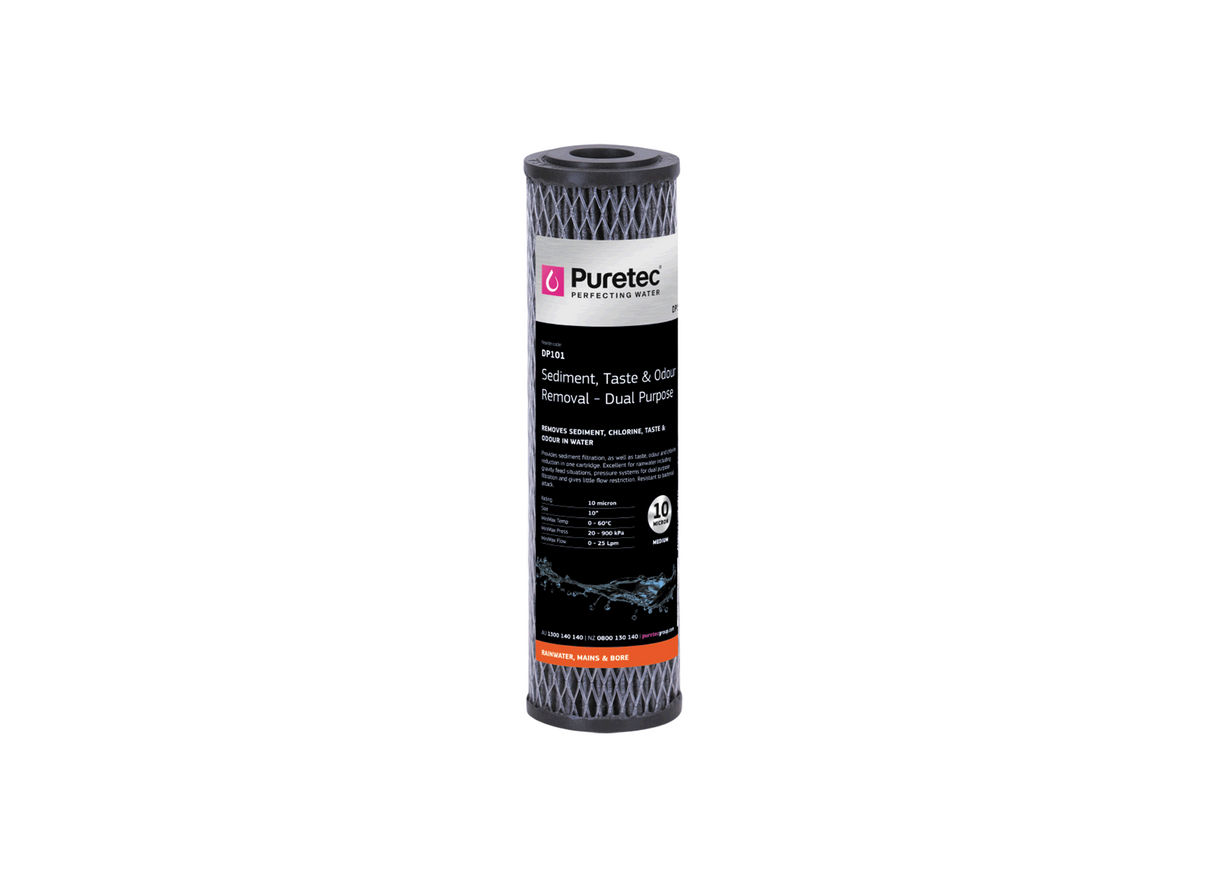

Puretec DP101 Dual Purpose Carbon 10 Micron 2.5" x 10" Replacement Cartridge

Point-of-use or pre-filtration stages in residential water systems require technical management of sediment and chemical taste in a single unit. This 10 inch cartridge is specified for the reduction of bad taste, odor, and chlorine while functioning as an effective barrier against suspended solids. It is suitable for rainwater tanks, bore water applications, or as a polishing stage for point-of-use distribution systems.

Hydraulic output is rated at a maximum flow of 25 L/Min, achieving a 10 micron nominal filtration level. The media consists of carbon-impregnated non-cellulose material, providing a balance between sediment trapping and chemical absorption. It maintains structural integrity under pressure conditions up to 900 kPa, ensuring a consistent fluid velocity path through the pleated matrix during peak usage.

Internal technology utilizes a pleated media architecture to provide additional surface area for high dirt-holding capacity with minimal pressure drop. Unlike standard cellulose alternatives, this model is resistant to bacterial attack, allowing it to be utilized for non-chlorinated water applications with resistance to bacterial attack. The combination of polyester and carbon filtration provides an extended service life in varying water conditions.

Construction features a 2.5" x 10" architectural footprint for universal compatibility with standard domestic filter housings. It operates in liquids ranging from 0 to 60°C and features a robust construction that prevents the release of particles. This unit provides a solution for clarified water, ensuring that silt and taste-altering chemicals are effectively managed before distribution to the outlet faucet.

Features

• Carbon-impregnated non-cellulose media manages sediment and taste in one pass.
• Pleated architecture provides increased surface area for high dirt-loading capacity.
• Resistant to bacterial attack, making it suitable for non-chlorinated water.
• Nominal 10 micron rating provides filtration with very low flow restriction.
• Universal 10 inch dimensions fit standard domestic and commercial housings.
• High flow rate of 25 L/Min supports point-of-use water distribution.
• Temperature tolerance up to 60°C supports diverse installation environments.
