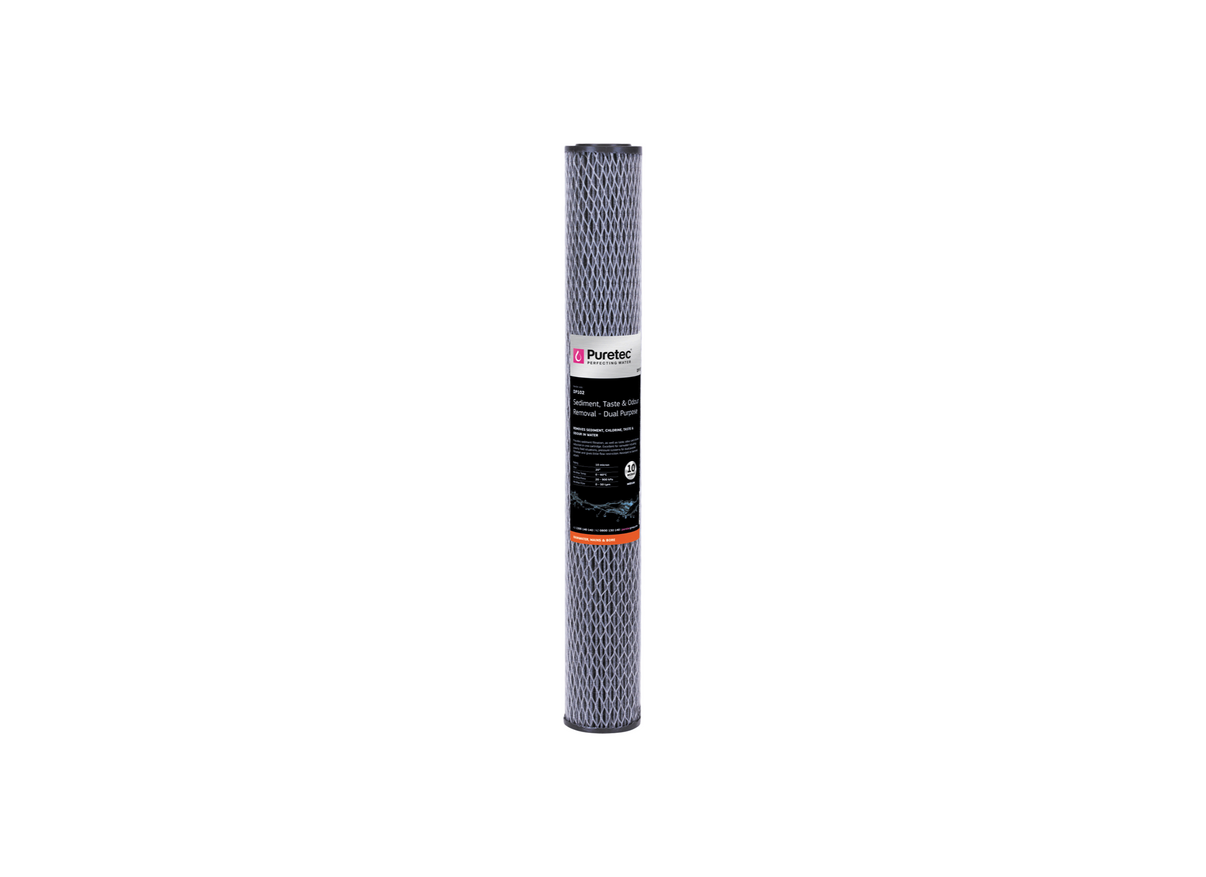

Puretec DP102 Dual Purpose Carbon 10 Micron 2.5" x 20" Replacement Cartridge

Whole-house filtration systems and high-flow domestic points require components that manage both sediment concentrations and chemical taste in a single housing. This 20 inch dual-purpose cartridge is utilized for the reduction of bad taste, odor, chlorine and sediment from mains or rainwater supplies. It is specified for vertical installation in standard 20 inch housings where clarified water is required for every tap in the property.

Operational performance is rated at a maximum flow of 50 L/Min, achieving effective clarification down to a 10 micron nominal rating. The unit features carbon-impregnated non-cellulose media, providing extended service intervals for residential or light commercial users. It maintains hydraulic stability under pressure conditions up to 900 kPa, ensuring consistent discharge pressure even during simultaneous outlet demand.

Internal design utilizes a pleated polyester structure to maximize the surface area for contaminant capture. The integration of carbon particles within the matrix allows for the absorption of taste-altering chemicals while silt and rust are mechanically trapped within the pleats. This construction ensures a high dirt-holding tolerance and provides high dirt-holding capacity in water supplies with moderate sediment loads.

Mechanical specifications feature a 20 inch height and a 2.5 inch diameter, manufactured for durability in pressurized systems. It operates within a liquid temperature range of 0 to 60°C and features a non-cellulose construction that resists microbial attack. This unit provides an efficient solution for large-volume water treatment, maintaining high clarity and taste standards across the entire residential supply line.

Features

• Extended 20 inch dual-purpose media for high-volume sediment and taste removal.
• Non-cellulose material construction is resistant to bacterial colonization.
• Pleated design provides superior dirt-holding capacity and low pressure drop.
• Nominal 10 micron rating supports high flow throughput for whole-house use.
• High flow output of 50 L/Min suitable for large residential distribution.
• Carbon impregnation provides effective absorption of chlorine and odors.
• Universal 20 inch sizing fits standard pressurized elongated filter housings.
