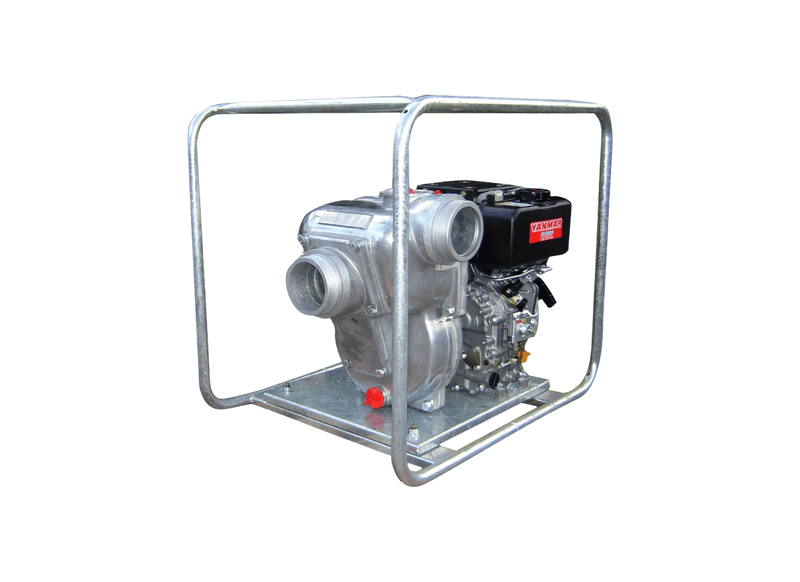

Aussie Pumps Brigade Boss QP310SL/L100ESOL Aluminium 10HP Water Transfer Pump with Yanmar L100ESOL Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Remote pastoral stations and highway maintenance depots station the Aussie Brigade Boss (QP310SL/L100ESOL) solenoid diesel high head pump beside unattended bore tanks for automated tanker refilling and seasonal water transfer. A fitted fuel solenoid supports automatic start-stop control without requiring manual operation. High head hydraulics lift water from low storage dams into elevated road tankers quickly.
High head water delivery achieves a maximum delivery rate of 1150 L/min and develops a maximum elevation head of 50 m. Total equipment mass is 105 kg in standard operating trim. Internal hydraulic architecture features a marine grade aluminium casing, a closed aluminium high head impeller, and a carbon ceramic mechanical seal with nitrile elastomers.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine with stop/start fuel solenoid (battery supplied separately) producing 10 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet, and the self-priming wet end achieves 8 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 8 m.
- Big closed single impeller moves high volumes at 50 m head.
- Large diameter suction and discharge ports maximize bulk transfer rates through 3-inch porting.
- The serviceable suction valve holds prime in the casing between jobs.
- Integrated fuel-solenoid auto control keeps this ready for push-button key starting without manual intervention.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 1150 L/Min |
| Max Head | 50 m |
| Power | Yanmar L100 Diesel Solenoid Engine |
| Suitable For | Spraying |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What volumetric flow capacity and vertical elevation apply to this unit?
The Aussie Pumps Brigade Boss High Head QP310SL L100ESOL (QP310SL/L100ESOL) delivers a maximum flow rate of 1150 L/min and develops a maximum head of 50 m, depending on site operating conditions.
What engine drive and starting mechanism power this assembly?
Mechanical power for the QP310SL/L100ESOL is supplied by a Yanmar L100 10HP electric start diesel engine with stop/start fuel solenoid, started via an electric key start ignition with fuel-solenoid automatic start-stop control.
What plumbing connections and discharge port arrangements are fitted?
Plumbing connections for the QP310SL-L100ESOL incorporate 80 mm BSP male intake and 80 mm BSP fittings, matching standard suction and delivery lines.
How deep can this self priming pump draw water vertically?
The QP310SL L100ESOL achieves rapid self-priming from up to 7.6 m vertical suction lift, drafting water from open sources without manual line filling once charged.
What factory warranty protection and service support are provided?
Backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, the Aussie QP310SL/L100ESOL is supported by authorized service agents and genuine spare parts across Australia.
