SKU: QP310SX/GX390E

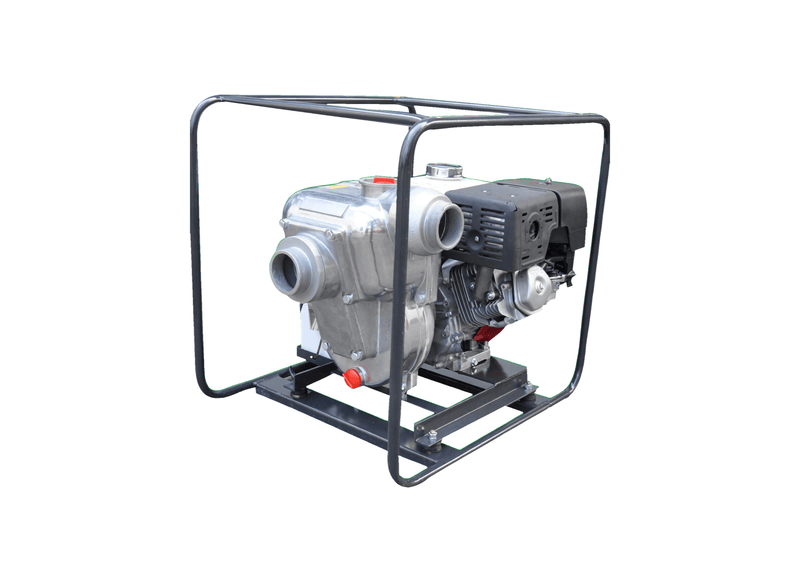

Aussie Pumps Brigade Boss QP310SX/GX390E Aluminium Transfer Pump with Honda GX390E Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Mountain irrigation farmers and steep terrain landholders run the Aussie Brigade Boss (QP310SX/GX390E) electric start extra high head pump to move water through long uphill pipelines to distant holding tanks. An extra high head impeller geometry produces strong discharge pressure to overcome pipeline friction losses. Key-start electric ignition delivers effortless activation for scheduled daily water transfers.
High head water delivery achieves a maximum delivery rate of 1,050 L/min and develops a maximum pressure of 100 psi. Internal hydraulic architecture features a marine grade aluminium casing, a closed aluminium high head impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 100 kg in standard operating trim.
Mechanical drive is provided by a Honda GX390 13HP electric start petrol engine (battery supplied separately) producing 13HP (9.7kW) Petrol. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet, and the self-priming wet end achieves 7.8 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Fully welded roll frame with anti-vibration mounts & battery tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 3-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.8 m depth.
- Closed impeller hydraulics build 70 m of head while sipping petrol.
- Large diameter suction and discharge ports maximize bulk transfer rates through 3-inch porting.
- A replaceable suction check valve retains liquid in the pump casing to avoid re-priming.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Backed by a 5-year pump end warranty from Aussie Pumps with 3-year Honda GX engine cover.
SPECIFICATIONS
| Max Flow | 1050 L/Min |
| Max Head | 70 m |
| Power | Honda GX390 Petrol Electric Start Engine |
| Suitable For | Fire Fighting Mop Up |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are the intake and discharge pipe connections laid out?
The Aussie Pumps Brigade Boss QP310SX Extra High Head (QP310SX/GX390E) features 80 mm BSP intake threading and 80 mm BSP delivery ports for flexible pipe and hose connections.
What volumetric fluid output and vertical dynamic head apply?
The QP310SX/GX390E provides up to 1,050 L/min in water flow and up to 70 m in elevation head, with actual delivery determined by the operating point.
Which warranty terms and service agent networks support this unit?
The QP310SX-GX390E is covered by a 5-year pump end warranty, 3-year Honda GX engine warranty, with complete spare parts access and factory documentation available Australia-wide.
How is this unit driven and what starting mechanics are provided?
The QP310SX GX390E features a Honda GX390 13HP electric start petrol engine, incorporating an electric key start ignition to get pumping quickly.
What vertical suction capability applies for open water drafting?
Drawing water vertically from up to 7.8 m suction depth, the Aussie QP310SX/GX390E primes quickly from dams, swimming pools, creeks, and storage tanks.
