SKU: QP402SL/L100AE

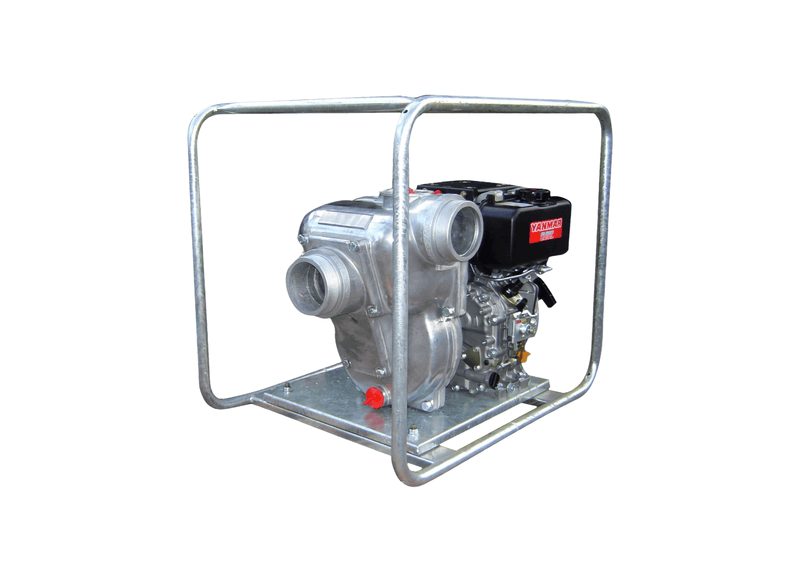

Aussie Pumps Brigade Boss QP402SL/L100AE Aluminium 10HP Water Transfer Pump with Yanmar L100AE Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Civil engineering contractors and bulk water suppliers run the Aussie Brigade Boss (QP402SL/L100AE) electric start diesel high head pump with wide ports for rapid loading of large capacity highway water tankers from natural waterways. Large suction and discharge openings accommodate high fluid volume while the high head impeller holds brisk flow velocity. Electric key starting provides smooth, steadfast operation on busy civil development sites.
High head water delivery achieves a maximum delivery rate of 1250 L/min and develops a maximum elevation head of 50 m. Internal hydraulic architecture features a marine grade aluminium casing, a closed aluminium high head impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 105 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine (battery supplied separately) producing 10 HP. Plumbing connections incorporate 4" BSP male inlet & 4" BSP male outlet, and the self-priming wet end achieves 8 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 8 m.
- Big closed single impeller moves high volumes at 50 m head.
- Big ports keep 1250 L/min transfer rates flowing through 4-inch porting.
- The serviceable suction valve holds prime in the casing between jobs.
- A tubular steel roll frame encloses the L100AE engine and pump against site impacts.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 1250 L/Min |
| Max Head | 50 m |
| Power | Yanmar L100AE Diesel Electric Start Engine |
| Suitable For | Fire Fighting Mop Up |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What pipe connection sizes and manifold types come standard?
The Aussie Pumps Brigade Boss High Head QP402SL L100AE (QP402SL/L100AE) features 100 mm BSP intake threading and 100 mm BSP delivery ports for flexible pipe and hose connections.
How much liquid volume and elevation pressure can this pump provide?
The QP402SL/L100AE provides up to 1250 L/min in water flow and up to 50 m in elevation head, with actual delivery determined by the operating point.
What warranty terms and spare parts backing apply in Australia?
The QP402SL-L100AE is covered by a 5-year pump end warranty, 2-year Yanmar engine warranty, with complete spare parts access and factory documentation available Australia-wide.
What type of power unit and starting method are fitted?
The QP402SL L100AE features a Yanmar L100 10HP electric start diesel engine, incorporating an electric key start ignition to get pumping quickly.
How quickly does the pump establish prime from low water sources?
The Aussie QP402SL/L100AE provides self-priming capability from up to 7.6 m vertical suction lift, picking up prime swiftly without requiring external line priming.
