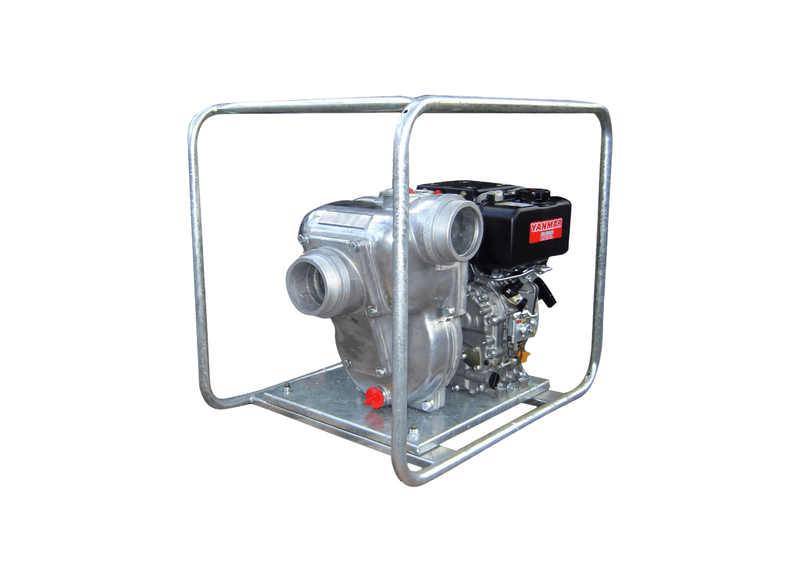

Aussie Pumps Brigade Boss QP402SL/L100ESO Aluminium 10HP Water Transfer Pump with Yanmar L100ESO Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Remote cattle station outstations and irrigation trusts position the Aussie Brigade Boss (QP402SL/L100ESO) solenoid diesel high head pump with wide ports at distant river intake points for filling bulk water trailers and feeding stock distribution lines. A fitted fuel solenoid keeps the pump ready for automatic start-stop push-button starting. The marine grade aluminium body resists internal corrosion from river sediment and brackish water.
High head water delivery achieves a maximum delivery rate of 1250 L/min and develops a maximum elevation head of 50 m. Internal hydraulic architecture features a marine grade aluminium casing, a closed aluminium high head impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 105 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine with stop/start fuel solenoid (battery supplied separately) producing 10 HP. Plumbing connections incorporate 4" BSP male inlet & 4" BSP male outlet, and the self-priming wet end achieves 8 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 4-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 8 m depth.
- High head performance comes from a big closed single impeller.
- Large diameter suction and discharge ports maximize bulk transfer rates through 4-inch porting.
- The serviceable suction valve holds prime in the casing between jobs.
- A tubular steel roll frame encloses the L100ESO engine and pump against site impacts.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 1250 L/Min |
| Max Head | 50 m |
| Power | Yanmar L100ESO Diesel Solenoid Engine |
| Suitable For | Tanker Fill |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What suction lift performance and priming depth are achievable?
With vertical suction lift reaching up to 7.6 m, the Aussie Pumps Brigade Boss High Head QP402SL L100ESO (QP402SL/L100ESO) draws water directly from dams and pits once the pump casing is charged.
Which warranty terms cover the pump casing and drive engine?
Protection for the QP402SL/L100ESO includes a 5-year pump end warranty, 2-year Yanmar engine warranty, providing verified Australian warranty backing and technical support.
How is the drive engine configured and started on this unit?
Power for the QP402SL-L100ESO comes from a Yanmar L100 10HP electric start diesel engine with stop/start fuel solenoid, equipped with an electric key start ignition with fuel-solenoid automatic start-stop control for straightforward field deployment.
Which suction and delivery port fittings are included?
Suction intake on the QP402SL L100ESO is provided via 100 mm BSP threading, with delivery directed through 100 mm BSP fittings.
What peak flow rate and pumping head are achievable?
Hydraulic output for the Aussie QP402SL/L100ESO reaches up to 1250 L/min in volumetric flow and up to 50 m in total head, depending on system duty.
