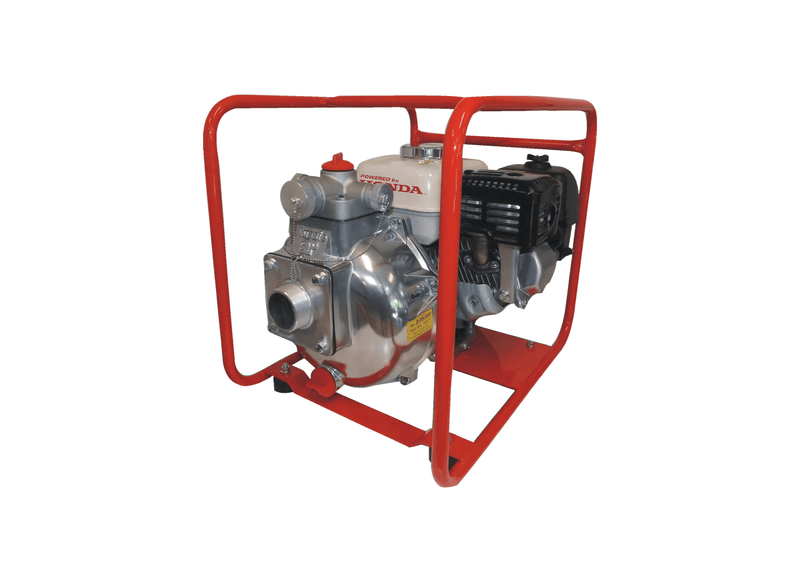

Aussie Pumps Fire Captain Plus QP205SL/GX200FF Aluminium 6.5HP Firefighting Pump with Honda GX200FF Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Pastoral station managers and contract harvesters run the Aussie Fire Captain Plus (QP205SL/GX200FF) full frame pump for escorting grain headers during harvest and protecting farm outbuildings against fast-moving grass fires. The deep priming chamber creates strong suction lift to draw water from low creek beds and farm lagoons. A sturdy wrap-around tubular cage enables secure tie-down on field service trailers.
Emergency water delivery achieves a maximum delivery rate of 450 L/min and develops a maximum pressure of 107 psi. Internal hydraulic architecture features a marine grade aluminium casing with big belly priming geometry, a single piece closed aluminium impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 30 kg in standard operating trim.
Mechanical drive is provided by a Honda GX200 6.5HP recoil start petrol engine producing 6.5HP (4.8kW) Petrol. Plumbing connections incorporate 2" BSP male inlet, 3-way outlet (2 x 1", 1 x 1.5") with metal caps & chains, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Full roll frame with anti-vibration rubber mounts encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 2-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Closed impeller hydraulics build 75 m of head while sipping petrol.
- A 3-way fire manifold with 2 x 1-inch and 1 x 1.5-inch ports, caps and chains feeds multiple hose lines.
- The serviceable suction valve holds prime in the casing between jobs.
- A tubular steel roll frame encloses the engine and pump against site impacts.
- Aussie Pumps covers the pump end for 5 years with 3-year Honda GX engine warranty support.
SPECIFICATIONS
| Max Flow | 450 L/Min |
| Max Head | 75 m |
| Power | Honda GX200FF Petrol Engine |
| Suitable For | Spray Irrigation |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are the intake and discharge pipe connections laid out?
The Aussie Pumps Fire Captain Plus Recoil (QP205SL/GX200FF) features 50 mm BSP intake threading and 3-way (2 x 25 mm, 1 x 40 mm) BSP delivery ports for flexible pipe and hose connections.
What volumetric fluid output and vertical dynamic head apply?
The QP205SL/GX200FF provides up to 450 L/min in water flow and up to 75 m in elevation head, with actual delivery determined by the operating point.
Which warranty terms and service agent networks support this unit?
The QP205SL-GX200FF is covered by a 5-year pump end warranty, 3-year Honda GX engine warranty, with complete spare parts access and factory documentation available Australia-wide.
How is this unit driven and what starting mechanics are provided?
The QP205SL GX200FF features a Honda GX200 6.5HP recoil start petrol engine, incorporating a manual recoil pull starter to get pumping quickly.
What vertical intake lift depth is supported during self priming?
With vertical suction lift reaching up to 7.6 m, the Aussie QP205SL/GX200FF draws water directly from dams and pits once the pump casing is charged.
