SKU: QP205SL/L70E

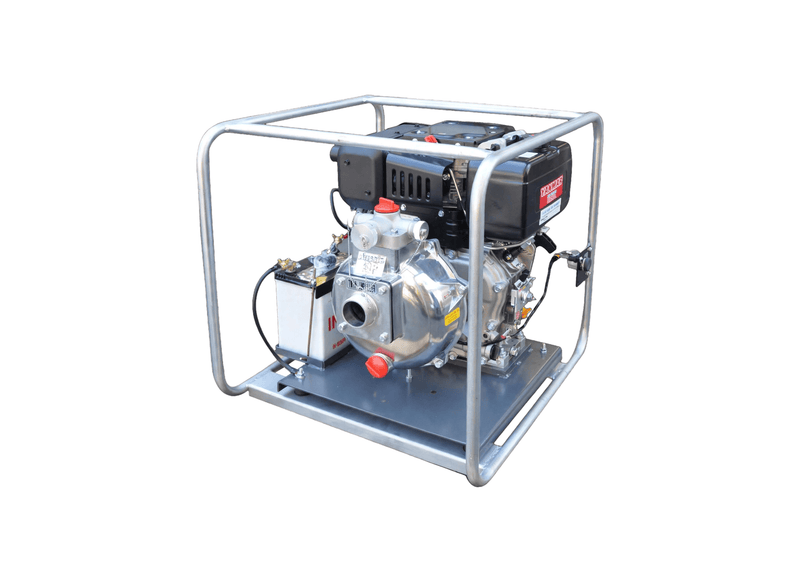

Aussie Pumps Fire Captain Plus QP205SL/L70E Aluminium 7HP Firefighting Pump with Yanmar L70E Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Cattle station managers and rural contractors run the Aussie Fire Captain Plus (QP205SL/L70E) electric start diesel pump for high-pressure pasture irrigation, header fire escorting, and long-range livestock watering lines. The diesel power unit delivers steady torque to hold high discharge pressure across continuous daily pumping cycles. A heavy wrap-around frame guards the pump during transit over rough outback cattle tracks.
Emergency water delivery achieves a maximum delivery rate of 500 L/min and develops a maximum elevation head of 60 m. Internal hydraulic architecture features a marine grade aluminium casing with big belly priming geometry, a single piece closed aluminium impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 70 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L70 7HP electric start diesel engine (battery supplied separately) producing 7 HP. Plumbing connections incorporate 2" BSP male inlet & 3-way outlet (2 x 1", 1 x 1.5") with metal caps & chains, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.6 m.
- Closed impeller hydraulics build 60 m of head while sipping diesel.
- A 3-way fire manifold with 2 x 1-inch and 1 x 1.5-inch ports, caps and chains feeds multiple hose lines.
- The serviceable suction valve holds prime in the casing between jobs.
- A fully welded steel roll frame with battery mounting tray keeps the pump stable and easy to move between jobs.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 500 L/Min |
| Max Head | 60 m |
| Power | Yanmar L70 Diesel Electric Start Engine |
| Suitable For | Bushfire Protection |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What length of manufacturer warranty coverage protects this equipment?
Coverage for the Aussie Pumps Fire Captain Plus Diesel QP205SL L70E (QP205SL/L70E) includes a 5-year pump end warranty, 2-year Yanmar engine warranty, supported by certified service facilities and parts availability throughout Australia.
How is the plumbing connection arranged for intake and discharge lines?
The QP205SL/L70E is plumbed with 50 mm BSP male suction threading and 3-way (2 x 25 mm, 1 x 40 mm) BSP discharge ports, allowing fast hookup on site.
How deep can this self priming pump draw water vertically?
The QP205SL-L70E achieves rapid self-priming from up to 7.6 m vertical suction lift, drafting water from open sources without manual line filling once charged.
What are the discharge limits for volumetric flow and total head?
The QP205SL L70E achieves a maximum flow capacity of 500 L/min and a maximum head limit of 60 m, varying across operating requirements.
Which engine package and start type are installed?
The Aussie QP205SL/L70E operates on a Yanmar L70 7HP electric start diesel engine, utilizing an electric key start ignition to drive the hydraulic pump assembly.
