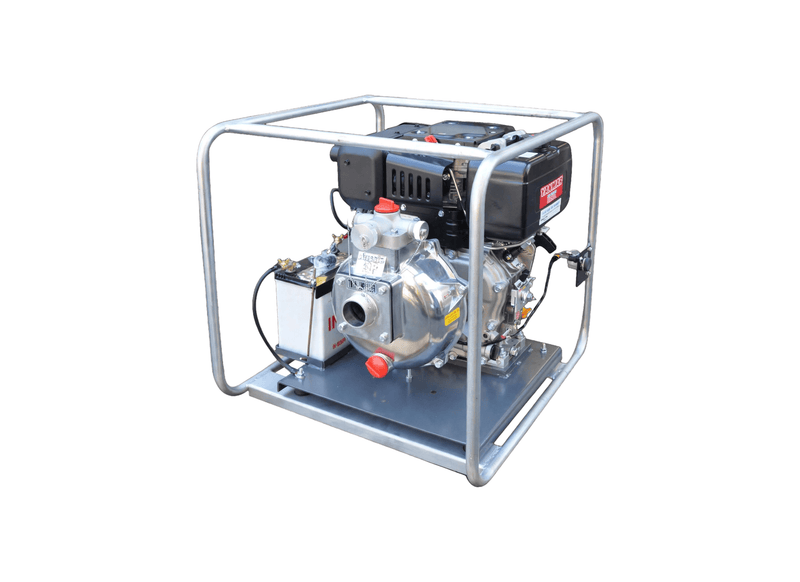

Aussie Pumps Fire Captain Plus QP205SL/L70ESOL Aluminium 7HP Firefighting Pump with Yanmar L70ESOL Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Isolated sheep stations and national park ranger stations position the Aussie Fire Captain Plus (QP205SL/L70ESOL) solenoid diesel pump for round-the-clock standby bushfire protection at remote mountain outposts. An integrated fuel solenoid supports automatic start-stop control without needing manual operation. High pressure single stage hydraulics propel water through long fire hoses and hillside sprinkler arrays.
Emergency water delivery achieves a maximum delivery rate of 500 L/min and develops a maximum elevation head of 60 m. Internal hydraulic architecture features a marine grade aluminium casing with big belly priming geometry, a single piece closed aluminium impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 70 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L70 7HP electric start diesel engine with stop/start fuel solenoid (battery supplied separately) producing 7 HP. Plumbing connections incorporate 2" BSP male inlet & 3-way outlet (2 x 1", 1 x 1.5") with metal caps & chains, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 2-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Closed impeller hydraulics build 60 m of head while sipping diesel.
- A 3-way fire manifold with 2 x 1-inch and 1 x 1.5-inch ports, caps and chains feeds multiple hose lines.
- The serviceable suction valve holds prime in the casing between jobs.
- Integrated fuel-solenoid auto control keeps this ready for push-button key starting without manual intervention.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 500 L/Min |
| Max Head | 60 m |
| Power | Yanmar L70 Diesel Solenoid Engine |
| Suitable For | High Pressure Water Transfer |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What flow throughput and total head elevation does this unit produce?
The Aussie Pumps Fire Captain Plus Diesel QP205SL L70ESOL (QP205SL/L70ESOL) delivers a maximum flow rate of 500 L/min and develops a maximum head of 60 m, depending on site operating conditions.
What drive engine and starter mechanism provide mechanical power?
Mechanical power for the QP205SL/L70ESOL is supplied by a Yanmar L70 7HP electric start diesel engine with stop/start fuel solenoid, started via an electric key start ignition with fuel-solenoid automatic start-stop control.
What port threading and discharge manifold fittings are supplied?
Plumbing connections for the QP205SL-L70ESOL incorporate 50 mm BSP male intake and 3-way (2 x 25 mm, 1 x 40 mm) BSP fittings, matching standard suction and delivery lines.
What vertical suction lift capability is available without line flooding?
Drawing water vertically from up to 7.6 m suction depth, the QP205SL L70ESOL primes quickly from dams, swimming pools, creeks, and storage tanks.
How is warranty coverage structured for the pump end and engine?
Backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, the Aussie QP205SL/L70ESOL is supported by authorized service agents and genuine spare parts across Australia.
