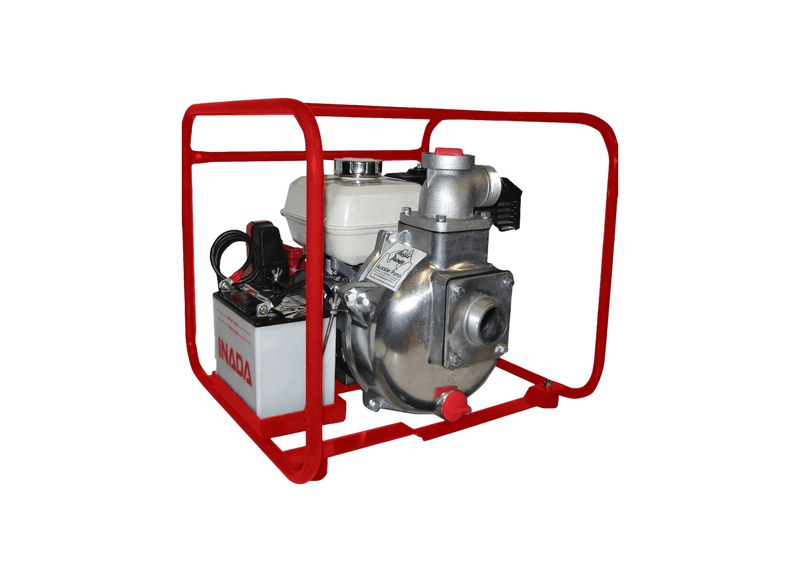

Aussie Pumps Fire Captain Plus QP205SLGX200ENF Aluminium 6.5HP Base Mount Fire Pump with Honda Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
High-pressure delivery and a frame-free base layout define this configuration for compact equipment skids and mobile service trailers. Its bare-frame layout allows direct bolting onto flat bases without outer frame bulk.
Hydraulic performance encompasses a maximum shut-off head of 75 m (107 PSI) at zero flow and an open-discharge flow capacity of up to 450 L/min at zero static head. The marine-grade aluminium wet end incorporates a cast front casing, backplate, volute, and single-piece closed impeller with carbon ceramic mechanical seals. Boxed mass: 30 kg.
Drive power is provided by an electric-start Honda GX200 (6.5 HP) commercial petrol engine (battery kit not included). Plumbing connections feature a 2" BSP male inlet and a multi-port 3-way discharge outlet (2 x 1" & 1 x 1.5"), while internal wet end passages draw fluid from self-priming depths up to 7.6 m.
Engineered with replaceable flanged suction and discharge porting, zinc-plated casing bolts, and polycarbonate priming/drain plugs for straightforward field servicing. Supported by factory technical assembly schematics, component stockists, and user documentation across distribution networks.
Features- Frame-free base-mounted layout (NF) designed for compact skid and vehicle installation.
- Electric-start Honda GX200 (6.5 HP) commercial petrol engine for proven operation (battery kit not included).
- Hydraulic limits: maximum shut-off head of 75 m (107 PSI) at zero flow, with open-discharge flow capacity up to 450 L/min at zero head.
- Multi-port 3-way discharge manifold (2 x 1-inch and 1 x 1.5-inch) feeds multiple discharge lines.
- Marine-grade aluminium pump body with replaceable flanged ports for simplified maintenance.
- Self-primes rapidly from 7.6 m vertical suction lift through big-belly casing geometry.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 3-year Honda GX engine warranty.
SPECIFICATIONS
| Max Flow | 450 L/Min |
| Max Head | 75 m |
| Power | Honda GX200 Electric Start Petrol Engine |
| Suitable For | Bushfire Protection |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the bare base layout benefit installation on vehicles and utility trays?
Supplied without an outer protective cage, the Aussie Pumps Fire Captain Plus QP205SL (QP205SLGX200ENF) mounts flush onto utility vehicle beds and equipment trailers, saving valuable space for onboard gear.
What plumbing connections and discharge port arrangements are fitted?
Plumbing connections for the QP205SLGX200ENF incorporate 2" BSP suction intake with a 3-way discharge manifold (two 1" and one 1.5" ports), matching standard site fittings.
What engine drive and starting mechanism power this assembly?
Mechanical power for the QP205SLGX200ENF is supplied by a Honda GX200 6.5HP electric-start petrol engine, started via key-switch electric start.
How deep can this self priming pump draw water vertically?
The QP205SLGX200ENF draws water from vertical suction depths reaching up to approximately 7.6 m, enabling convenient drafting from open dams and creeks.
What volumetric flow capacity and vertical elevation apply to this unit?
The QP205SLGX200ENF delivers a maximum flow rate of approximately 450 L/min and develops a maximum head of approximately 75 m, depending on site operating conditions.
