SKU: QP305SL/GX200E

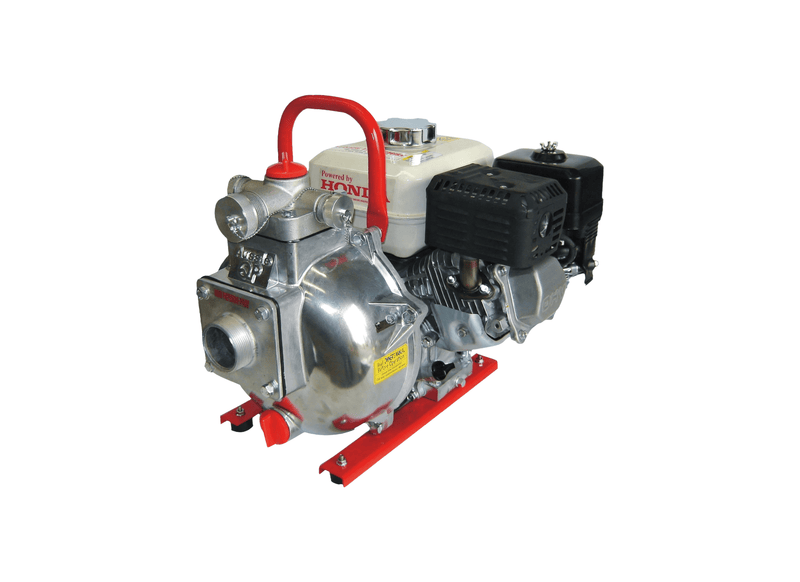

Aussie Pumps Fire Captain Plus QP305SL/GX200E Aluminium 6.5HP Firefighting Pump with Honda GX200E Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Contract harvesters and livestock station managers position the Aussie Fire Chief (QP305SL/GX200E) electric start high volume pump beside field tanks for instantaneous high flow filling of mobile water carts. Key-operated electric start avoids manual pull rope fatigue during busy harvest operations. The self-priming pump cavity clears suction air rapidly to re-establish water flow in seconds.
Emergency water delivery achieves a maximum delivery rate of 510 L/min and develops a maximum elevation head of 70 m. Internal hydraulic architecture features a marine grade aluminium casing with big belly priming geometry, a single piece closed aluminium impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 45 kg in standard operating trim.
Mechanical drive is provided by a Honda GX200 6.5HP electric start petrol engine (battery supplied separately) producing 6.5 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Battery mounting tray supports the electric-start system while anti-vibration mounting isolates vibration and simplifies site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.6 m.
- A single-piece closed impeller delivers 70 m head pressure with low petrol fuel usage.
- Large diameter 3-inch suction and discharge ports maximize bulk transfer rates.
- The serviceable suction valve holds prime in the casing between jobs.
- Battery tray with colour-coded leads supports the electric-start system.
- Backed by a 5-year pump end warranty from Aussie Pumps with 3-year Honda GX engine cover.
SPECIFICATIONS
| Max Flow | 510 L/Min |
| Max Head | 70 m |
| Power | Honda GX200 Petrol Electric Start Engine |
| Suitable For | High Pressure Spraying |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor drive and ignition setup power this water pump?
Driven by a genuine Honda GX200 6.5HP electric start petrol engine, the Aussie Pumps Fire Captain Plus (QP305SL/GX200E) utilizes an electric key start ignition for reliable operation in the field.
How deep can this self priming pump draw water vertically?
The QP305SL/GX200E achieves rapid self-priming from up to 7.6 m vertical suction lift, drafting water from open sources without manual line filling once charged.
What maximum pumping volume and static head does this equipment develop?
Rated for a maximum flow of 510 L/min and a maximum head of 70 m, the QP305SL-GX200E adjusts volumetric output across its performance curve.
What factory warranty backing and technical support are included?
Equipment reliability for the QP305SL GX200E is backed by a 5-year pump end warranty, 3-year Honda GX engine warranty, offering nationwide service agent and spare parts support.
Which pipe thread sizes and outlet options are featured?
Fitted with a 80 mm BSP suction port and 80 mm BSP discharge arrangement, the Aussie QP305SL/GX200E connects straightforwardly to field hoses.
