SKU: QP305SL/L70E

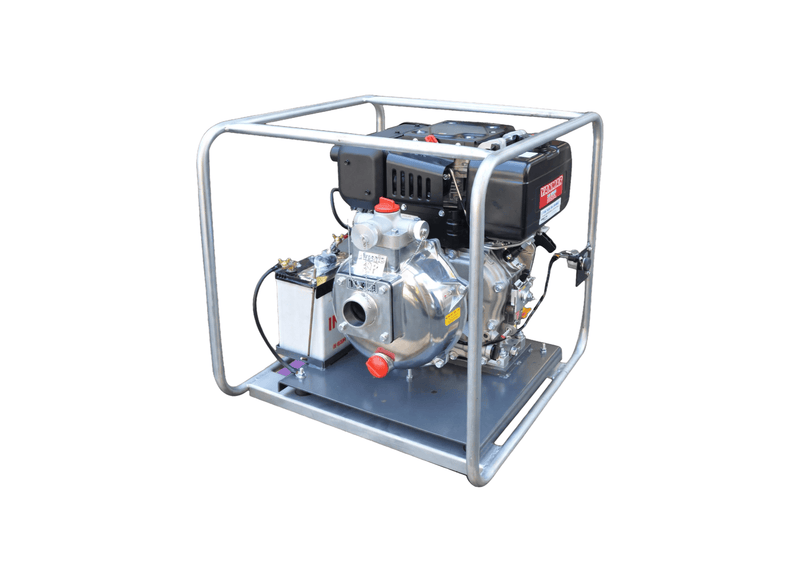

Aussie Pumps Fire Captain Plus QP305SL/L70E Aluminium 7HP Firefighting Pump with Yanmar L70E Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Broadacre crop irrigators and livestock transport depots operate the Aussie Fire Chief (QP305SL/L70E) electric start diesel pump with high volume ports for high volume livestock trough filling and mobile cattle crate washdowns. Enlarged suction ports draw substantial water volume while the diesel engine provides economical continuous operation. The big belly casing primes quickly from muddy dams without requiring check valves on suction hoses.
Emergency water delivery achieves a maximum delivery rate of 500 L/min and develops a maximum elevation head of 60 m. Internal hydraulic architecture features a marine grade aluminium casing with big belly priming geometry, a single piece closed aluminium impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 70 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L70 7HP electric start diesel engine (battery supplied separately) producing 7 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.6 m.
- Closed impeller hydraulics build 60 m of head while sipping diesel.
- Large diameter 3-inch suction and discharge ports maximize bulk transfer rates.
- The serviceable suction valve holds prime in the casing between jobs.
- A fully welded steel roll frame keeps the pump stable and easy to move between jobs.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 500 L/Min |
| Max Head | 60 m |
| Power | Yanmar L70 Diesel Electric Start Engine |
| Suitable For | High Pressure Water Transfer |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What volumetric flow capacity and vertical elevation apply to this unit?
The Aussie Pumps Fire Captain Plus Diesel (QP305SL/L70E) delivers a maximum flow rate of 500 L/min and develops a maximum head of 60 m, depending on site operating conditions.
What engine drive and starting mechanism power this assembly?
Mechanical power for the QP305SL/L70E is supplied by a Yanmar L70 7HP electric start diesel engine, started via an electric key start ignition.
What plumbing connections and discharge port arrangements are fitted?
Plumbing connections for the QP305SL-L70E incorporate 80 mm BSP male intake and 80 mm BSP fittings, matching standard suction and delivery lines.
How deep can this unit prime liquid from open water sources?
The QP305SL L70E provides self-priming capability from up to 7.6 m vertical suction lift, picking up prime swiftly without requiring external line priming.
What factory warranty protection and service support are provided?
Backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, the Aussie QP305SL/L70E is supported by authorized service agents and genuine spare parts across Australia.
