SKU: QP205S/GX160F

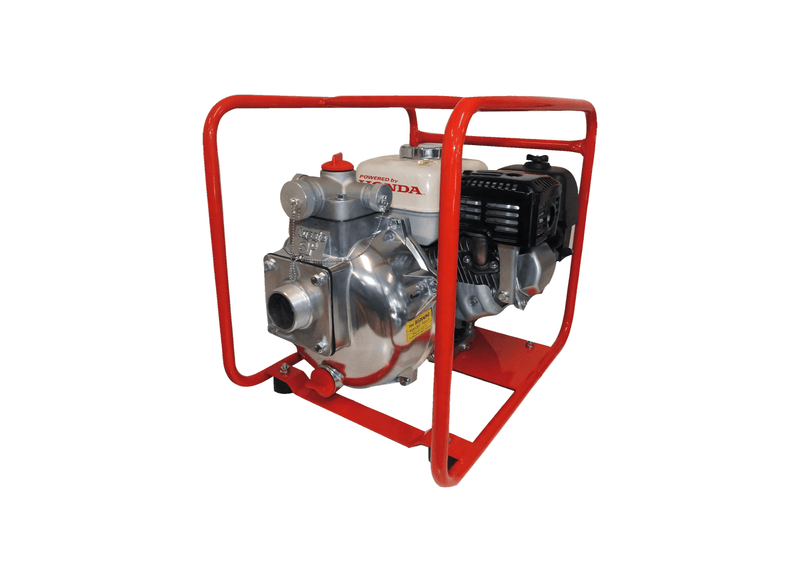

Aussie Pumps Fire Captain QP205S/GX160F Aluminium 5.5HP Firefighting Pump with Honda GX160F Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Fencing contractors and utility maintenance crews transport the Aussie Fire Captain (QP205S/GX160F) full frame pump on utility trays for remote washdowns, dust abatement, and emergency fire fighting. A full tubular steel roll frame guards mechanical components against impact during transport over corrugated station tracks. The marine grade aluminium wet end delivers steady water pressure across extended hose runs.
Structural fully welded steel roll frame with anti-vibration mounts encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Emergency water delivery achieves a maximum delivery rate of 450 L/min and develops a maximum elevation head of 75 m. Internal hydraulic architecture features a marine grade aluminium casing with big belly priming geometry, a single piece closed aluminium impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 30 kg in standard operating trim.
Mechanical drive is provided by a Honda GX160F 5.5HP recoil start petrol engine producing 5.5 HP. Plumbing connections incorporate 2" BSP male inlet & 3-way outlet (2 x 1", 1 x 1.5") with metal caps & chains, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.6 m.
- Closed impeller hydraulics build 75 m of head while sipping petrol.
- A 3-way fire manifold with 2 x 1-inch and 1 x 1.5-inch ports, caps and chains feeds multiple hose lines.
- The serviceable suction valve holds prime in the casing between jobs.
- A tubular steel roll frame encloses the engine and pump against site impacts.
- Aussie Pumps covers the pump end for 5 years with 3-year Honda GX engine warranty support.
SPECIFICATIONS
| Max Flow | 450 L/Min |
| Max Head | 75 m |
| Power | Honda GX160F Petrol Engine |
| Suitable For | High Pressure Spraying |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor drive and ignition setup power this water pump?
Driven by a genuine Honda GX160 5.5HP recoil start petrol engine, the Aussie Pumps Fire Captain QP205S GX160F (QP205S/GX160F) utilizes a manual recoil pull starter for reliable operation in the field.
How deep can this unit prime liquid from open water sources?
The QP205S/GX160F provides self-priming capability from up to 7.6 m vertical suction lift, picking up prime swiftly without requiring external line priming.
What maximum pumping volume and static head does this equipment develop?
Rated for a maximum flow of 450 L/min and a maximum head of 75 m, the QP205S-GX160F adjusts volumetric output across its performance curve.
What factory warranty backing and technical support are included?
Equipment reliability for the QP205S GX160F is backed by a 5-year pump end warranty, 3-year Honda GX engine warranty, offering nationwide service agent and spare parts support.
Which pipe thread sizes and outlet options are featured?
Fitted with a 50 mm BSP suction port and 3-way (2 x 25 mm, 1 x 40 mm) BSP discharge arrangement, the Aussie QP205S/GX160F connects straightforwardly to field hoses.
