SKU: QP205SE/GX160

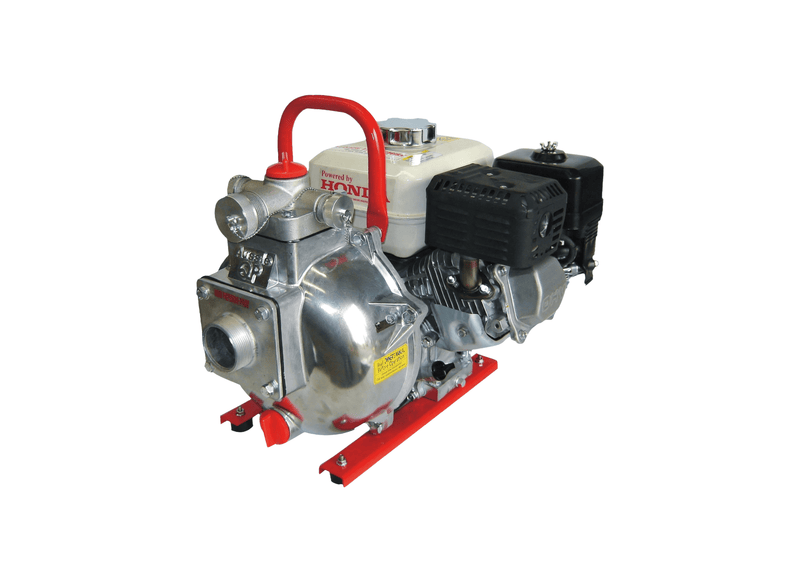

Aussie Pumps Fire Chief QP205SE/GX160 Aluminium 5.5HP Firefighting Pump with Honda GX160 Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Rural landholders, orchardists, and volunteer bushfire fighters deploy the Aussie Fire Chief (QP205SE/GX160) for emergency homestead defense, perimeter protection, and high elevation water movement. Renowned across regional Australia, the big belly casing draws liquid rapidly from dams, swimming pools, and rainwater tanks. Corrosion-resistant aluminium alloy construction withstands intense heat and harsh outdoor weathering.
Emergency water delivery achieves a maximum delivery rate of 450 L/min and develops a maximum elevation head of 75 m. Internal hydraulic architecture features a marine grade aluminium casing with big belly priming geometry, a single piece closed aluminium impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 26 kg in standard operating trim.
Mechanical drive is provided by a Honda GX160 5.5HP recoil start petrol engine producing 5.5 HP. Plumbing connections incorporate 2" BSP male inlet & 3-way outlet (2 x 1", 1 x 1.5") with metal caps & chains, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Lightweight anti-vibration skids with integrated carry handle enclose the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 2-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Closed impeller hydraulics build 75 m of head while sipping petrol.
- A 3-way fire manifold with 2 x 1-inch and 1 x 1.5-inch ports, caps and chains feeds multiple hose lines.
- The serviceable suction valve holds prime in the casing between jobs.
- A low skid base with carry handle keeps the pump stable and easy to move between jobs.
- Aussie Pumps covers the pump end for 5 years with 3-year Honda GX engine warranty support.
SPECIFICATIONS
| Max Flow | 450 L/Min |
| Max Head | 75 m |
| Power | Honda GX160 Petrol Engine |
| Suitable For | Fire Fighting Mop Up |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What suction lift performance and priming depth are achievable?
With vertical suction lift reaching up to 7.6 m, the Aussie Pumps Fire Chief QP205SE (QP205SE/GX160) draws water directly from dams and pits once the pump casing is charged.
Which warranty terms cover the pump casing and drive engine?
Protection for the QP205SE/GX160 includes a 5-year pump end warranty, 3-year Honda GX engine warranty, providing verified Australian warranty backing and technical support.
How is the drive engine configured and started on this unit?
Power for the QP205SE-GX160 comes from a Honda GX160 5.5HP recoil start petrol engine, equipped with a manual recoil pull starter for straightforward field deployment.
Which suction and delivery port fittings are included?
Suction intake on the QP205SE GX160 is provided via 50 mm BSP threading, with delivery directed through 3-way (2 x 25 mm, 1 x 40 mm) BSP fittings.
What peak flow rate and pumping head are achievable?
Hydraulic output for the Aussie QP205SE/GX160 reaches up to 450 L/min in volumetric flow and up to 75 m in total head, depending on system duty.
