SKU: QP205SE/L48

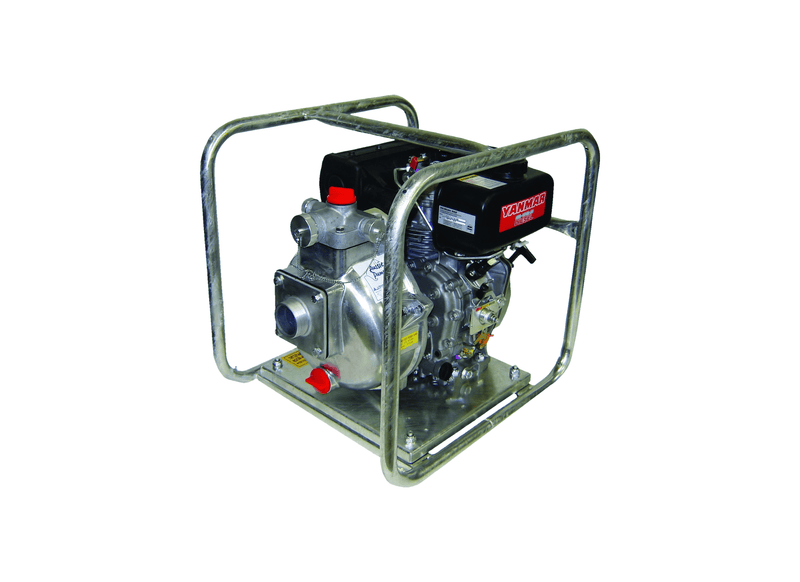

Aussie Pumps Fire Chief QP205SE/L48 Aluminium 4.8HP Firefighting Pump with Yanmar L48 Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Rural landholders and forestry workers deploy the Aussie Fire Chief (QP205SE/L48) diesel recoil pump for bushfire fighting in regions where petrol storage is restricted or vapor ignition poses hazards. Diesel fuel economy allows prolonged continuous pumping without frequent refuelling stops during wild bushfires. Marine grade aluminium casing metallurgy withstands radiant heat and airborne embers.
Emergency water delivery achieves a maximum delivery rate of 400 L/min and develops a maximum pressure of 85 psi. Internal hydraulic architecture features a marine grade aluminium casing with big belly priming geometry, a single piece closed aluminium impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 45 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L48 4.8HP recoil start diesel engine producing 4.8HP (3.5kW) Diesel. Plumbing connections incorporate 2" BSP male inlet, 3-way outlet (2 x 1", 1 x 1.5") with metal caps & chains, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Galvanised steel roll frame with anti-vibration rubber mounts encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.6 m.
- A single-piece closed impeller delivers 60 m head pressure with low diesel fuel usage.
- Fire ports with metal caps and retention chains come standard for multiline hose lays.
- The serviceable suction valve holds prime in the casing between jobs.
- A low skid base with carry handle keeps the pump stable and easy to move between jobs.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 60 m |
| Power | Yanmar L48 Diesel Engine |
| Suitable For | High Pressure Spraying |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What volumetric flow capacity and vertical elevation apply to this unit?
The Aussie Pumps Fire Chief QP205SE (QP205SE/L48) delivers a maximum flow rate of 400 L/min and develops a maximum head of 60 m, depending on site operating conditions.
What engine drive and starting mechanism power this assembly?
Mechanical power for the QP205SE/L48 is supplied by a Yanmar L48 4.8HP recoil start diesel engine, started via a manual recoil pull starter.
What plumbing connections and discharge port arrangements are fitted?
Plumbing connections for the QP205SE-L48 incorporate 50 mm BSP male intake and 3-way (2 x 25 mm, 1 x 40 mm) BSP fittings, matching standard suction and delivery lines.
From what vertical depth can this self priming unit draw water?
The QP205SE L48 achieves rapid self-priming from up to 7.6 m vertical suction lift, drafting water from open sources without manual line filling once charged.
What factory warranty protection and service support are provided?
Backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, the Aussie QP205SE/L48 is supported by authorized service agents and genuine spare parts across Australia.
