SKU: QP205SE/L48E

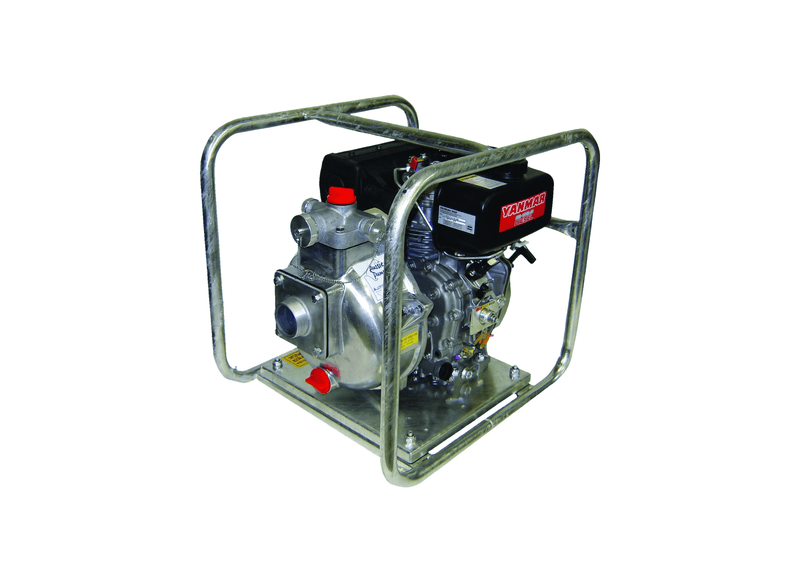

Aussie Pumps Fire Chief QP205SE/L48E Aluminium 4.8HP Firefighting Pump with Yanmar L48E Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Pastoral homesteaders and remote station managers set up the Aussie Fire Chief (QP205SE/L48E) electric start diesel pump for quick-response bushfire defense and unattended livestock water distribution. Electric key starting provides effortless activation for all station personnel during emergencies. The self-priming pump chamber draws water quickly from surface dams and concrete storage tanks.
Emergency water delivery achieves a maximum delivery rate of 400 L/min and develops a maximum pressure of 85 psi. Internal hydraulic architecture features a marine grade aluminium casing with big belly priming geometry, a single piece closed aluminium impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 45 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L48 4.8HP electric start diesel engine (battery supplied separately) producing 4.8HP (3.5kW) Diesel. Plumbing connections incorporate 2" BSP male inlet, 3-way outlet (2 x 1", 1 x 1.5") with metal caps & chains, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Galvanised steel roll frame with battery tray & colour-coded leads encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 2-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Closed impeller hydraulics build 60 m of head while sipping diesel.
- Fire ports with metal caps and retention chains come standard for multiline hose lays.
- The serviceable suction valve holds prime in the casing between jobs.
- A low skid base with carry handle keeps the pump stable and easy to move between jobs.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 60 m |
| Power | Yanmar L48 Diesel Electric Start Engine |
| Suitable For | Fire Fighting Mop Up |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor configuration and ignition system drive the pump?
Driven by a genuine Yanmar L48 4.8HP electric start diesel engine, the Aussie Pumps Fire Chief QP205SE (QP205SE/L48E) utilizes an electric key start ignition for reliable operation in the field.
What vertical suction capability applies for open water drafting?
Drawing water vertically from up to 7.6 m suction depth, the QP205SE/L48E primes quickly from dams, swimming pools, creeks, and storage tanks.
What maximum water delivery and discharge head are developed?
Rated for a maximum flow of 400 L/min and a maximum head of 60 m, the QP205SE-L48E adjusts volumetric output across its performance curve.
How is this unit covered under manufacturer warranty terms?
Equipment reliability for the QP205SE L48E is backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, offering nationwide service agent and spare parts support.
How are the inlet and outlet ports configured on this pump?
Fitted with a 50 mm BSP suction port and 3-way (2 x 25 mm, 1 x 40 mm) BSP discharge arrangement, the Aussie QP205SE/L48E connects straightforwardly to field hoses.
