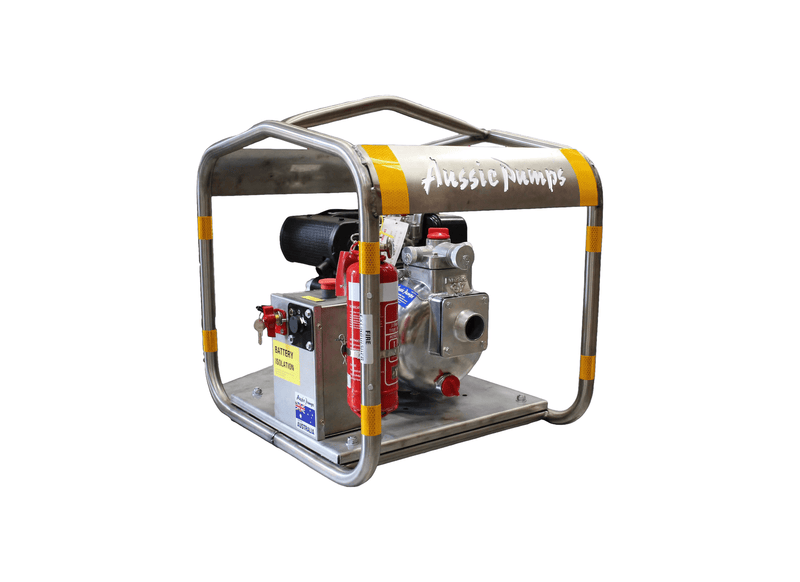

Aussie Pumps Fire Chief QP205SE/L48EMS2 Aluminium 4.8HP Firefighting Pump with Yanmar L48EMS2 Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Mine safety coordinators and quarry operators commission the Aussie Mine Boss Fire Chief (QP205SE/L48EMS2) diesel pump for mobile equipment washdowns and site perimeter fire protection across resource tenements. Fitted with emergency stop controls and a lockable battery isolator, the unit complies with Australian mine site safety standards. Marine grade aluminium casing metallurgy withstands corrosive mine water and saline slurry mist.
Emergency water delivery achieves a maximum delivery rate of 400 L/min and develops a maximum elevation head of 60 m. Internal hydraulic architecture features a marine grade aluminium casing with big belly priming geometry, a single piece closed aluminium impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 55 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L48 4.8HP electric start diesel engine (includes sealed gel battery) producing 4.8 HP. Plumbing connections incorporate 2" BSP male inlet & 3-way outlet (2 x 1", 1 x 1.5") with metal caps & chains, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Mine Boss structural stainless steel frame with center lifting bar, lockable battery isolation, E-stop & fire extinguisher encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 2-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Closed impeller hydraulics build 60 m of head while sipping diesel.
- Fire ports with metal caps and retention chains come standard for multiline hose lays.
- The serviceable suction valve holds prime in the casing between jobs.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 60 m |
| Power | Yanmar L48 Diesel Electric Start Engine |
| Suitable For | Spray Irrigation |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this assembly satisfy resource sector site safety requirements?
Built to satisfy Australian resource site safety rules, the Aussie Pumps Mine Boss Fire Chief QP205SE L48EMS2 (QP205SE/L48EMS2) incorporates a welded stainless steel frame, lockable battery isolation switch, and emergency stop control.
Which warranty terms cover the pump casing and drive engine?
Protection for the QP205SE/L48EMS2 includes a 5-year pump end warranty, 2-year Yanmar engine warranty, providing verified Australian warranty backing and technical support.
How is the drive engine configured and started on this unit?
Power for the QP205SE-L48EMS2 comes from a Yanmar L48 4.8HP electric start diesel engine, equipped with an electric key start ignition for straightforward field deployment.
Which suction and delivery port fittings are included?
Suction intake on the QP205SE L48EMS2 is provided via 50 mm BSP threading, with delivery directed through 3-way (2 x 25 mm, 1 x 40 mm) BSP fittings.
What peak flow rate and pumping head are achievable?
Hydraulic output for the Aussie QP205SE/L48EMS2 reaches up to 400 L/min in volumetric flow and up to 60 m in total head, depending on system duty.
