SKU: QP205SEL48ENFSO

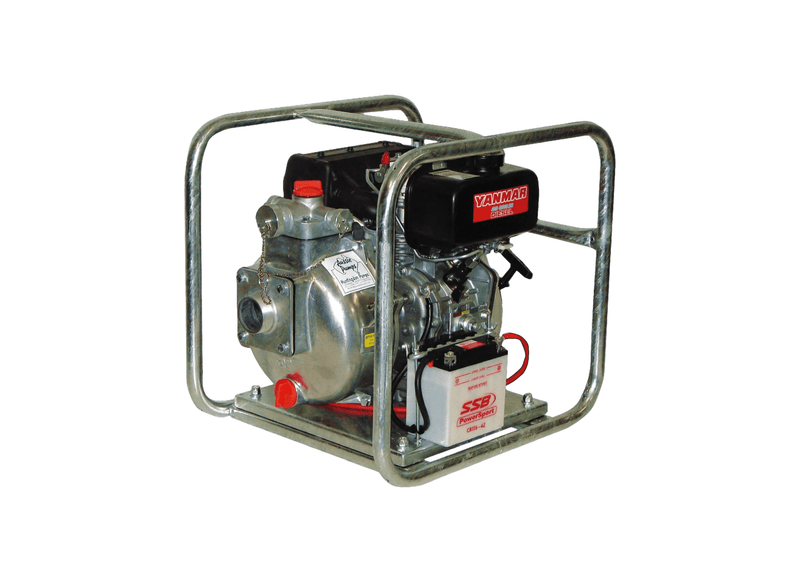

Aussie Pumps Fire Chief QP205SEL48ENFSO Aluminium 4.8HP Solenoid Base Mount Fire Pump with Yanmar Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Key-switch starting and shutdown are supported by the engine stop/start solenoid in this frame-free base-mounted transfer configuration. Its compact layout is well suited for mounting on field service vehicles and automated machinery skids where frames are omitted.
Hydraulic performance encompasses a maximum shut-off head of 60 m (85 PSI) at zero flow and an open-discharge flow capacity of up to 400 L/min at zero static head. The marine-grade aluminium wet end features a single-piece closed impeller, carbon ceramic mechanical seal, nitrile check valve, and zinc-plated casing bolts simplify routine on-site servicing. Boxed mass: 45 kg.
Driven by an electric-start Yanmar L48 (4.8 HP) diesel engine fitted with a stop/start solenoid (battery kit not included). Plumbing incorporates a 2" BSP male inlet and a 3-way discharge manifold (2 x 1" & 1 x 1.5"), self-priming reliably from vertical suction depths up to 7.6 m. High-torque Yanmar diesel engine drive delivers strong fuel economy and operating endurance on site.
Equipped with replaceable flanged suction and discharge elbows and polycarbonate priming plugs to simplify routine servicing. Supported by factory technical assembly diagrams, user manuals, and genuine replacement component stockists through Aussie Pumps distribution networks across Australia.
Features- Engine stop/start solenoid fitted for key-switch starting and shutdown logic.
- Electric-start Yanmar L48 (4.8 HP) diesel engine provides solid fuel economy (battery kit not included).
- Hydraulic limits: maximum shut-off head of 60 m (85 PSI) at zero flow, with open-discharge flow capacity up to 400 L/min at zero head.
- Multi-port 2-inch inlet with 3-way discharge manifold for flexible hose distribution.
- Marine-grade aluminium pump body with replaceable flanged suction and discharge elbows.
- Self-primes rapidly to 7.6 m vertical suction depth through big-belly casing geometry.
- Includes a 5-year Aussie Pumps warranty on the pump body and a 2-year Yanmar diesel engine warranty.
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 60 m |
| Power | Yanmar L48 Diesel Solenoid Start Engine |
| Suitable For | Remote Fire Skids |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the factory stop solenoid facilitate vehicle cab control?
Equipped with an integrated stop solenoid, the Aussie Pumps Fire Chief QP205SE (QP205SEL48ENFSO) allows remote dash-switch shutdown directly from a vehicle cab or automated controller as soon as mobile tanks run dry.
What suction lift performance and priming depth are achievable?
Vertical suction depth for the QP205SEL48ENFSO is rated up to approximately 7.6 m, supporting direct water drafting from open reservoirs.
How is the drive engine configured and started on this unit?
The QP205SEL48ENFSO features a Yanmar L48 4.8HP electric-start diesel engine, incorporating electric key start with integrated stop/start solenoid for straightforward field deployment.
Which suction and delivery port fittings are included?
The QP205SEL48ENFSO features 2" BSP male intake and a 3-way discharge head (two 1" ports and one 1.5" port), allowing rapid hookup to common delivery lines.
What peak flow rate and pumping head are achievable?
The QP205SEL48ENFSO provides up to approximately 400 L/min in water flow and up to approximately 60 m in elevation head, with actual delivery determined by the operating point.
