SKU: QP305/GX160

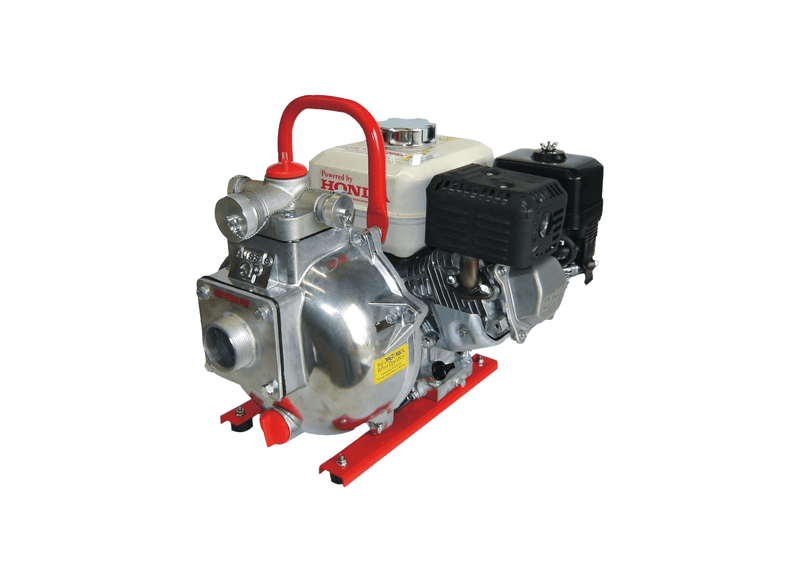

Aussie Pumps Fire Chief QP305/GX160 Aluminium 5.5HP Firefighting Pump with Honda GX160 Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Sugarcane growers and flood plain farmers deploy the Aussie Fire Chief (QP305/GX160) high volume pump for rapid transfer from irrigation channels, dam skimming, and paddock fire protection. Enlarged suction plumbing allows higher fluid intake volume while holding strong discharge velocity across multiple hose lines. A large priming body enables swift suction pickup without tedious foot valve maintenance.
Emergency water delivery achieves a maximum delivery rate of 510 L/min and develops a maximum elevation head of 70 m. Internal hydraulic architecture features a marine grade aluminium casing with big belly priming geometry, a single piece closed aluminium impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 26 kg in standard operating trim.
Mechanical drive is provided by a Honda GX160 5.5HP recoil start petrol engine producing 5.5 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Anti-vibration skids with integrated carry handle enclose the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.6 m.
- A single-piece closed impeller delivers 70 m head pressure with low petrol fuel usage.
- Large diameter 3-inch suction and discharge ports maximize bulk transfer rates.
- The serviceable suction valve holds prime in the casing between jobs.
- A low skid base with carry handle keeps the pump stable and easy to move between jobs.
- Backed by a 5-year pump end warranty from Aussie Pumps with 3-year Honda GX engine cover.
SPECIFICATIONS
| Max Flow | 510 L/Min |
| Max Head | 70 m |
| Power | Honda GX160 Petrol Engine |
| Suitable For | High Pressure Water Transfer |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What length of manufacturer warranty coverage protects this equipment?
Coverage for the Aussie Pumps Fire Chief (QP305/GX160) includes a 5-year pump end warranty, 3-year Honda GX engine warranty, supported by certified service facilities and parts availability throughout Australia.
How is the plumbing connection arranged for intake and discharge lines?
The QP305/GX160 is plumbed with 80 mm BSP male suction threading and 80 mm BSP discharge ports, allowing fast hookup on site.
How deep can this unit prime liquid from open water sources?
The QP305-GX160 provides self-priming capability from up to 7.6 m vertical suction lift, picking up prime swiftly without requiring external line priming.
What are the discharge limits for volumetric flow and total head?
The QP305 GX160 achieves a maximum flow capacity of 510 L/min and a maximum head limit of 70 m, varying across operating requirements.
Which engine package and start type are installed?
The Aussie QP305/GX160 operates on a Honda GX160 5.5HP recoil start petrol engine, utilizing a manual recoil pull starter to drive the hydraulic pump assembly.
