SKU: G2TMK-A 2.2KW 1P

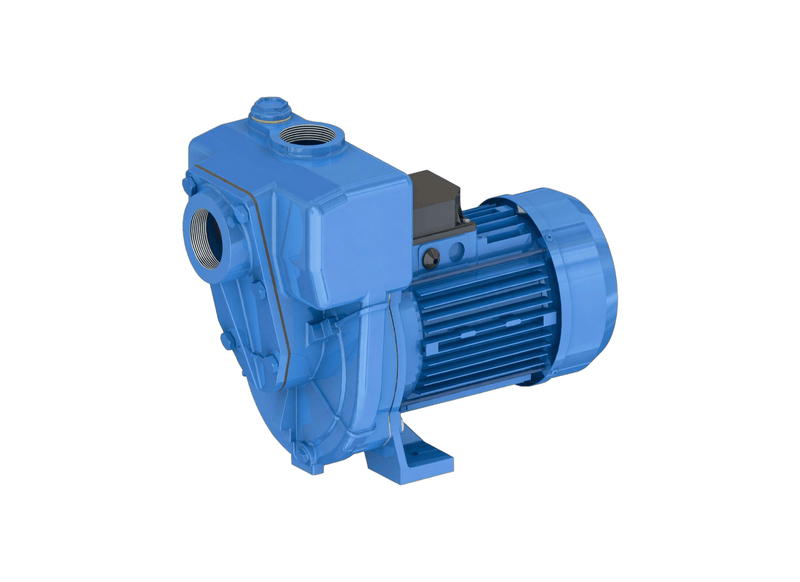

Aussie Pumps GMP G2TMK-A 2.2KW 1P Cast Iron Single Phase High-Head Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Commercial vehicle wash bays, spray lines, and factory booster skids utilize the Aussie GMP G2TMK-A pump on standard single-phase mains power. Its close-coupled footprint allows straightforward installation inside compact utility plant rooms.
High-pressure throughput reaches an open-discharge flow rate up to 375 L/min at zero head and produces a 33.5 m (48 PSI) shut-off head at zero flow. A close-grained cast iron volute houses an open transfer impeller capable of passing small suspended solids up to 5 mm.
Single-phase electric propulsion is furnished by a 2.2 kW TEFC two-pole motor rated to IP54, supplied unwired without a lead or plug for permanent wall-switch wiring. Internal self-priming passages pull clean water from 6 m vertical depths without a foot valve.
Hardwearing close-grained cast iron metallurgy encloses a replaceable suction port, 316 stainless shaft, and carbon/alumina seal handling fluid temperatures up to 70°C. Threaded 2-inch female BSP ports streamline plumbing hookups. Backed by Aussie Pumps 3-year warranty.
Features- Pressure delivery reaches up to 33.5 m maximum shut-off head (48 PSI) on 240 V single-phase.
- Open-discharge fluid delivery achieves up to 375 L/min at zero static head.
- High-torque 2.2 kW single-phase TEFC two-pole electric motor with IP54 ingress protection.
- Self-primes rapidly from vertical suction depths up to 6 m without a foot valve.
- Close-grained cast iron body fitted with a 316 stainless steel motor shaft and replaceable suction port.
- Handles small suspended solids up to 5 mm for versatile washdown and transfer duties.
- Includes Aussie Pumps 3-year commercial GMP warranty coverage.
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 34 m |
| Power | 2.2 kW / 240v |
| Suitable For | Tank Water Supply |
| Body Material | Cast Iron |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How do the multi stage closed impellers build high pressure across discharge lines?
Multi-stage closed impellers inside the Aussie Pumps GMP High Pressure Transfer G2TMK-A (G2TMK-A 2.2KW 1P) build pressure successively across internal chambers, developing high head to push water up steep elevation rises.
What electric drive specifications and enclosure standards power this assembly?
Shaft propulsion for the G2TMK-A 2.2KW 1P is supplied by a single-phase electric motor rated at 2.2 kW, operating on 240 V line power with an IP54 enclosure.
What vertical intake depth is supported without flooded suction pressure?
Built-in priming passages on the G2TMK-A-2.2KW-1P draw water vertically from depths down to 6 m once the volute is primed, requiring no suction foot valve.
What particle clearance capacity is built into this high pressure casing?
Closed multi-stage impellers on the G2TMK A 2.2KW 1P accommodate fine suspended particles up to 5 mm in diameter, ideal for clean and screened water transfer.
What volume of liquid can be transferred per minute alongside maximum vertical head?
The hydraulic wet end of the G2TMK-A (G2TMK-A 2.2KW 1P) produces a maximum fluid throughput of approximately 400 L/min while reaching a maximum vertical head of approximately 34 m.
