SKU: G2TMK-A/ST 3KW

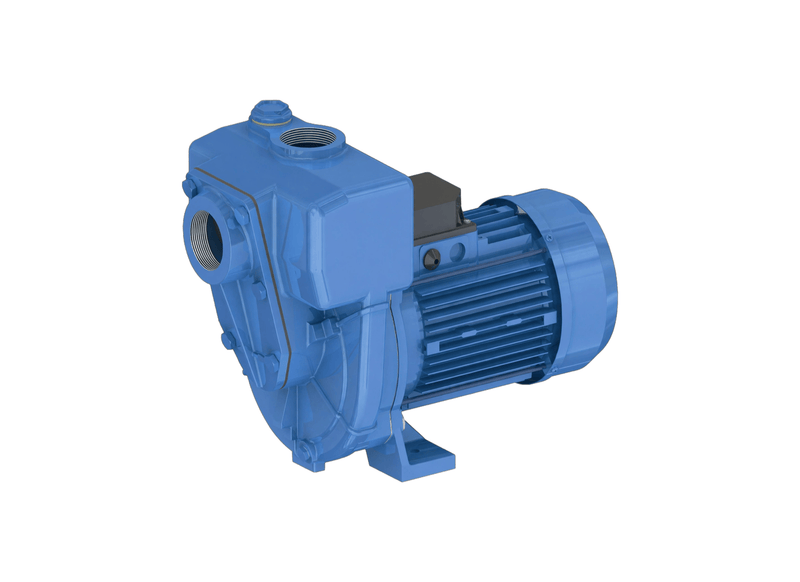

Aussie Pumps GMP G2TMK-A/ST 3KW Cast Iron Semi-Trash Pump for Commercial Washdown with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Machinery wash bays, truck washdown racks, and commercial sump drainage systems utilize the Aussie GMP G2TMK-A/ST motor-driven unit . The close-coupled semi-trash layout allows compact footprint mounting inside crowded processing rooms and vehicle bays.
Waterway discharge reaches an open-discharge flow of 400 L/min at zero static head and produces a 34 m (48 PSI) shut-off head at zero flow. Its open semi-trash impeller processes suspended particulate, grit, and washdown solids up to 8 mm without jamming the wet end.
Electric drive torque is furnished by a 3 kW three-phase 415 V TEFC motor rated to IP55 enclosure protection, supplied unwired without a lead or plug for direct switchboard wiring. The internal casing self-primes from vertical suction depths of 6 m without a foot valve.
Tungsten and silicon carbide mechanical seal faces and a replaceable suction port protect the cast iron volute against grit erosion up to 70°C intermittently. Threaded 2-inch female BSP ports simplify field piping. Backed by Aussie Pumps 3-year GMP commercial warranty.
Features- Semi-trash design combines 34 m maximum shut-off head (48 PSI) with 8 mm solids passage.
- Delivers fluid movement up to 400 L/min open discharge volume at zero static head.
- Commercial 3 kW three-phase 415 V TEFC electric motor with IP55 ingress protection.
- Rapid self-priming wet end lifts dirty water from vertical depths of 6 m without a foot valve.
- Silicon carbide mechanical seal faces resist slurry abrasion and gritty wash-bay runoff.
- Close-grained cast iron construction includes a stainless steel motor shaft and replaceable suction port.
- Backed by an Aussie Pumps 3-year GMP pump warranty.
SPECIFICATIONS
| Max Flow | 400 L/Min |
| Max Head | 34 m |
| Power | 3 kW / 415v |
| Suitable For | Tank Water Supply |
| Body Material | Cast Iron |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Can the semi trash wet end convey suspended solids without clogging lines?
Internal semi-trash passages on the Aussie Pumps GMP High Pressure Semi-Trash G2TMK-A/ST (G2TMK-A/ST 3KW) clear suspended particulate matter up to 8 mm in diameter, supporting dirty water and effluent transfer.
How is the electric drive motor configured for plant electrical hookups?
The G2TMK-A/ST 3KW connects to a three-phase 415 V plant supply to power a 3 kW electric motor enclosed in an IP55 terminal casing.
What component protects the casing interior from slurry friction?
An internal sacrificial AISI 316 stainless steel wear plate on the G2TMK-A-ST-3KW takes abrasive friction from suspended silt, extending volute service life.
From what vertical depth can this self priming unit lift water out of storage sumps?
Built-in priming passages on the G2TMK A ST 3KW draw water vertically from depths down to 6 m once charged, requiring no intake foot valve.
What fluid output and maximum vertical head are rated on this assembly?
Operating under full power, the G2TMK-A/ST (G2TMK-A/ST 3KW) delivers up to approximately 400 L/min at peak flow and reaches an elevation head of approximately 34 m.
