SKU: G2TMK-A/X/2.2KW3P

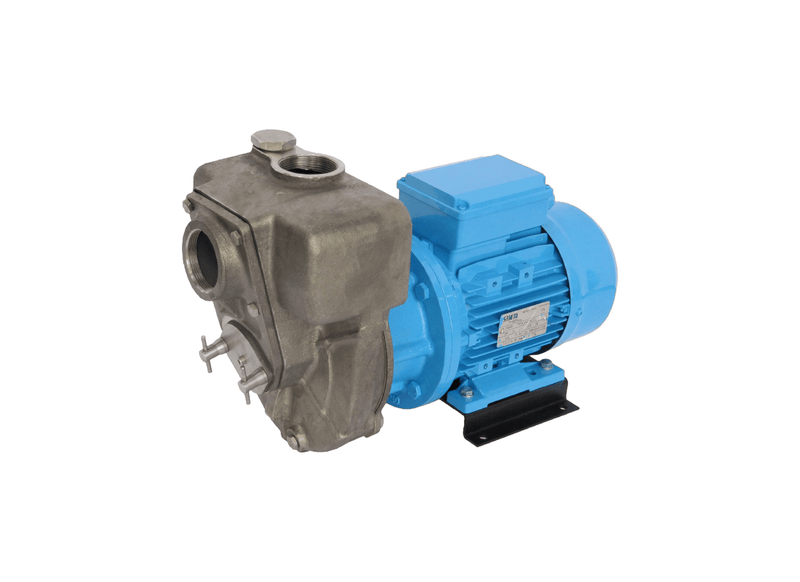

Aussie Pumps GMP G2TMK-A/X/2.2KW3P Stainless Steel Three Phase Chemical Transfer Pump with High-Head Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Chemical washdown racks, solvent spray lines, and AdBlue® bulk distribution skids utilize the Aussie GMP G2TMK-A/X pump in cast large stainless steel. Its close-coupled footprint allows straightforward installation inside compact processing rooms.
High-pressure chemical flow reaches an open-discharge volume of 340 L/min at zero static head and produces a 32 m (46 PSI) shut-off head at zero flow. A cast 316 stainless steel volute houses a high-head stainless impeller passing particulate matter up to 5 mm cleanly.
Compact chemical drive torque is furnished by a 2.2 kW three-phase 415 V TEFC two-pole motor rated to IP55, supplied unwired for permanent wall-switch wiring. Internal self-priming passages pull clean water from 6 m vertical depths without a foot valve.
Cast 316 stainless steel metallurgy encloses a replaceable 316 SS suction cover and mechanical seal encased in 316 stainless steel for fluid temperatures up to 70°C. Threaded 2-inch female BSP ports streamline plumbing hookups. Backed by Aussie Pumps 3-year warranty.
Features- High-pressure chemical output reaches up to 32 m maximum shut-off head (46 PSI) in full 316 stainless steel.
- Open-discharge fluid delivery achieves up to 340 L/min at zero static head.
- Cast 316 stainless steel body and high-head impeller resist solids-laden acids, solvents, and AdBlue®.
- Industrial 2.2 kW three-phase 415 V TEFC two-pole motor rated to IP55 washdown standards.
- Self-primes rapidly from vertical suction depths up to 6 m without a foot valve.
- Replaceable 316 stainless steel suction cover protects the volute from hydraulic wear.
- Includes Aussie Pumps 3-year commercial GMP warranty coverage.
SPECIFICATIONS
| Max Flow | 340 L/Min |
| Max Head | 32 m |
| Power | 2.2 kW / 415v |
| Suitable For | Marine Washdown |
| Body Material | 316 Stainless Steel |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How do the multi stage stainless steel impellers build high pressure for chemical transfer?
For the Aussie Pumps GMP 316 Stainless Steel ATEX High Pressure G2TMK-A/X (G2TMK-A/X/2.2KW3P), multi-stage closed 316 stainless steel impellers generate high static head up to approximately 32 m to inject aggressive reagents into elevated reactors.
What explosion protection rating equips this pump for hazardous site zones?
For the G2TMK-A/X/2.2KW3P, certified explosion-proof motor construction enables the unit to operate safely in hazardous chemical vapor zones without ignition risks.
Which voltage feed and kilowatt rating power the close coupled drive?
Mechanical power on the G2TMK-A-X-2.2KW3P is delivered by a three-phase electric motor generating 2.2 kW on 415 V line supply, enclosed in an IP55 casing.
What intake lift elevation can the pump achieve from chemical collection sumps?
Operating with built-in priming dynamics, the G2TMK A X 2.2KW3P draws chemical solutions from vertical depths up to 6 m without a suction foot valve.
What maximum fluid output and vertical pumping head are developed across lines?
Hydraulic performance for the G2TMK-A/X (G2TMK-A/X/2.2KW3P) produces a maximum flow rate of approximately 340 L/min and achieves a maximum elevation head of approximately 32 m.
