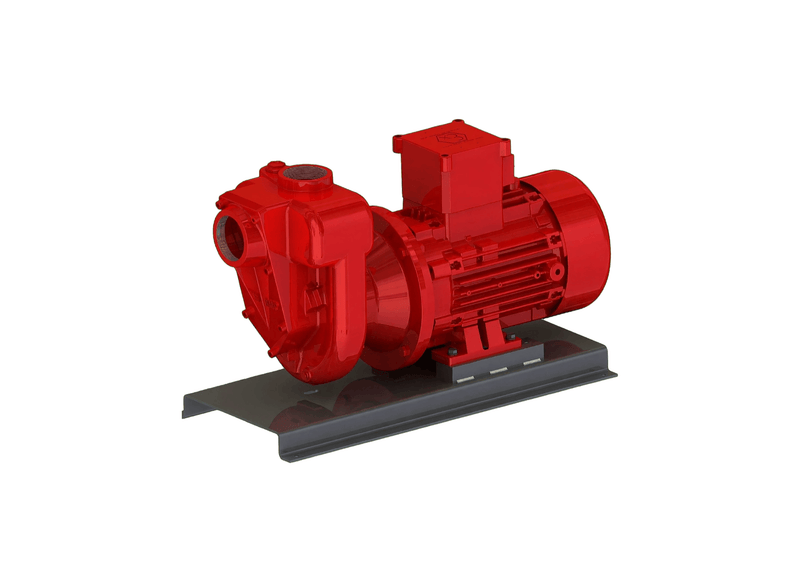

Aussie Pumps GMP G3TMK-A ATEX5.5 High-Head Flameproof Three Phase Diesel Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Mid-range high-head flameproof duty is rated a 40-metre shut-off head with 910 litres a minute, letting classified-area transfer stations push diesel uphill without staging pumps in series. One 5.5 kW unit replaces two smaller ones. Single-stage uphill classified transfer is G3TMK-A ATEX5.5, replacing two pumps in series.
Delivery peaks at 910 L/min open flow, shutting off at 40 m head (57 PSI), rated on fresh-water viscosity liquids. The heavy-duty cast wet end with renewable suction cover carries an open-style impeller passing 10 mm solids, with standard Viton/carbon/alumina sealing.
Replacing two smaller pumps in series, the 5.5 kW three-phase 415 V ATEX motor delivers single-stage uphill transfer with flameproof certification in an IP55 frame on steel. The 3-inch suction and discharge self-prime from 6 m for hillside station layouts.
The application set covers diesel and fuel-oil transfer in hazardous environments, with machinery, marine diesel, earth movers, mining plant and generator refuelling all included. It is also listed for heating-oil transfer and waste-oil collection at fixed facilities or mobile maintenance locations.
Features
- Series-replacing 5.5 kW 415 V three-phase ATEX motor with IP55 protection mounts on a steel base plate for hillsides.
- Peak flow of 910 L/min, shutting off at 40 m (57 PSI) climbs transfer stations in one stage.
- Hillside-station 3-inch hydraulics with 10 mm solids passage handle unfiltered hillside sources.
- High-head diesel resistance comes from standard Viton, carbon and alumina mechanical seals.
- Hillside-ready 6 m self-priming with a bolt-off cover keeps remote stations serviceable.
- Flameproof configuration is selected for diesel-transfer work in the listed hazardous-area applications.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 910 L/Min |
| Max Head | 40 m |
| Power | 5.5 kW / 415v |
| Suitable For | Diesel Fuel Oil Transfer In Hazardous Environments |
| Body Material | Cast Iron |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the certified flameproof terminal enclosure protect hazardous refueling areas during solvent and fuel decanting?
Built for hazardous atmospheres, the Aussie Pumps ATEX Electric High Pressure G3TMK-A/ATEX (G3TMK-A-ATEX5.5) incorporates a certified flameproof terminal box and motor frame to stop ignition of surrounding gases.
What terminal enclosure protection seals the electric motor against moisture within outdoor switchboard setups?
Incoming electrical supply operates the G3TMK A ATEX5.5 through an electric motor delivering 5.5 kW 415V 3-Phase.
What maximum water displacement and vertical head does this package develop under full operating speed?
Discharge performance for the G3TMK-A ATEX5.5 yields an open flow volume of approximately 910 L/min and reaches a maximum shut-off elevation of approximately 40 m.
From what depth below ground can internal fluid pathways draft water automatically during everyday operations?
Built-in priming passages on the G3TMK-A ATEX5.5 draw fluid vertically from depths up to 6 m without requiring an external foot valve once the casing is filled.
What diameter solid matter can flow through the internal waterways without stalling the wet end in everyday paddock dewatering?
An open non-clog cast iron impeller on the G3TMK-A/ATEX (G3TMK-A ATEX5.5) passes spherical solids and debris up to 10 mm in diameter without choking internal water passages.
