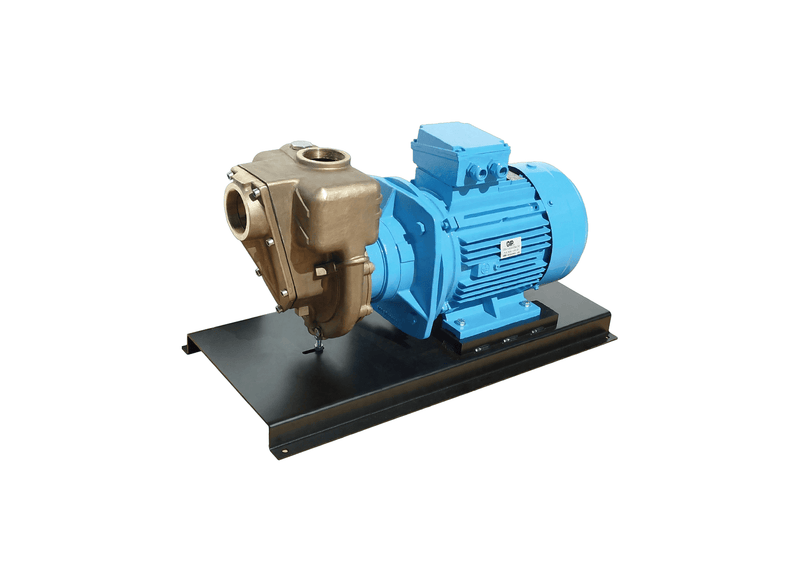

Aussie Pumps GMP G3TMK-A/B11KW High-Head Nial Bronze Three Phase Marine Transfer Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
High-rise marina towers and headland properties lift water to upper tanks on this 11 kW high-head bronze pump, cresting a 52-metre shut-off head, while still delivering over a thousand litres a minute open flow. Elevation and volume finally coexist. Tower and tank lifting, shutting off at 52 metres calls for G3TMK-A/B11KW on 415 V supply.
Open flow peaks at 1,030 L/min with shut-off at 52 m (74 PSI) of head. The Mil-Spec equivalent cast nickel-aluminium bronze wet end carries a large open impeller passing 16 mm solids, sealed by carbon on alumina with nitrile rubber in a 316 stainless casing.
Panel wiring connects the 11 kW three-phase 415 V IP55 motor on its steel base plate, arriving without lead or plug for tower-supply installations. Twin 3-inch ports prime from 6 m below, and wear damage isolates to the replaceable suction cover.
This pump is intended for marine deck washdown, bilge pump-out, salvage pumping and marine air-conditioning circulation. Those duties cover regular deck cleaning, bilge clearing and onboard water movement, making it a practical fit for workboats, tenders, fishing vessels and marina service installations. Where Viton seals are specified, AdBlue and chemical transfer are also within the listed application range.
Features
- Tower-supply 11 kW 415 V IP55 motor on a steel base plate takes panel wiring with no lead or plug.
- Open discharge of 1,030 L/min, shutting off at 52 m (74 PSI) lets elevation and volume coexist.
- Continuous-lift construction marks the high-head Mil-Spec equivalent bronze wet end with 3-inch waterways.
- Solids clearance of 16 mm for raw tank water protects the impeller from typical debris.
- Below-pump self-priming of 6 m with isolated wear damage suits basement and ground-level plant rooms.
- Same-unit chemical transfer follows once specified Viton seals are fitted to the tower pump.
- Covered by the 3 year Aussie GMP warranty from installation.
SPECIFICATIONS
| Max Flow | 1030 L/Min |
| Max Head | 52 m |
| Power | 11 kW / 415v |
| Suitable For | Marine Air Conditioning |
| Body Material | Nickel-Aluminium Bronze |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Why is cast bronze chosen over iron for workboat deck washdown and bilge pump out across marine operating environments?
The bronze wet end of the Aussie Pumps Bronze Electric High Pressure G3TMK-A/B (G3TMK-A-B11KW) suits marine environments.
Which line voltage and motor power rating operate this electric pump during fixed installation wiring?
Mechanical power on the G3TMK A B11KW is delivered by an electric drive rated at 11 kW 415V 3-Phase, built for direct connection to site power.
Which total liquid output and vertical elevation pressure does this unit achieve through connected piping?
Operating across its performance curve, the G3TMK-A/B11KW discharges a maximum flow rate of approximately 1030 L/min and develops a maximum elevation head of approximately 52 m.
What vertical suction capability is available when drawing water from pits once the casing is charged?
Vertical suction capability on the G3TMK-A/B11KW reaches up to 6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
How does the open vane impeller pass suspended particles without jamming internal channels in everyday paddock dewatering?
The open vane nickel-aluminium bronze impeller on the G3TMK-A/B (G3TMK-A/B11KW) clears dirty site runoff and solid debris up to 16 mm in diameter without stalling the shaft.
