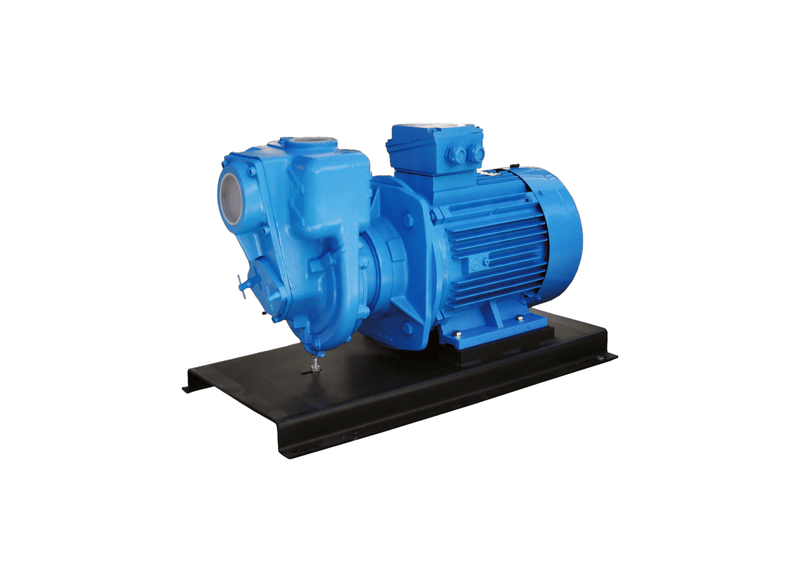

Aussie Pumps GMP G3TMK-A/ST 11KW Cast Iron Three Phase Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Deep quarry pits, concrete batch plants, and industrial wastewater lines rely on the high-power Aussie GMP G3TMK-A/ST motor-driven unit . Its heavy channel-steel foundation provides total mechanical stability during severe continuous pumping cycles.
Fluid transfer moves up to 1,100 L/min open flow at zero static head and establishes a 54.4 m (77 PSI) shut-off head at zero flow. The heavy cast iron casing encloses an open semi-trash impeller that clears large suspended solids up to 16 mm without choking.
Industrial drive torque originates from an 11 kW three-phase 415 V TEFC motor with IP55 enclosure protection, supplied unwired without a lead or plug for isolator integration. Rapid self-priming lifts wastewater from 6 m vertical depths without an intake foot valve.
Chamber wear protection features a replaceable suction port, stainless shaft, and silicon carbide seal enduring slurry at liquid temperatures up to 70°C intermittently. Full 3-inch BSP connections streamline field maintenance. Protected by Aussie Pumps 3-year warranty.
Features- Top-tier discharge pressure reaching up to 54.4 m maximum shut-off head (77 PSI).
- High delivery volume moving up to 1,100 L/min open discharge throughput.
- Handles large 16 mm suspended solids and abrasive particulate without pump choking.
- Industrial 11 kW three-phase 415 V TEFC motor configured for continuous severe-duty cycling.
- Cast structural steel base plate dampens vibration and retains mechanical alignment.
- Silicon carbide mechanical seal faces with alumina counterface resist slurry erosion.
- Includes Aussie Pumps 3-year commercial GMP warranty coverage.
SPECIFICATIONS
| Max Flow | 1100 L/Min |
| Max Head | 55 m |
| Power | 11 kW / 415v |
| Suitable For | Pipeline Transfer |
| Body Material | Cast Iron |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the electric motor connect to local electrical infrastructure?
The Aussie Pumps GMP High Pressure Semi-Trash G3TMK-A/ST (G3TMK-A/ST 11KW) connects to a three-phase 415 V plant supply, drawing rated current to run an 11 kW motor protected by an IP55 casing.
Which maximum pumping throughput and vertical discharge pressure are engineered here?
Hydraulic output for the G3TMK-A/ST 11KW provides a maximum fluid displacement of approximately 1100 L/min and develops a maximum elevation head of approximately 55 m.
What maximum diameter of spherical matter clears through the multi stage water passages?
The multi-stage impeller assembly on the G3TMK-A-ST-11KW passes spherical solids up to 16 mm in diameter without binding internal water channels.
How does the structural steel chassis preserve motor shaft alignment during extended plant operation?
A heavy channel steel base plate anchors the G3TMK A ST 11KW, anchors the 202 kg assembly, maintaining precise shaft alignment during prolonged pumping duty.
What manufacturer coverage and local maintenance backup exist across Australian states?
Equipment protection for the G3TMK-A/ST (G3TMK-A/ST 11KW) includes an Aussie Pumps three-year casing warranty and comprehensive spare parts distribution throughout Australia.
