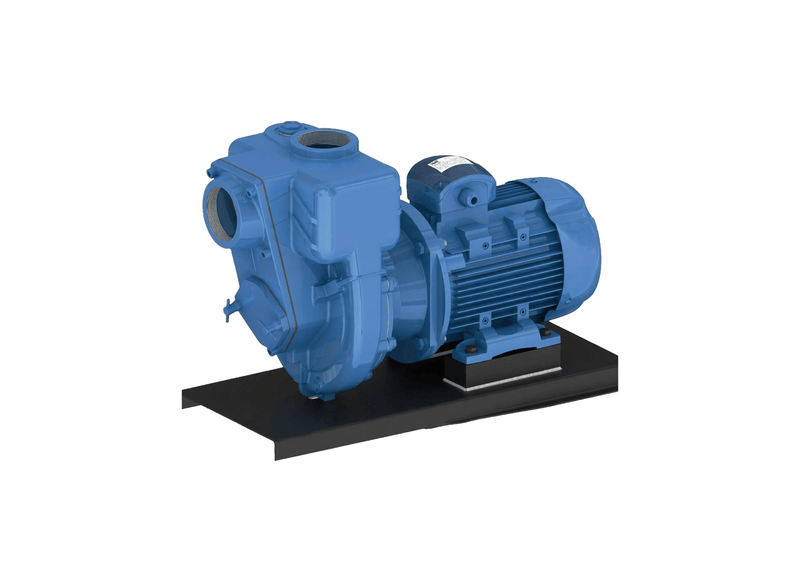

Aussie Pumps GMP G3TMK-A/ST 4KW Cast Iron Three Phase Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Quarry dust suppression, recycling wash plants, and factory dirty-water transfer systems deploy the Aussie GMP G3TMK-A/ST motor-driven unit . A heavy structural steel base plate delivers optimal motor alignment and vibration absorption on concrete slabs.
Free-flow delivery moves up to 800 L/min under open conditions, accompanied by a 35 m (50 PSI) shut-off head at zero flow. The heavy cast iron chamber houses an open semi-trash impeller that clears suspended solids and wash chips up to 8 mm without choking.
Plant drive power originates from a 4 kW three-phase 415 V TEFC motor with IP55 ingress protection, supplied unwired without a lead or plug for hardwired control panel setups. The self-priming wet end pulls liquid from 6 m vertical depths without a suction foot valve.
Tough cast casing metallurgy includes a replaceable suction port, stainless shaft, and silicon carbide seal handling fluid temperatures up to 70°C intermittently. Full 3-inch BSP ports allow rapid piping integration. 3-year Aussie Pumps warranty coverage.
Features- Wide 3-inch porting delivers high-velocity fluid volume up to 800 L/min open discharge.
- High-pressure output develops a 35 m maximum shut-off head (50 PSI) at zero flow.
- Handles suspended particulate and solids up to 8 mm without impeller binding.
- Industrial 4 kW three-phase 415 V TEFC motor configured for continuous factory duty with IP55 rating.
- Mounted on a structural structural steel base plate for vibration dampening and shaft alignment.
- Abrasion-resistant silicon carbide mechanical shaft seal delivers long seal endurance.
- Includes Aussie Pumps 3-year commercial GMP warranty coverage.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum flow output and total dynamic head does this electric pump achieve?
Hydraulic output for the Aussie Pumps GMP High Pressure Semi-Trash G3TMK-A/ST (G3TMK-A/ST 4KW) delivers a maximum volume of approximately 800 L/min and achieves a maximum elevation head of approximately 35 m.
How does this multi stage design push water through long overland poly pipework?
Dual closed impellers on the G3TMK-A/ST 4KW boost pressure successively across internal stages, maintaining steady line pressure over long overland distances.
What line power and phase arrangements are required to energize the motor?
Mechanical power for the G3TMK-A-ST-4KW is supplied by a three-phase electric motor generating 4 kW on 415 V power within an IP55 terminal casing.
What female threaded connections are provided for suction and discharge hoses?
Suction and delivery ports on the G3TMK A ST 4KW feature three-inch female BSP threads that couple directly to standard site piping and transfer hoses.
How does the steel channel base plate minimize vibration during prolonged pumping?
A heavy channel steel base plate anchors the G3TMK-A/ST (G3TMK-A/ST 4KW), anchors the 82.5 kg assembly, dampening motor resonance and maintaining rigid shaft alignment.
