SKU: G3TMK-A/ST 5.5KW

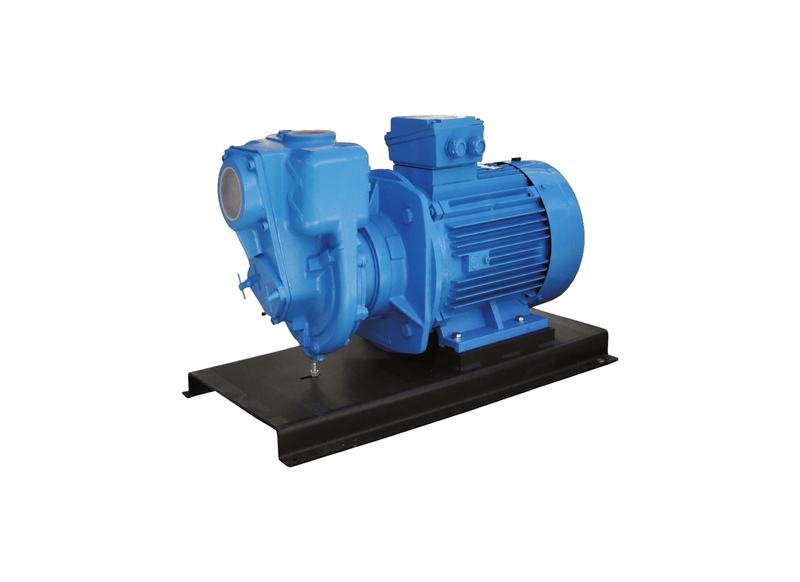

Aussie Pumps GMP G3TMK-A/ST 5.5KW Cast Iron Three Phase Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Concrete batch plants, commercial vehicle wash facilities, and civil drainage sumps utilize the Aussie GMP G3TMK-A/ST motor-driven unit . A heavy channel-steel base frame holds mechanical structurality and absorbs hydraulic torque during continuous duty.
Hydraulic fluid movement reaches an impressive 910 L/min open discharge at zero elevation, accompanied by a 40 m (57 PSI) shut-off head at zero flow. An open semi-trash impeller passes suspended gravel, grit, and solids up to 10 mm without binding the volute.
Plant electrical drive is supplied by an industrial 5.5 kW three-phase 415 V TEFC motor rated to IP55, supplied unwired without a cord for direct plant isolator connection. Centrifugal self-priming action draws dirty water from 6 m vertical depths without a foot valve.
Silicon carbide mechanical seals and a replaceable suction port protect the cast iron wet end against slurry abrasion up to 70°C intermittently. Standard 3-inch BSP ports streamline plumbing maintenance. Covered by Aussie Pumps 3-year commercial warranty.
Features- Fluid delivery reaches up to 40 m maximum shut-off head (57 PSI) in semi-trash service.
- Moves up to 910 L/min open discharge fluid volume for rapid washdown and sump transfer.
- Expanded 10 mm solids handling capability stops clogging from grit, chips, and washdown waste.
- High-efficiency 5.5 kW three-phase 415 V TEFC electric drive rated to IP55 standards.
- Channel-steel base plate isolates mechanical vibration and retains coupling alignment.
- Silicon carbide mechanical seal faces with alumina counterface resist slurry abrasion.
- Protected by an Aussie Pumps 3-year GMP pump warranty.
SPECIFICATIONS
| Max Flow | 850 L/Min |
| Max Head | 40 m |
| Power | 5.5 kW / 415v |
| Suitable For | Pipeline Transfer |
| Body Material | Cast Iron |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What spherical diameter debris can pass through the open impeller assembly?
Internal passageways on the Aussie Pumps GMP High Pressure Semi-Trash G3TMK-A/ST (G3TMK-A/ST 5.5KW) allow spherical debris and site grit up to 10 mm across to move through the casing without clogging.
Which motor drive rating and enclosure protection standard equip this unit?
Shaft propulsion for the G3TMK-A/ST 5.5KW is supplied by a three-phase electric motor rated at 5.5 kW, operating on 415 V line power with an IP55 weatherproof enclosure.
How much volumetric output and elevation lift can this pumping unit deliver?
Operating across its curve, the G3TMK-A-ST-5.5KW yields up to approximately 850 L/min in open discharge and reaches an elevation head of approximately 40 m.
How effectively does the internal liquid chamber evacuate air from suction lines?
Internal liquid recirculation on the G3TMK A ST 5.5KW evacuates suction line air swiftly, establishing prime from vertical depths down to 6 m without a foot valve.
How are particulate solids and fibrous contaminants passed through the wet end?
A removable front cleanout cover on the G3TMK-A/ST (G3TMK-A/ST 5.5KW) provides rapid access to inspect internal chambers and remove trapped debris without disconnecting pipes.
