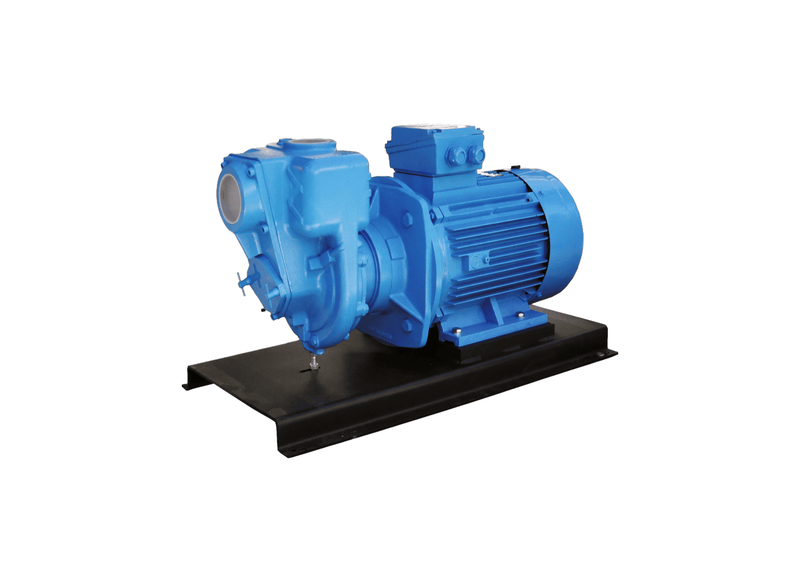

Aussie Pumps GMP G3TMK-A/ST 7.5KW Cast Iron Three Phase Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
High-elevation dirty water transfer, quarry runoff pits, and heavy machinery wash racks deploy the Aussie GMP G3TMK-A/ST motor-driven unit . Its structural steel base plate anchors the assembly securely, isolating pipe stress from internal bearings.
Fluid elevation generates up to 850 L/min at open discharge, with total shut-off head building to an impressive 47 m (67 PSI) at zero flow. A close-grained cast iron volute houses an open semi-trash impeller capable of transferring suspended particles up to 13 mm.
Cast plant drive is powered by a 7.5 kW three-phase 415 V TEFC motor rated to IP55 washdown protection, supplied unwired for hardwired switchboard connection. Internal self-priming passages pull liquid from 6 m vertical depths without requiring a foot valve.
Severe-duty wear protection includes a sacrificial suction port, stainless shaft, and silicon carbide mechanical seal rated to 70°C fluid temperatures intermittently. Standard 3-inch threaded BSP ports facilitate swift plumbing hookups. Backed by a 3-year warranty.
Features- Strong elevation capability producing up to 47 m maximum shut-off head (67 PSI).
- Generates fluid delivery up to 850 L/min open discharge at zero static head.
- Semi-trash hydraulic wet end handles suspended solids and gravel up to 13 mm.
- Powerful 7.5 kW three-phase 415 V TEFC motor configured for continuous factory service with IP55 rating.
- Mounted on a structural channel-steel base plate to ensure stability and reduce vibration.
- Hard silicon carbide mechanical seal resists abrasive wear in dirty water transfer.
- Backed by an Aussie Pumps 3-year GMP pump warranty.
SPECIFICATIONS
| Max Flow | 850 L/Min |
| Max Head | 47 m |
| Power | 7.5 kW / 415v |
| Suitable For | Pipeline Transfer |
| Body Material | Cast Iron |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does forty seven metres of head pressure assist site washdown operations?
On the Aussie Pumps GMP High Pressure Semi-Trash G3TMK-A/ST (G3TMK-A/ST 7.5KW), high static head produces powerful wash streams that drive multiple washdown hoses simultaneously to clean heavy plant equipment.
What electrical feed and kilowatt capacity power the pump impeller shaft?
Mechanical power on the G3TMK-A/ST 7.5KW is delivered by a three-phase electric motor generating 7.5 kW on 415 V line supply with an IP55 sealed casing.
Which mechanical seal arrangement guards the motor shaft against abrasive slurry damage?
Shaft sealing for the G3TMK-A-ST-7.5KW is provided by a silicon carbide mechanical seal with an alumina counterface and nitrile elastomers to resist abrasive wear.
From what vertical distance can this unit pull liquid out of underground tanks?
The self-priming casing of the G3TMK A ST 7.5KW pulls liquid vertically from depths up to 6 m without needing an external foot valve once filled with water.
What peak discharge rate and elevation height are produced under full electrical power?
Under full operating speed, the G3TMK-A/ST (G3TMK-A/ST 7.5KW) generates a maximum fluid displacement rate of approximately 850 L/min and reaches an elevation head of approximately 47 m.
