SKU: G3TMK-A/ST HYD

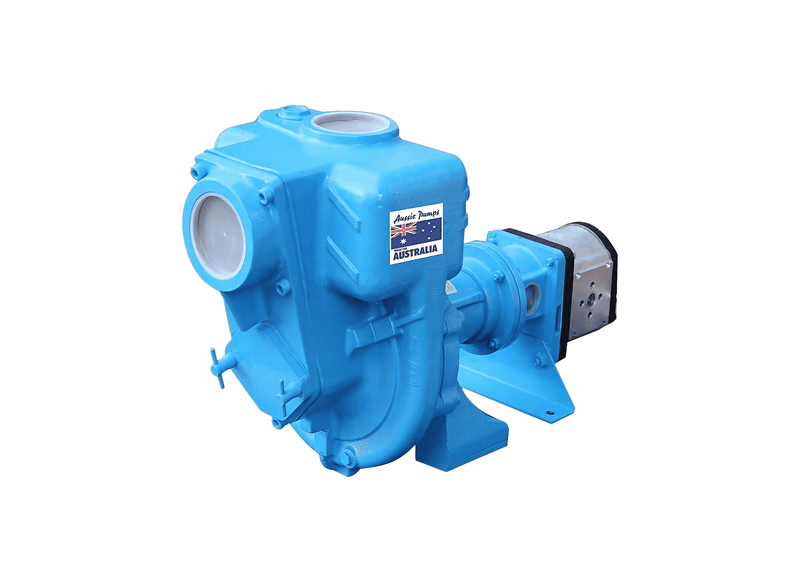

Aussie Pumps GMP G3TMK-A/ST HYD High-Head Cast Iron 3" Ports Hydraulic Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
The hydraulic range peaks, shutting off at 55 metres with this 12.5 kW high-head 3-inch trash pump, lifting up to 1,100 litres a minute to elevations no other hydraulic trash unit reaches. Top of the hydraulic head curve. Highest hydraulic trash duty is G3TMK-A/ST HYD, peaking, shutting off at 55 metres of head.
Maximum flow touches 1,100 L/min, shutting off at 55 m head (78 PSI). The cast-iron wet end with open non-clog impeller passes full flow through 80 mm waterways, priming from 6 m.
No other hydraulic trash unit reaches higher: 34 cm3/rev at 100 bar (12.5 kW) from the carrier circuit becomes up to 1,100 litres a minute, shutting off at 55 metres. Mounted 61 kg weight steadies the range-topping head curve through 80 mm waterways priming from 6 m.
Mine dust suppression, water-cart filling, fire-fighting supply and mine dewatering are the listed duties for this hydraulic configuration. It fits mobile water-cart work, fixed dust-control lines, emergency fire-water provision and routine removal of accumulated water from active mine areas and sumps.
Features
- Curve-topping power demand of 34 cm3/rev at 100 bar (12.5 kW) tops the hydraulic trash range.
- Peak flow of 1,100 L/min, shutting off at 55 m (78 PSI) lifts further than any sister unit.
- Range-leading high-head cast-iron hydraulics are engineered for maximum-elevation transfer duty cycles daily.
- Ports of 80 mm with an open non-clog impeller pass full flow at extreme head.
- Head-steady 61 kg mounting with 6 m self-priming keeps the range-topper planted.
- Cast iron construction is selected to suit the listed liquid-transfer application.
- Covered by the 3 year Aussie Pumps pump warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What warranty protection and replacement parts support back this equipment in Australia following installation on site?
Covered by the 3 year Aussie Pumps pump warranty with factory spare parts support.
How does the carrier vehicle hydraulic circuit deliver mechanical drive torque without requiring an auxiliary fuel engine?
The G3TMK-A-ST-HYD couples directly to a hydraulic motor drive, drawing fluid power from carrier vehicle auxiliary hydraulics without needing an auxiliary fuel engine.
What total liquid discharge rate and vertical pressure elevation are developed when discharging into storage tanks?
Operating across its performance curve, the G3TMK A ST HYD discharges a maximum flow rate of approximately 1100 L/min and develops a maximum elevation head of approximately 55 m.
Is manual suction line priming necessary when drawing fluid from underground tanks without requiring an external foot valve?
Vertical suction capability on the G3TMK-A/ST HYD reaches up to 6 m, evacuating intake line air swiftly without requiring a flooded suction inlet.
What spherical particle size is accommodated through the open passage impeller in everyday paddock dewatering?
Internal casing clearances on the G3TMK-A/ST (G3TMK-A/ST HYD) allow the open cast iron impeller to digest spherical matter up to 16 mm without binding.
