SKU: G3TMK-A/ST HYD22

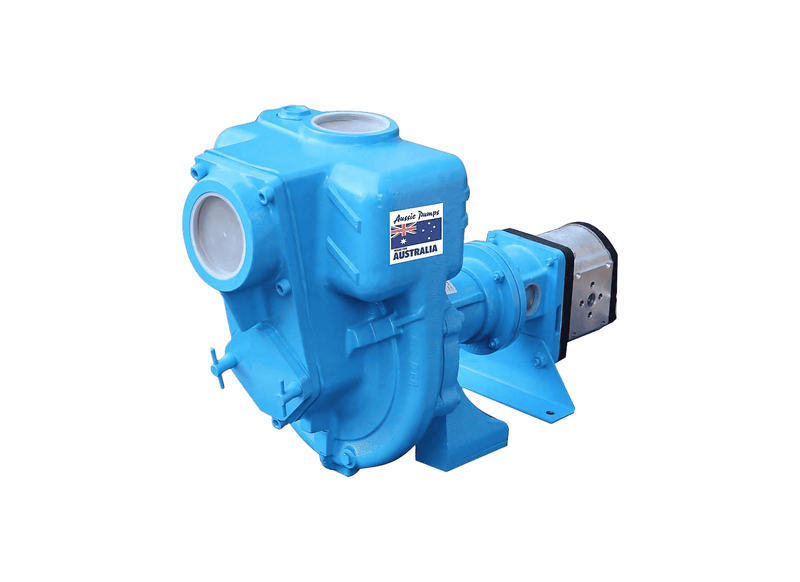

Aussie Pumps GMP G3TMK-A/ST HYD22 High-Head Cast Iron 3" Ports Hydraulic Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
High-head hydraulic dewatering, shutting off at 47 metres runs through this 3-inch GMP trash pump, trading some flow for elevation that standard trash hydraulics cannot touch. Deep-pit and high-bank work is its ground. Deep-pit hydraulic elevation is G3TMK-A/ST HYD22, trading flow for 47-metre head.
Delivery reaches 850 L/min open flow with shut-off at 47 m (67 PSI). The cast-iron wet end with open non-clog impeller works 80 mm ports, priming from 6 m depths.
Trading some flow for elevation standard trash hydraulics cannot touch, the 22 cm3/rev at 150 bar (7 kW) package pushes 850 litres a minute, shutting off at 47 metres for deep-pit and high-bank work. Anchored 61 kg service steadies high-head reaction through 80 mm ports priming from 6 m.
This hydraulic pump covers mine dust suppression, water-cart filling, fire fighting and mine dewatering. The application range suits mobile suppression and water-cart programs as well as fixed site headers, fire-water duties and the regular dewatering work required around pits, sumps and working faces.
Features
- Elevation-trading demand of 22 cm3/rev at 150 bar (7 kW) pushes 850 litres a minute to real height.
- Open flow of 850 L/min, shutting off at 47 m (67 PSI) serves deep pits and high banks directly.
- Deep-pit high-head cast-iron hydraulics with an open non-clog impeller are built for elevation.
- Waterways of 80 mm with 6 m self-priming suction connect to pit headers and bank lines.
- Reaction-steady 61 kg anchored weight steadies the pump under sustained high-head torque.
- Cast iron construction is selected to suit the listed liquid-transfer application.
- Covered by the 3 year Aussie Pumps pump warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What spherical particle size is accommodated through the open passage impeller across demanding site dewatering duties?
The open vane cast iron impeller on the Aussie Pumps Hydraulic High Pressure G3TMK-A/ST (G3TMK-A-ST-HYD22) clears dirty site runoff and solid debris up to 16 mm in diameter without stalling the shaft.
How does the self priming casing pull liquid from low collection basins across routine site transfer duties?
No foot valve is needed on the G3TMK A ST HYD22 with a self-priming lift of up to 6 m once the casing is filled.
What warranty protection and replacement parts support back this equipment in Australia through regional Australian dealer networks?
Covered by the 3 year Aussie Pumps pump warranty with factory spare parts support.
What total liquid discharge rate and vertical pressure elevation are developed under full operating speed?
Discharge performance for the G3TMK-A/ST HYD22 yields an open flow volume of approximately 850 L/min and reaches a maximum shut-off elevation of approximately 47 m.
What auxiliary hydraulic oil flow and pressure are required to spin the wet end during dust suppression operations?
Hydraulic oil flow from the carrier machine powers the motor on the G3TMK-A/ST (G3TMK-A/ST HYD22), providing self-contained pumping without on-board petrol or diesel engines.
